Made in North America and featuring a full 6 cu.ft. storage capacity

Slim counter height dimensions

• Less than 24" wide

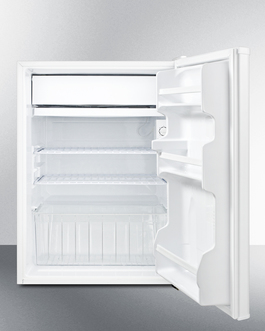

Adjustable shelves

• Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Reversible door

• User-reversible door swing for added flexibility

Adjustable thermostat

• Dial thermostat for easy temperature management

Door storage

• Store tall bottles and condiments right on the door for convenient access

Fruit and vegetable crisper

• Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Interior light

• Automatically illuminates when you open the door

Manual defrost

• Static cooling system

Residential unit

• Meets current DOE standards for energy use in residential applications

Fully finished cabinet

• Allows the unit to be used freestanding

100% CFC free

• Environmentally friendly design without ozone-damaging chemicals

Exterior
DL2 Temperature Logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	TT Thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
LHD Door reversal to left hand swing	Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 Temperature Logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac	KEYPAD Battery-powered keypad lock installed for keyless security

Overview
Height of Cabinet	33.5" (85 cm)
Height to Hinge Cap	33.5" (85 cm)
Width	23.75" (60 cm)
Depth	26.0" (66 cm)
Depth with door at 90°	48.25" (123 cm)
Capacity	6.0 cu.ft. (170 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Energy Usage/Year	265.0kWh/year
Voltage/Frequency	115 V AC/60 Hz
Weight	99.0 lbs. (45 kg)
Shipping Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years

Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	22.5" (57 cm)
Refrigerator - Interior Width	20.75" (53 cm)
Refrigerator - Interior Depth	19.5" (50 cm)
Refrigerator - Shelf Type	Wire
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	6.25" (16 cm)
Freezer - Interior Width	20.75" (53 cm)
Freezer - Interior Depth	19.5" (50 cm)
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	3.0 oz.
High Side PSI	235.0
Low Side PSI	140.0
Level Legs	2
