Model #:
KFGG504KPS
Color:
Stainless Steel with PrintShield™ Finish

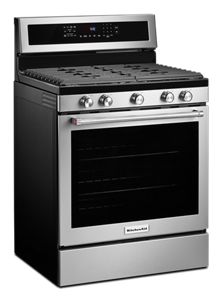

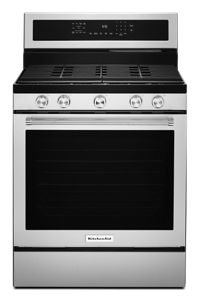

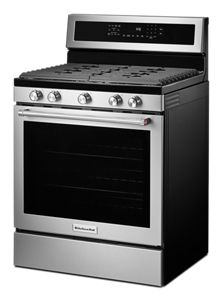

30-Inch 5-Burner Gas Convection Range with PrintShield™ Finish
30-Inch 5-Burner Gas Convection Range with PrintShield™ Finish

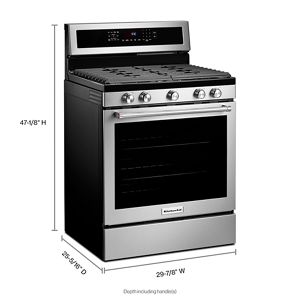

Dimensions
Width: 29.87
Height: 36
Depth: 25.43
Color
Stainless Steel with PrintShield™ Finish
Features

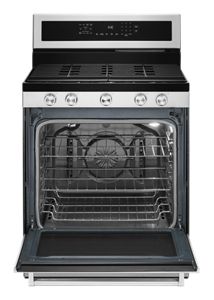

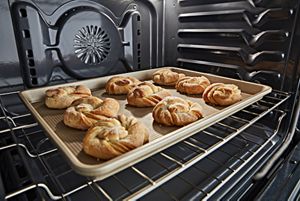

Even-Heat™ True Convection
- features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

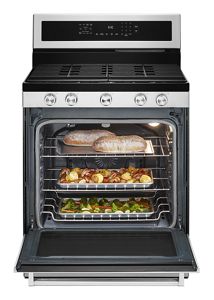

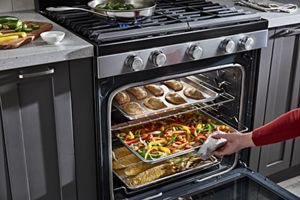

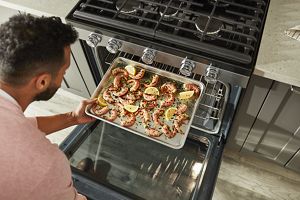

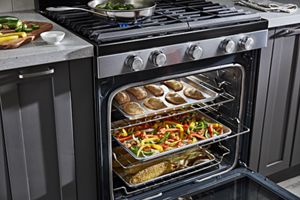

- provides a large cooking capacity that’s perfect for multiple dishes at once.

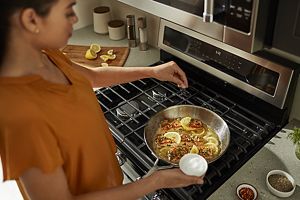

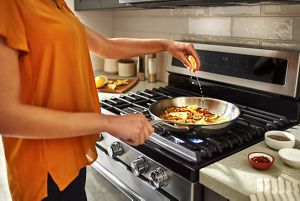

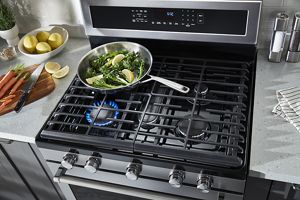

- provides the perfect range of cooking power from 18,000 to 5,000 BTU, so you can go from a rolling boil to a delicate simmer, plus an 8,0000 BTU oval burner is ideal for use with a grill plate or griddle (not included).

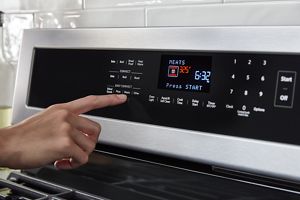

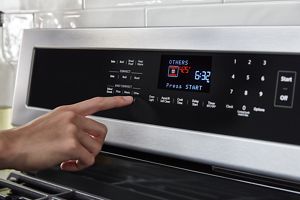

- Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
- adds additional storage space that’s perfect for pots, pans and baking sheets.
- covers up the baking element, making it easy to wipe away spills
- Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
- resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up the kitchen.
Product Description

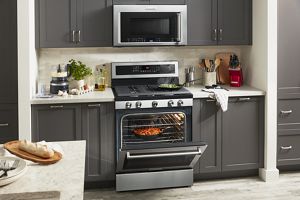

This versatile gas freestanding range produces flawless cooking results with Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature. The cooktop has 5 burners that provide the perfect range of cooking power. Stainless Steel with PrintShield™ Finish resists smudges and fingerprints.
Rebates
Craft Your Dream Kitchen and unlock Rebates up to $3000 - Craft Your Dream Kitchen and unlock Rebate...
Craft Your Dream Kitchen and unlock Rebates up to $3000 on all KitchenAid major appliances via a prepaid card by mail.
Start Date: 07/01/2025
End Date: 12/31/2025
Specification
| Certifications | |
| ADA Compliant | No |
| CUL | No |
| UL | Yes |
| Prop65 | Standard |
| Controls | |
| Display Color | Blue |
| Cooktop Details | |
| Auto Re-Ignition | No |
| Cooktop Control Knob Type | Metal |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Electronic |
| Total Gas Btus - Cooktop | 55,500 |
| Cooktop Control Knob Color | Stainless Steel |
| Cooktop Surface Color | Black |
| Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Cooktop Configuration | All Burners |
| Fuel Type | Gas |
| LP Convertible | Yes - Kit Included |
| Oven Automatic Shut-Off | Yes |
| Oven Configuration | Single Oven |
| Oven Light Switch Location | Oven Control |
| Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Easy Convect Baked Goods; Easy Convect Meats; Easy Convect Pizza; Energy Save Mode; Keep Warm Setting; Proofing; Sabbath Mode; Start Time; Stop T |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Freestanding |
| Range Drawer Type | Storage Drawer |
| Range Type | Freestanding |
| Dimensions | |
| Depth Closed Excluding Handles | 25.438 |
| Depth Closed Including Handles | 27.875 |
| Oven Interior Depth | 20.625 |
| Oven Interior Height | 20.125 |
| Oven Interior Width | 24.125 |
| Carton Depth | 29 inches |
| Carton Height | 48.75 inches |
| Carton Width | 32 inches |
| Gross Weight | 207 pounds |
| Net Weight | 190 pounds |
| Electrical | |
| Power Cord Included | Yes |
| Element/Burner Details | |
| Center Rear Element-Burner Power | 8,000 BTU |
| Center Rear Element-Burner Type | Oval Burner |
| Cooktop Element Style | Sealed Burners |
| Left Front Element-Burner Power | 18,000 BTU |
| Left Front Element-Burner Type | Power |
| Left Rear Element-Burner Power | 9,500 BTU |
| Left Rear Element-Burner Type | Standard |
| Number Of Cooking Element-Burners | 5 |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Front Element-Burner Type | Standard |
| Right Rear Element-Burner Power | 5,000 BTU |
| Right Rear Element-Burner Type | Simmer |
| Exterior Details | |
| Door Type | Metal & Glass |
| Oven Control Knob Type | Metal |
| Oven Control Location | Backguard |

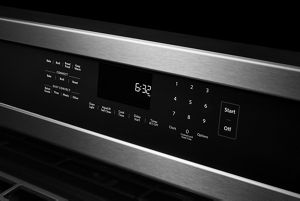

| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Oven Control Knob Color | Stainless Steel |
| Grate Details | |

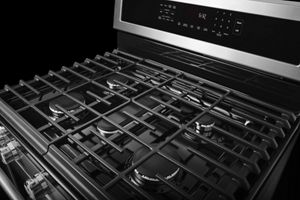

| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
| Number Of Grates | 2 |
| Oven Details | |
| Bake Element Power | 18,000 BTU |
| Broiler Element Power | 11,000 BTU |
| Broiler Location | Top of Oven |
| Convection Element Power | 900 |
| Convection Element Type | True Bow Tie |
| Convection Functions | Bake; Broil; Roast |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Natural Gas Convertible | Yes |
| Number Of Oven Lights | 1 |
| Number Of Oven Racks | 3 |
| Number Of Rack Guides | 7 |
| Oven Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Max Capacity, 2 Standard |
| Total Gas Btus - Ovens | 29,000 |
| Interior Color | Grey |
