Model #:

JGP5536DLBB

Color:

Black

Reviews:

5 (3)

5 out of 5

3 reviews customer ratings

5 Star	66.67% Complete	66.67%
4 Star	33.33% Complete	33.33%
3 Star	0% Complete	0%
2 Star	0% Complete	0%
1 Star	0% Complete	0%

See all 3 reviews

GE® 36" Built-In Gas on Glass Cooktop with 5 Burners and Dishwasher Safe Grates

Price

We might not be able to fulfill your order for the quantity requested

Qty

Dimensions

Width: 36

Height: 3 7/8

Depth: 21 1/4

Color

Black

Features

36" Cooktop with 5 Burners

Enjoy ultimate cooktop flexibility and more cooking space with 5 sealed burners

Gas on Glass Cooktop

Sleek and easy to clean cooking surface

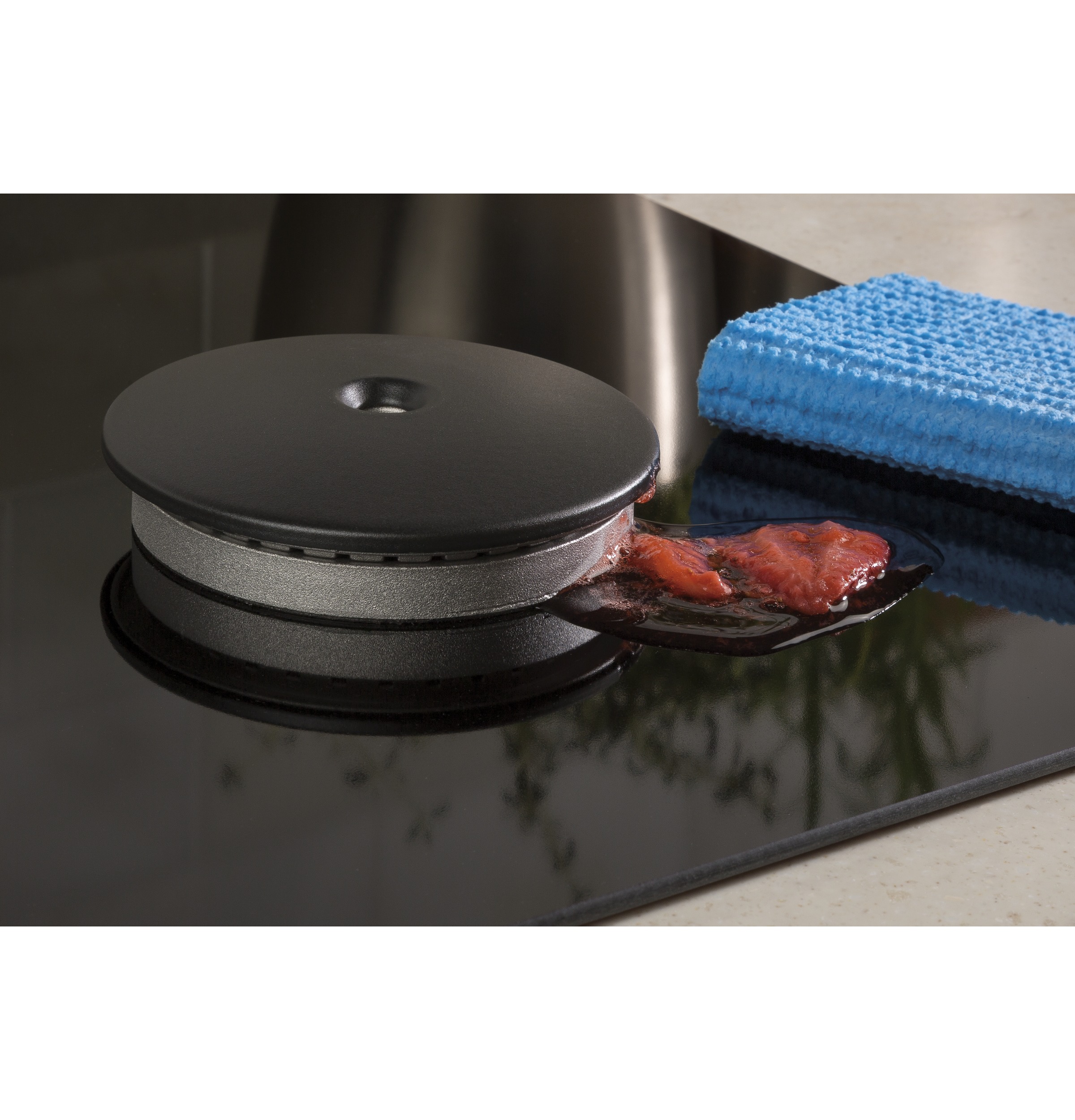

Spend Less Time Cleaning Up

Sealed cooktop burners contain spills and make cleaning quick and easy

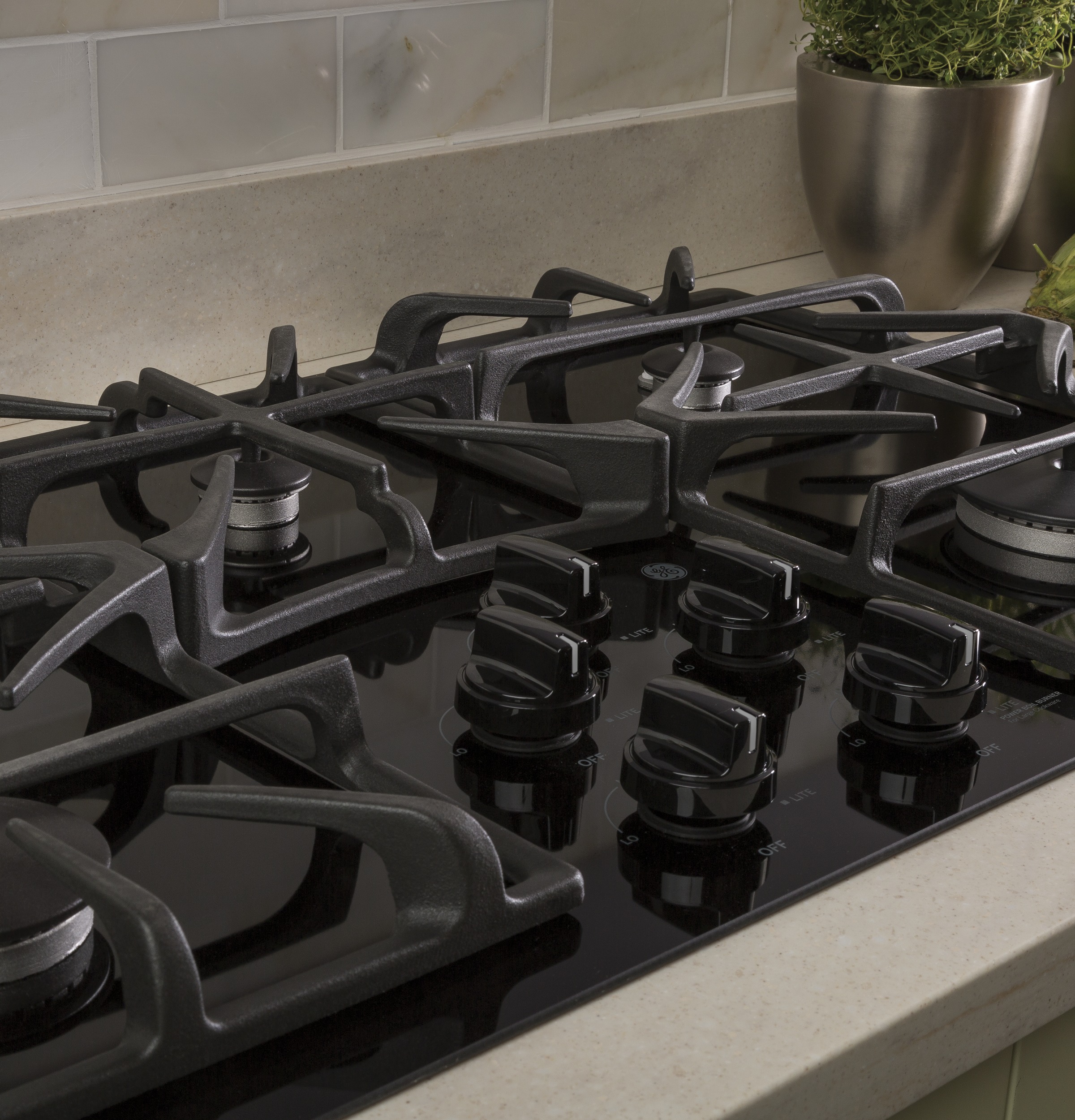

Maximize Your Cooking Space

Continuous cast iron grates provide more room for large cookware

Dishwasher-Safe Grates

Heavy-duty grates are easy to clean in the dishwasher

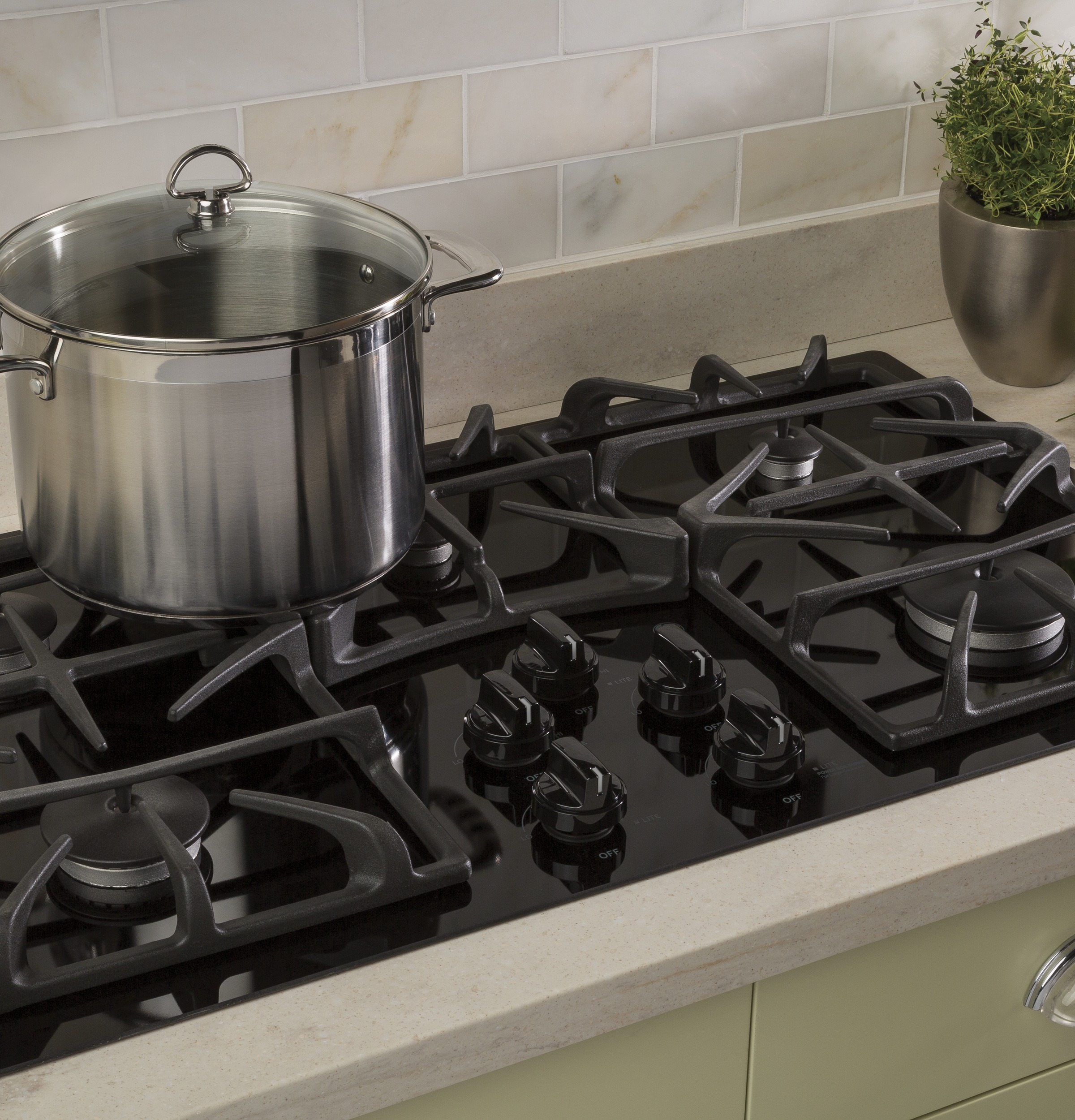

Start Cooking Faster with Power Boil

15,000 BTU Power Boil burner delivers intense heat for faster boiling

Precise Simmer Burner

Protect delicate foods with low, even heating

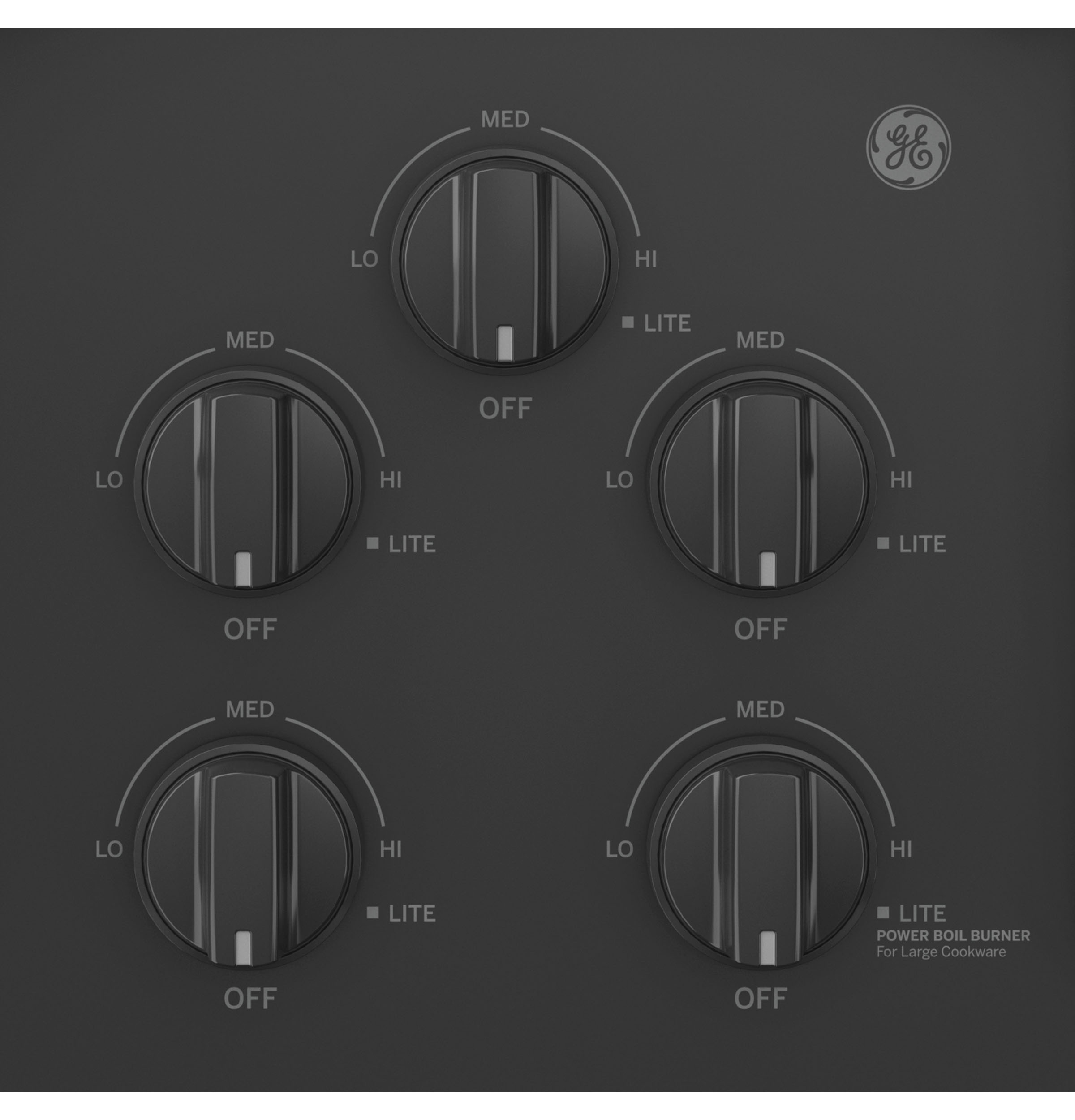

Control Lock Capability

Protects against unintended activation

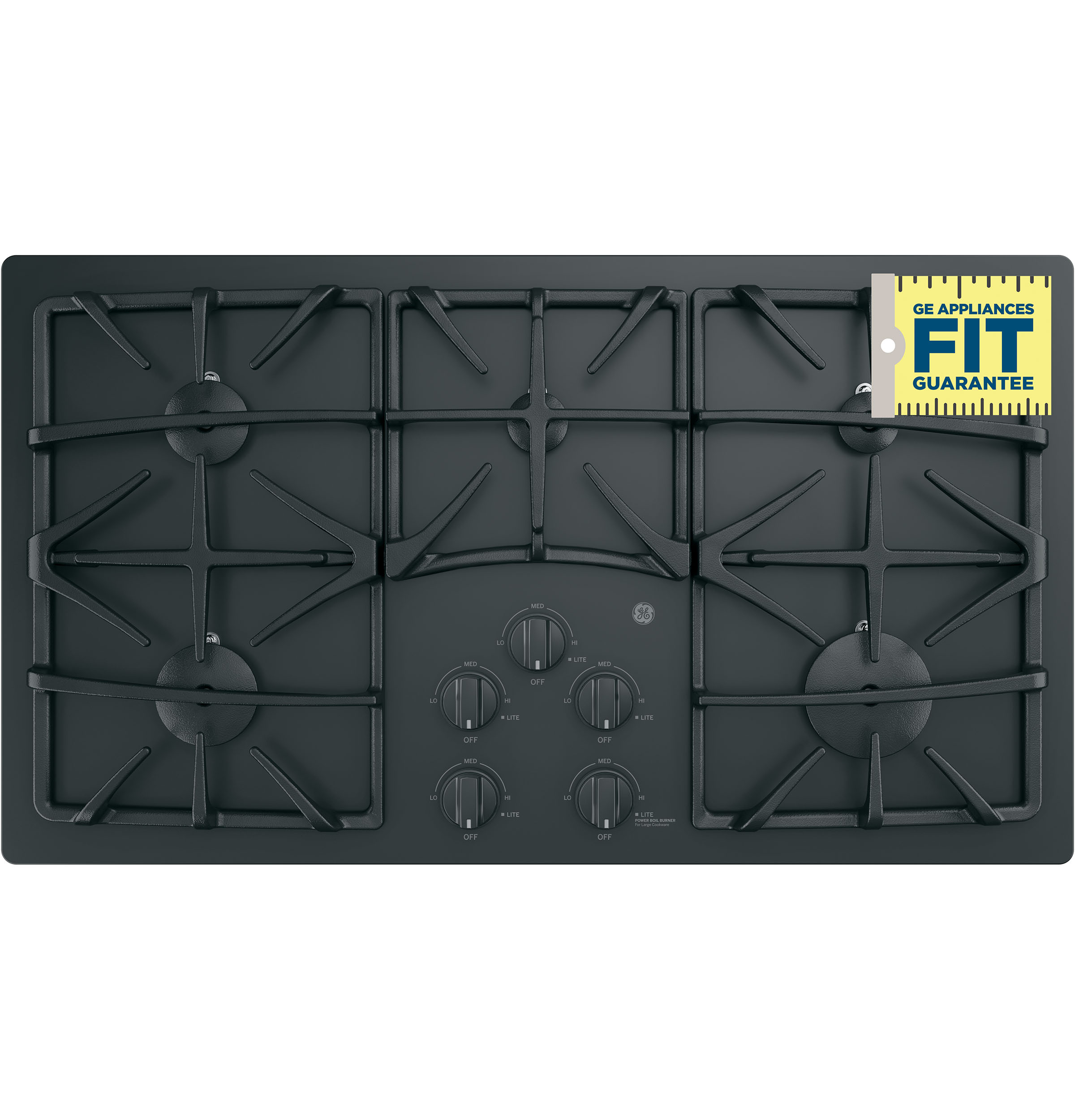

Fit Guarantee

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

Product Description

GE® 36" Built-In Gas on Glass Cooktop with 5 Burners and Dishwasher Safe Grates

Specification

ACCESSORIES
LP Conversion Kit	Included
Cooktop Cleaning	Cream (WB64X5027)

APPEARANCE
Color Appearance	Black
Cooktop Burner Grate Color	Matte Black
Control Knobs	Dishwasher Safe, Gloss Black

FEATURES
Cooktop Burner Type	5 Sealed
Valves (Degree of Turn)	270
Burner - Right Rear	6,000 BTU
Burner - Right Front	15,000 BTU Power Boil
Fuel Type	Natural Gas
Control Location	Front Center
Cooktop Type	Continuous Grates
Ignition System	Electronic
Burner - Center	6,000 BTU
Cooktop Surface	Black, Gas-On-Glass Ceramic
Burner - Left Rear	9,100 BTU
Control Type	Knob
Cooktop Burner Grate Material	Deluxe Cast
Cooktop Burner Grate Features	Continuous Grates, Dishwasher Safe, Matte Black
Burner - Left Front	11,000 BTU
Product Type	Cooktop

FILTER
App Filter - Cabinet Width	Cooking 36 in.
App Filter - Cooktop Type	Continuous Grates
App Filter - Fuel Type	Gas
App Filter - Control Type	Rotary knobs

POWER / RATINGS
Burner BTU Ratings (000's/BTU) - LP Gas	(1) 13.0; (1) 9.1; (1) 8.1; (2) 6.0
Burner BTU Ratings (000's/BTU) - Natural Gas	(1) 15.0; (1) 11.0; (1) 9.1; (2) 6.0
Volts/Hertz/Amps	120V; 60Hz; 5A

WARRANTY
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance

WEIGHTS & DIMENSIONS
Overall Height	3.875 in
Cutout Depth (in)	19-1/8
Cabinet Width	36 in
Approximate Shipping Weight	56 lb
Overall Width	36 in
Net Weight	49 lb
Cutout Width (in)	33-7/8
Overall Depth	21.25 in

Documentation

Quick Specs

Installation Instructions

From the Manufacturer

Reviews (3)

GE® 36" Built-In Gas on Glass Cooktop with 5 Burners and Dishwasher Safe Grates

Features

36" Cooktop with 5 Burners

Enjoy ultimate cooktop flexibility and more cooking space with 5 sealed burners

Gas on Glass Cooktop

Sleek and easy to clean cooking surface

Spend Less Time Cleaning Up

Sealed cooktop burners contain spills and make cleaning quick and easy

Maximize Your Cooking Space

Continuous cast iron grates provide more room for large cookware

Dishwasher-Safe Grates

Heavy-duty grates are easy to clean in the dishwasher

Start Cooking Faster with Power Boil

15,000 BTU Power Boil burner delivers intense heat for faster boiling

Precise Simmer Burner

Protect delicate foods with low, even heating

Control Lock Capability

Protects against unintended activation

Fit Guarantee

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
