Model #:
JGP5530SLSS
Color:
Stainless Steel

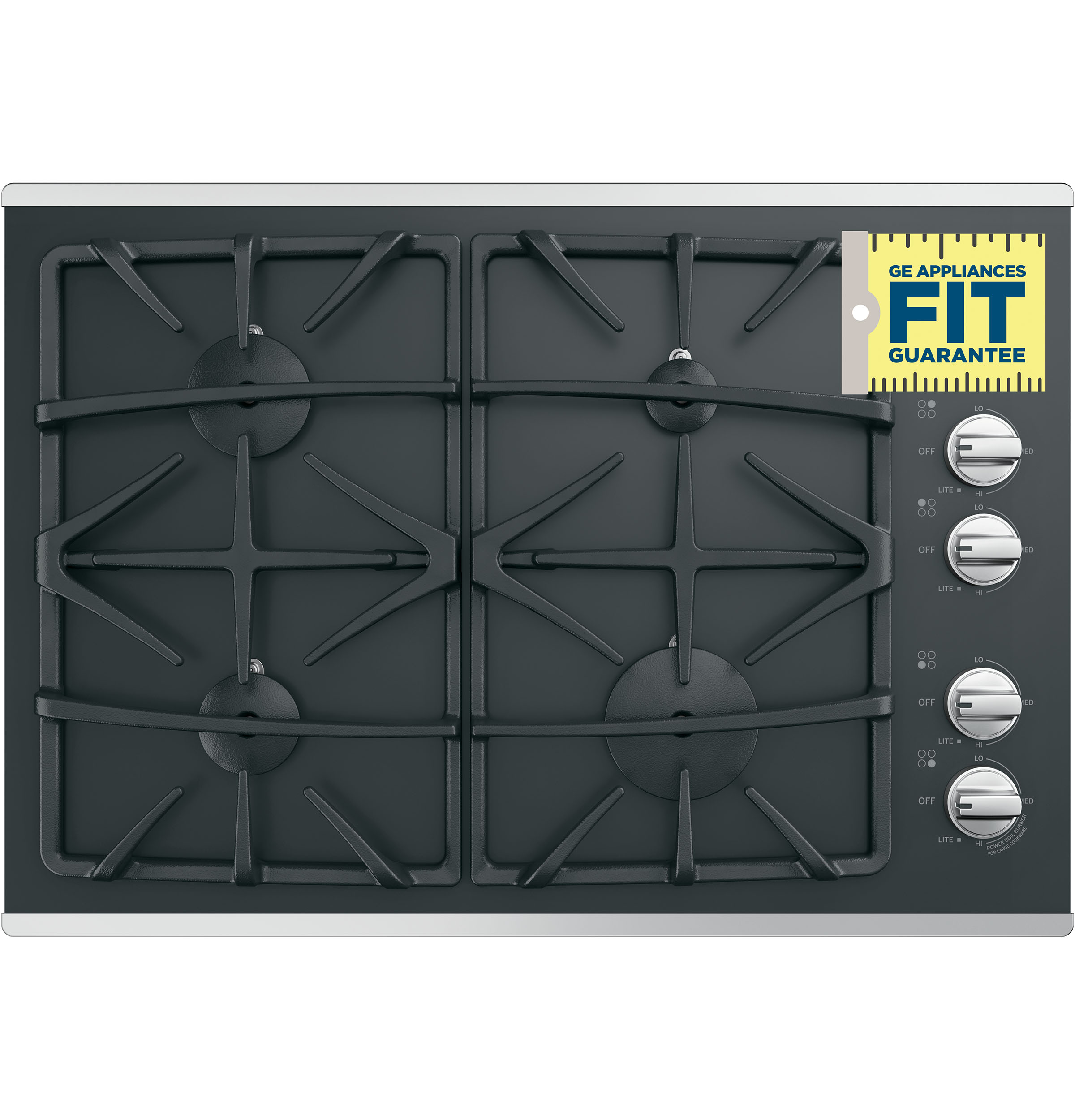

GE® 30" Built-In Gas on Glass Cooktop with Dishwasher Safe Grates
GE® 30" Built-In Gas on Glass Cooktop with Dishwasher Safe Grates
Price
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 30
Height: 5 1/2
Depth: 21 1/4
Color
Stainless Steel
Related Items...
Model #:
JTD5000SNSS
GE® 30" Smart Built-In Self-Clean Convection Double Wall Oven with Never Scrub Racks
Model #:
JTS5000SNSS
GE® 30" Smart Built-In Self-Clean Convection Single Wall Oven with Never Scrub Racks
Model #:
JTD5000SNSS
GE® 30" Smart Built-In Self-Clean Convection Double Wall Oven with Never Scrub Racks
Model #:
JTS5000SNSS
GE® 30" Smart Built-In Self-Clean Convection Single Wall Oven with Never Scrub Racks
Features
Gas on Glass Cooktop
- Sleek and easy to clean cooking surface
- Sealed cooktop burners contain spills and make cleaning quick and easy
- Continuous cast iron grates provide more room for large cookware
- Heavy-duty grates are easy to clean in the dishwasher
- 15,000 BTU Power Boil burner delivers intense heat for faster boiling
- Protect delicate foods with low, even heating
- Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Product Description
GE® 30" Built-In Gas on Glass Cooktop with Dishwasher Safe Grates
Specification
| ACCESSORIES | |
| LP Conversion Kit | Included |
| Cooktop Cleaning | Cream (WB64X5027) |
| APPEARANCE | |
| Color Appearance | Stainless Steel |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | Dishwasher Safe, Stainless Steel Appearance |
| FEATURES | |
| Cooktop Burner Type | 4 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 6,000 BTU |
| Burner - Right Front | 15,000 BTU Power Boil |
| Fuel Type | Natural Gas |
| Control Location | Right Side |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Cooktop Surface | Black, Gas-On-Glass Ceramic |
| Burner - Left Rear | 11,000 BTU |
| Control Type | Knob |
| Cooktop Burner Grate Material | Deluxe Cast |
| Cooktop Burner Grate Features | Continuous Grates, Dishwasher Safe, Matte Black |
| Burner - Left Front | 9,100 BTU |
| Product Type | Cooktop |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Cooktop Type | Continuous Grates |
| App Filter - Fuel Type | Gas |
| App Filter - Control Type | Rotary knobs |
| POWER / RATINGS | |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 13.0; (1) 9.1; (1) 8.1; (1) 6.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 11.0; (1) 9.1; (1) 6.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Overall Height | 5.5 in |
| Cutout Depth (in) | 19-5/8 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 48 lb |
| Overall Width | 30 in |
| Net Weight | 42 lb |
| Cutout Width (in) | 28-1/2 |
| Overall Depth | 21.25 in |
Documentation
From the Manufacturer
GE® 30" Built-In Gas on Glass Cooktop with Dishwasher Safe Grates
Features
Gas on Glass Cooktop
- Sleek and easy to clean cooking surface
- Sealed cooktop burners contain spills and make cleaning quick and easy
- Continuous cast iron grates provide more room for large cookware
- Heavy-duty grates are easy to clean in the dishwasher
- 15,000 BTU Power Boil burner delivers intense heat for faster boiling
- Protect delicate foods with low, even heating
- Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
