Model #:
JGB660DPBB
Color:
Black

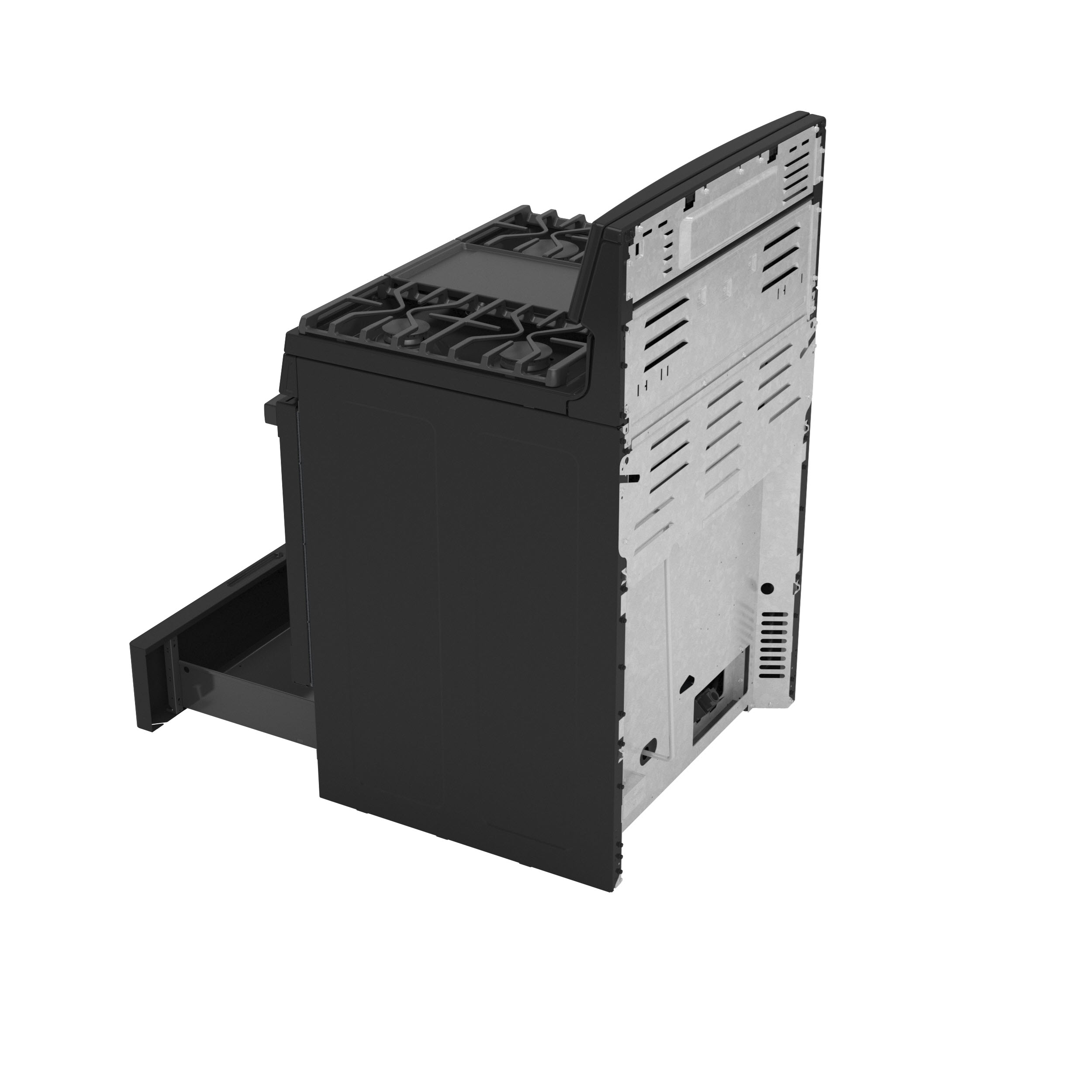

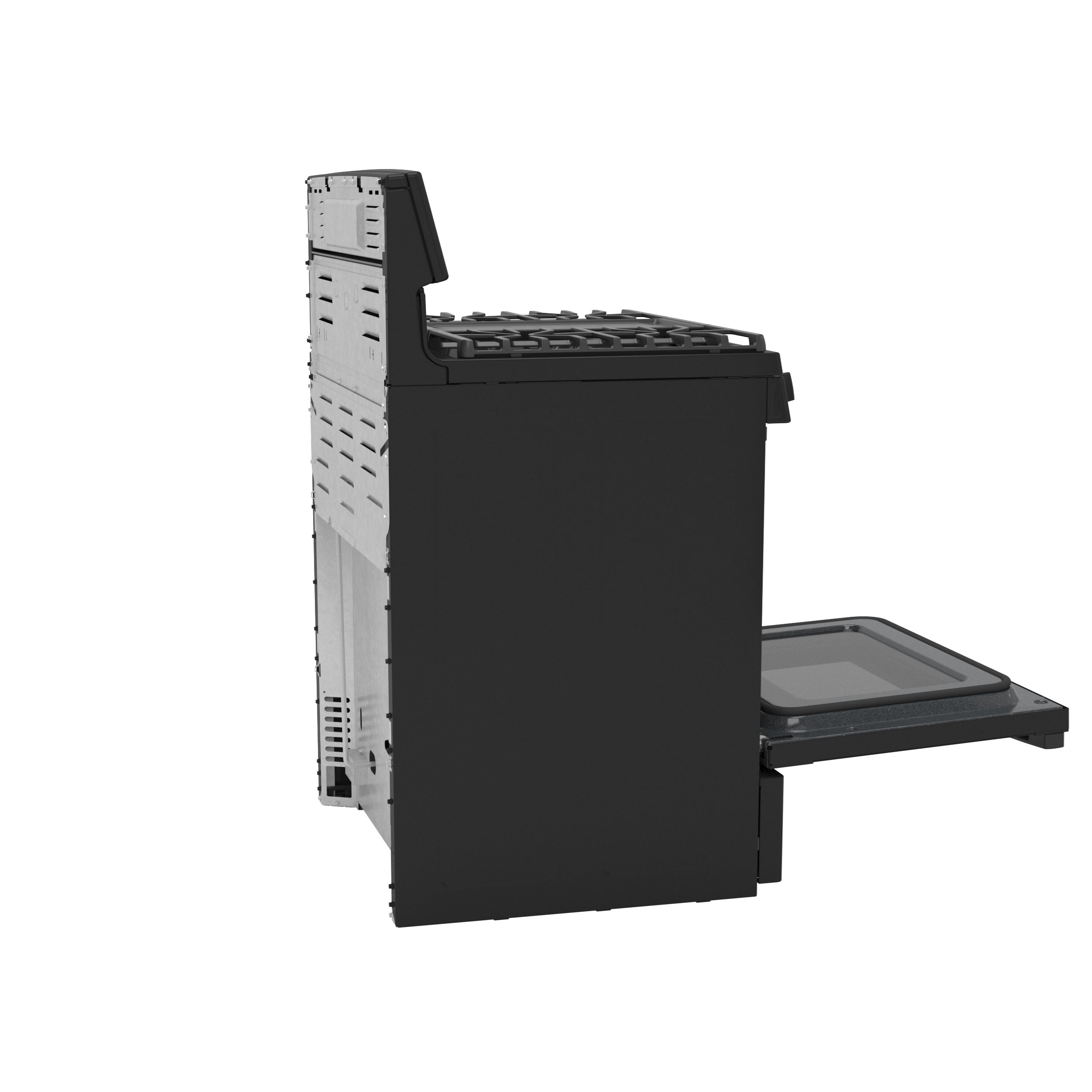

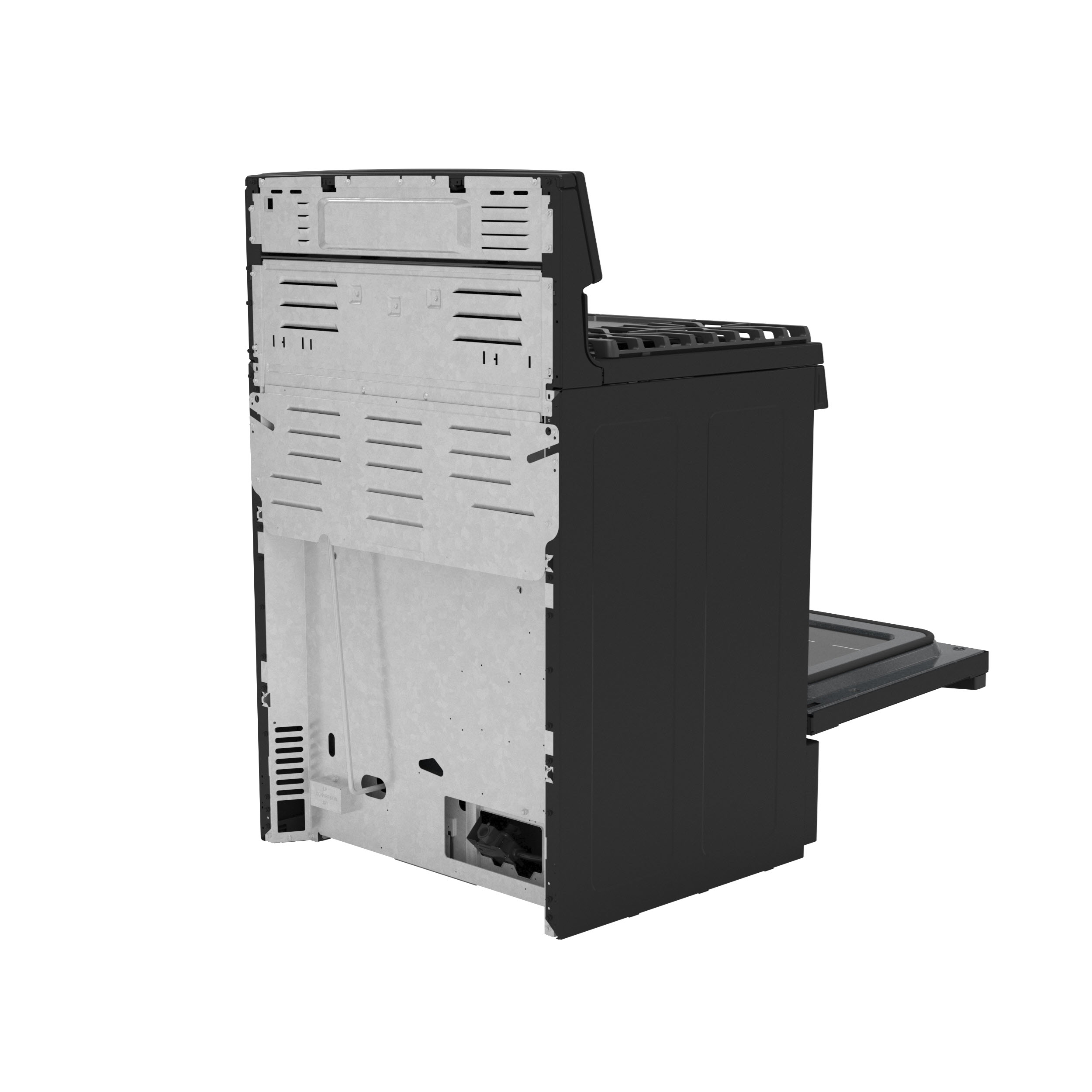

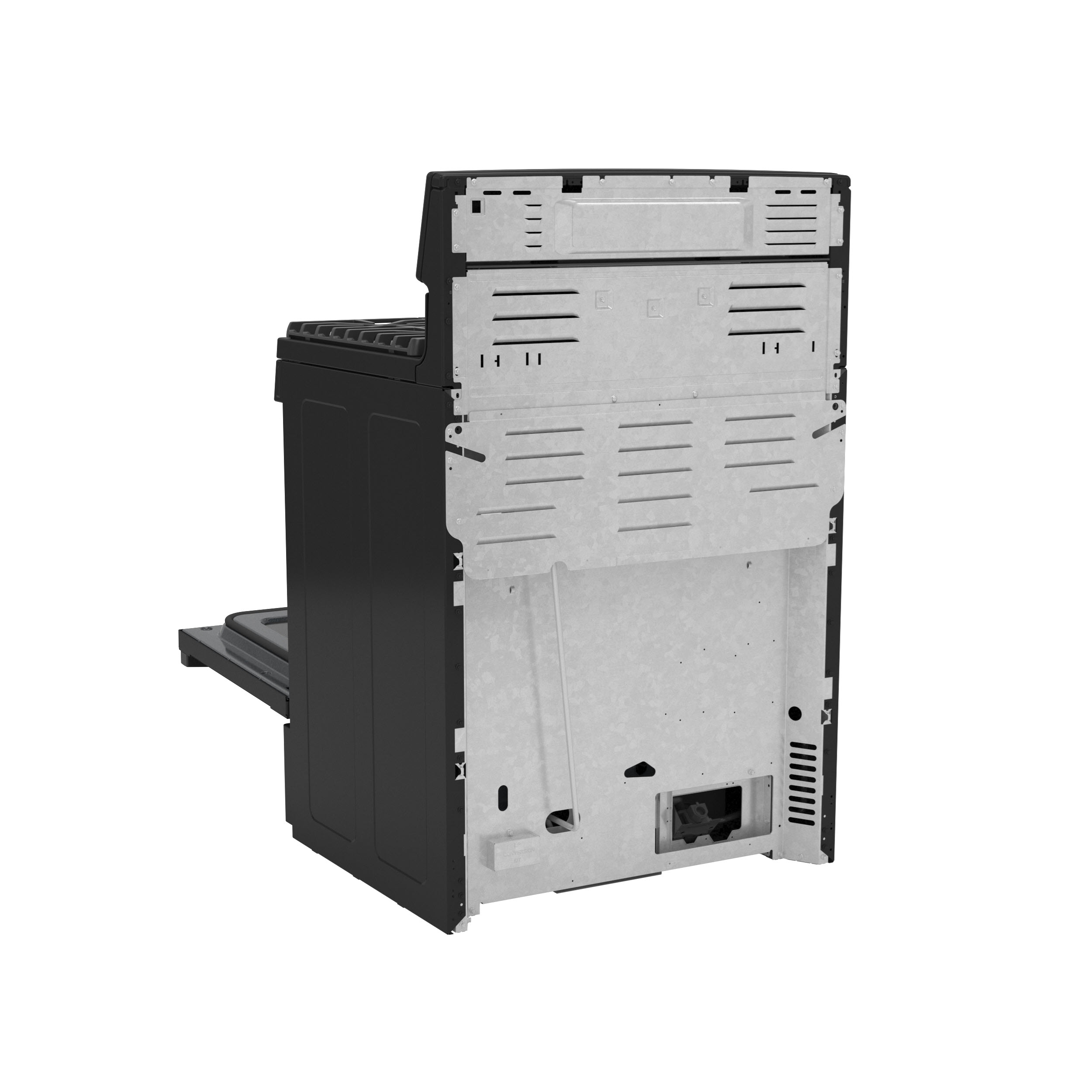

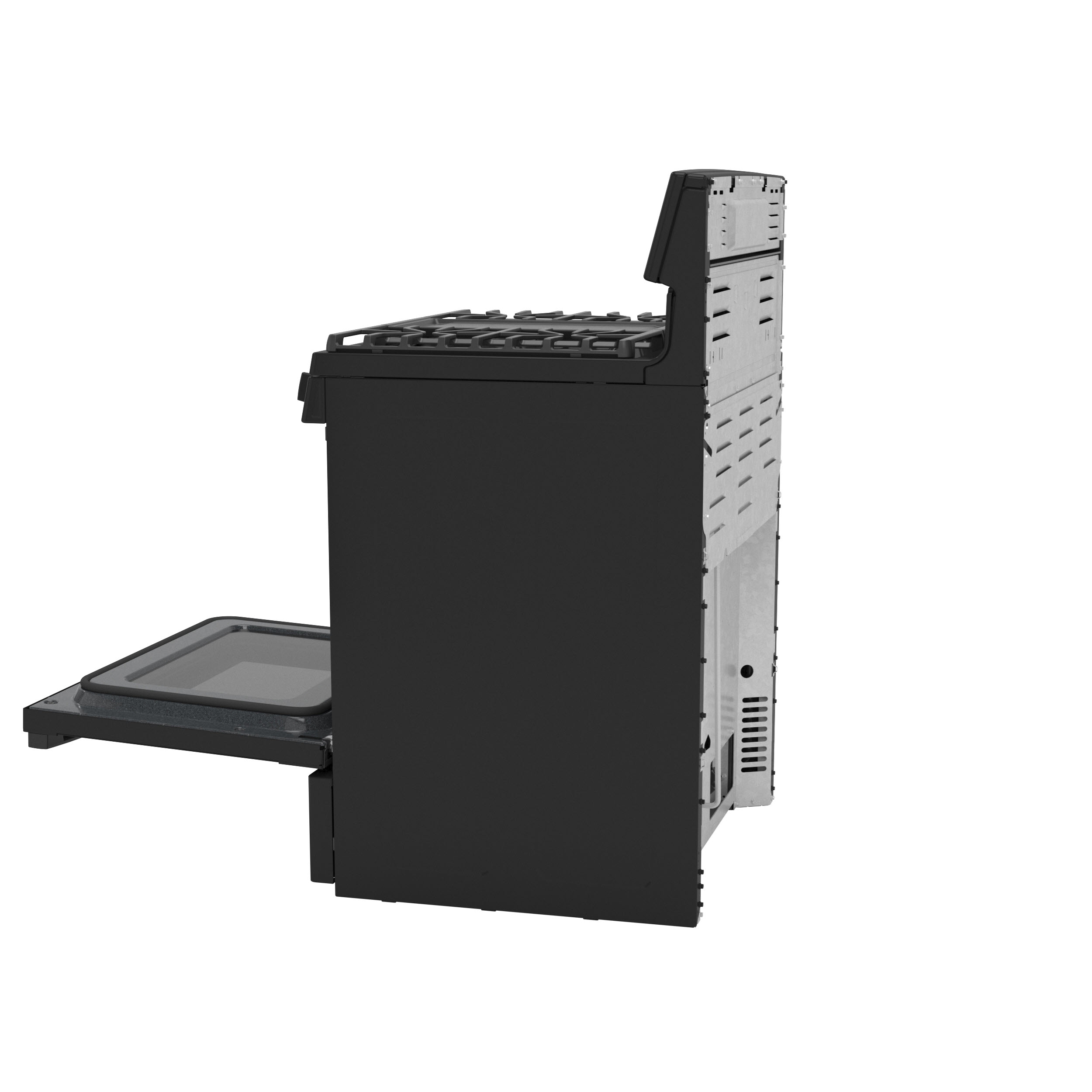

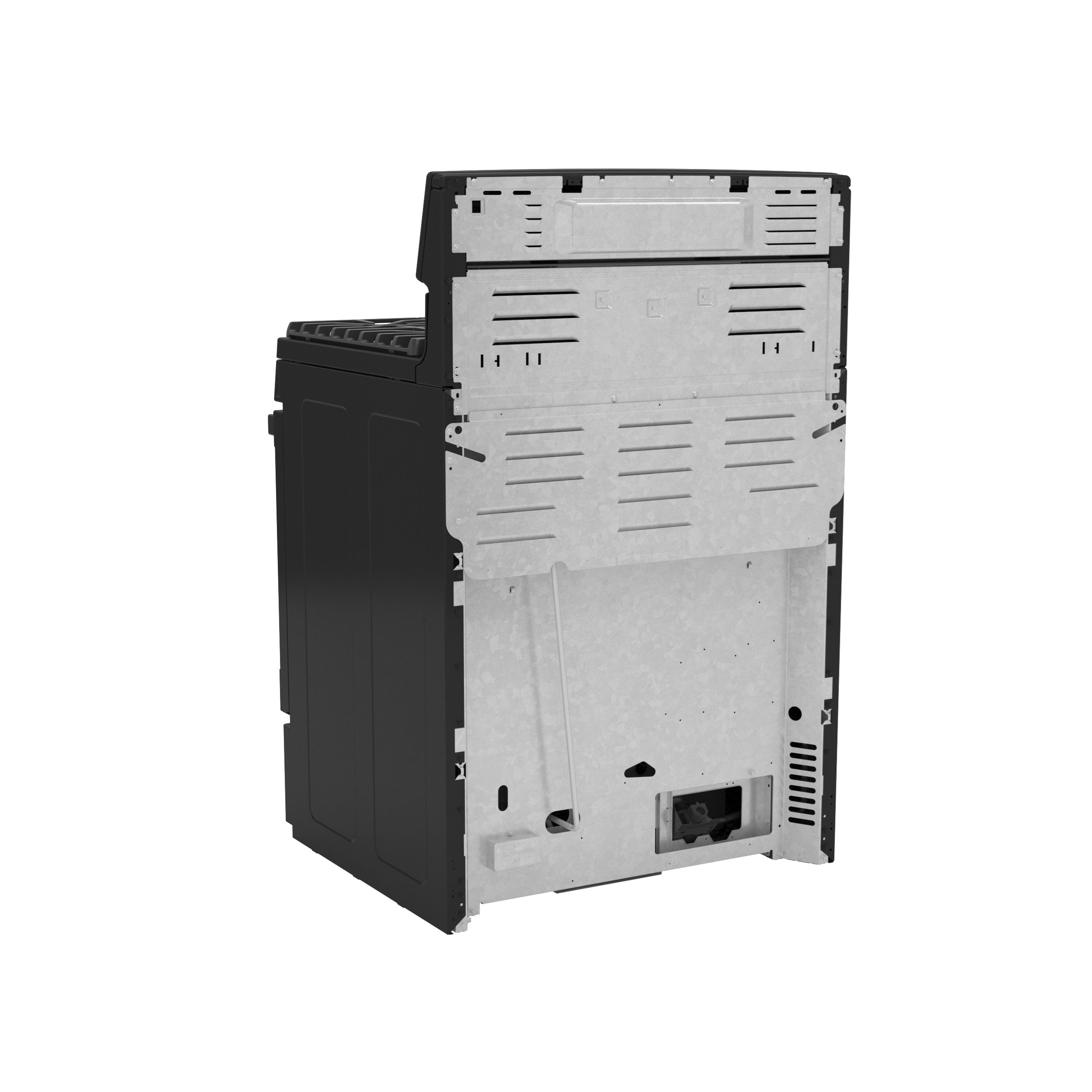

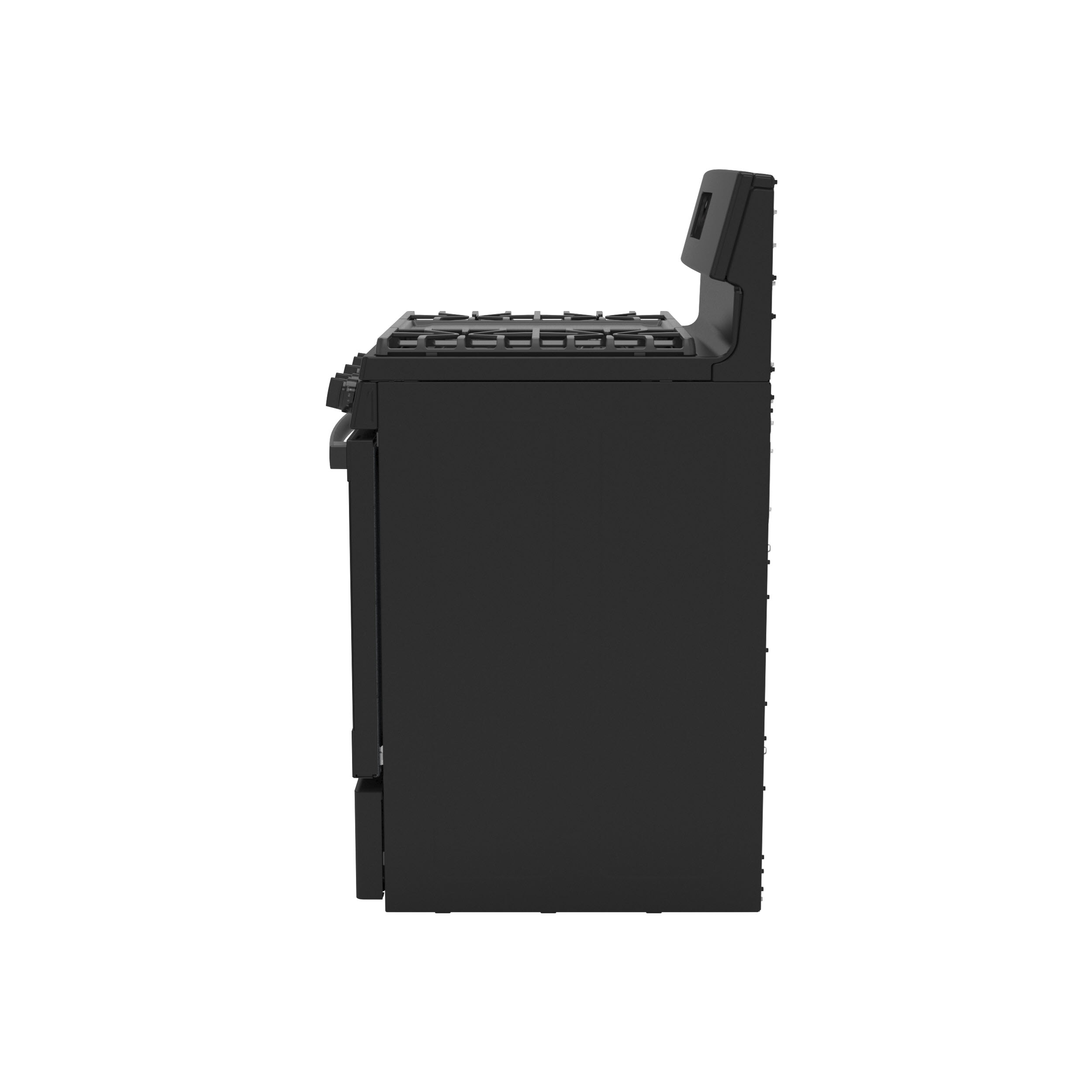

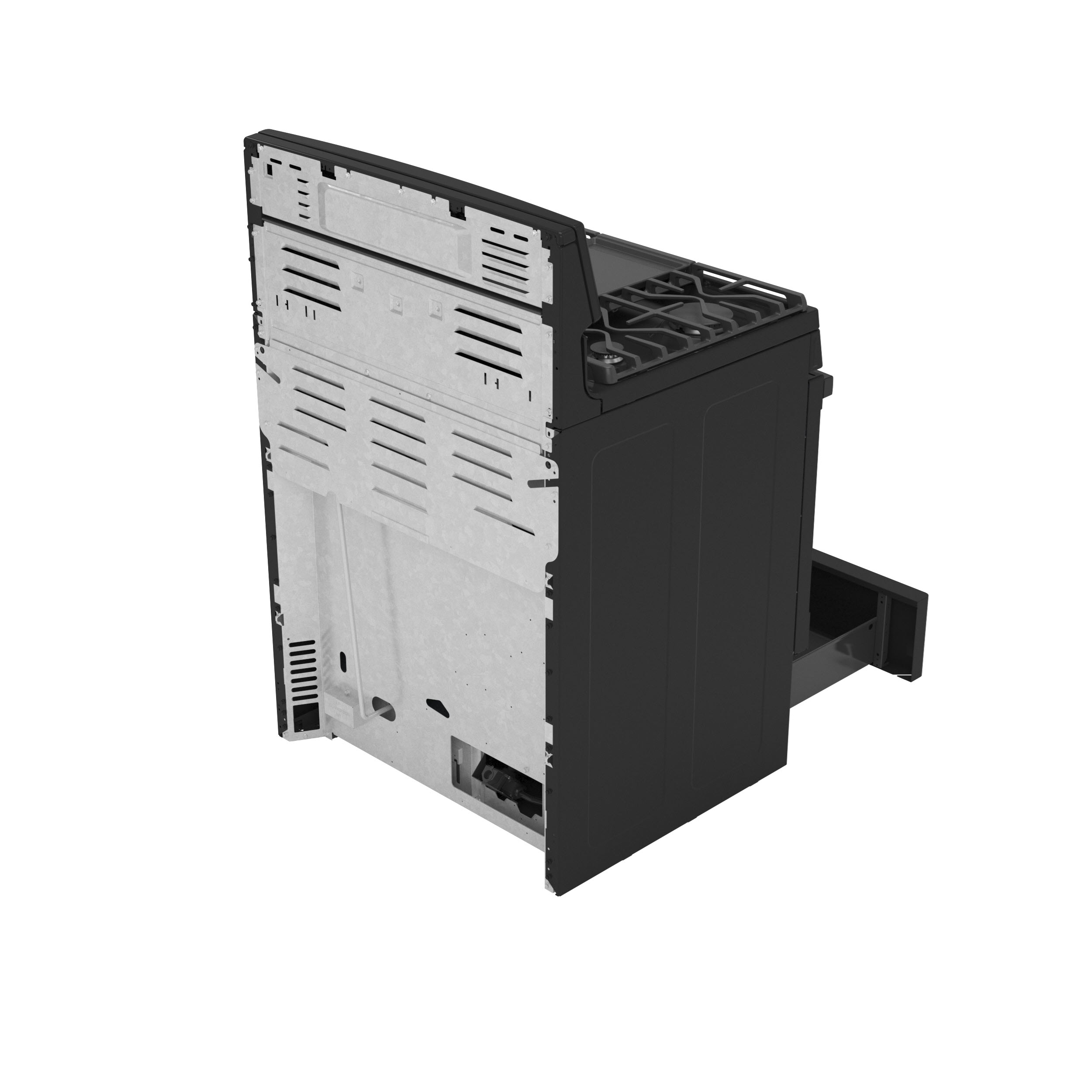

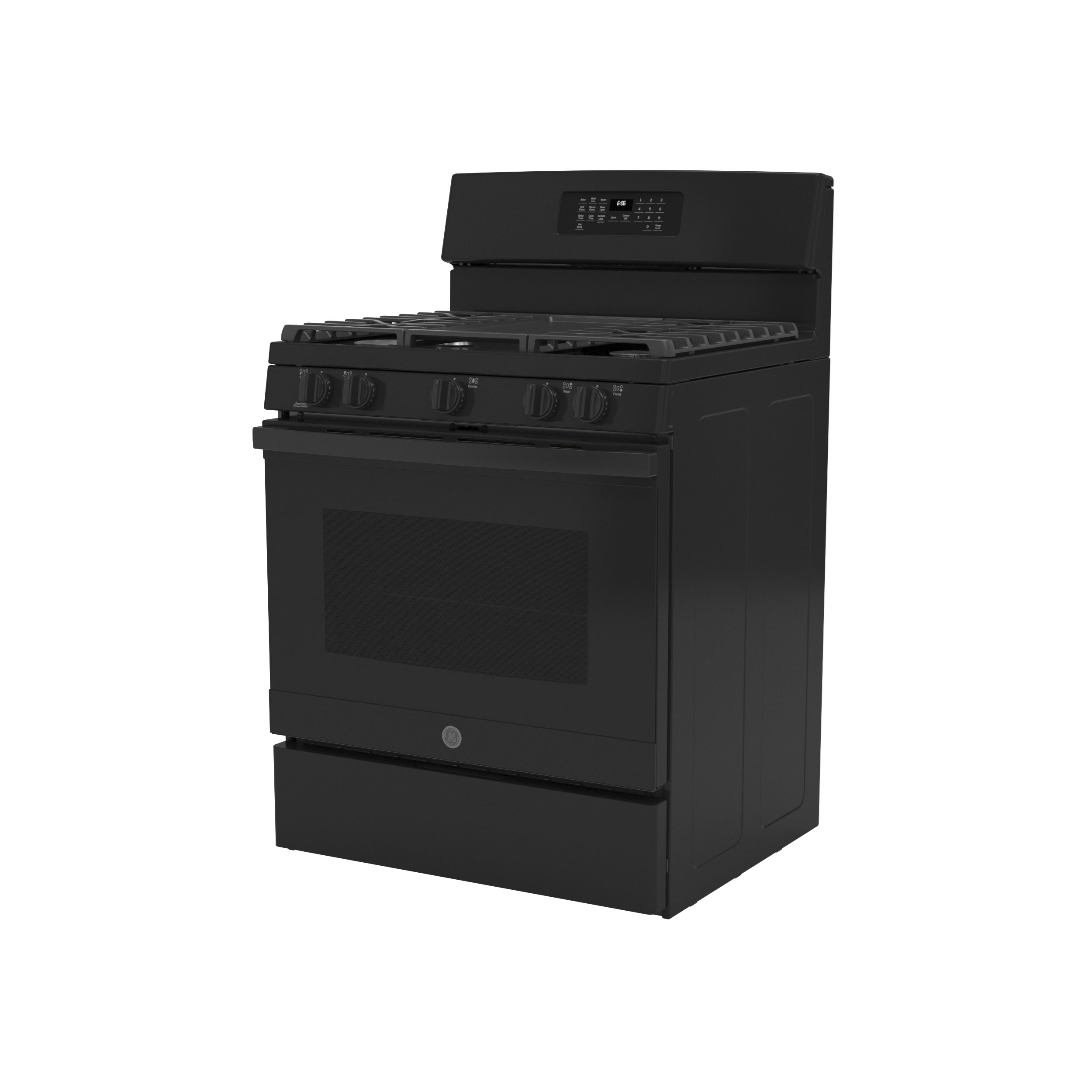

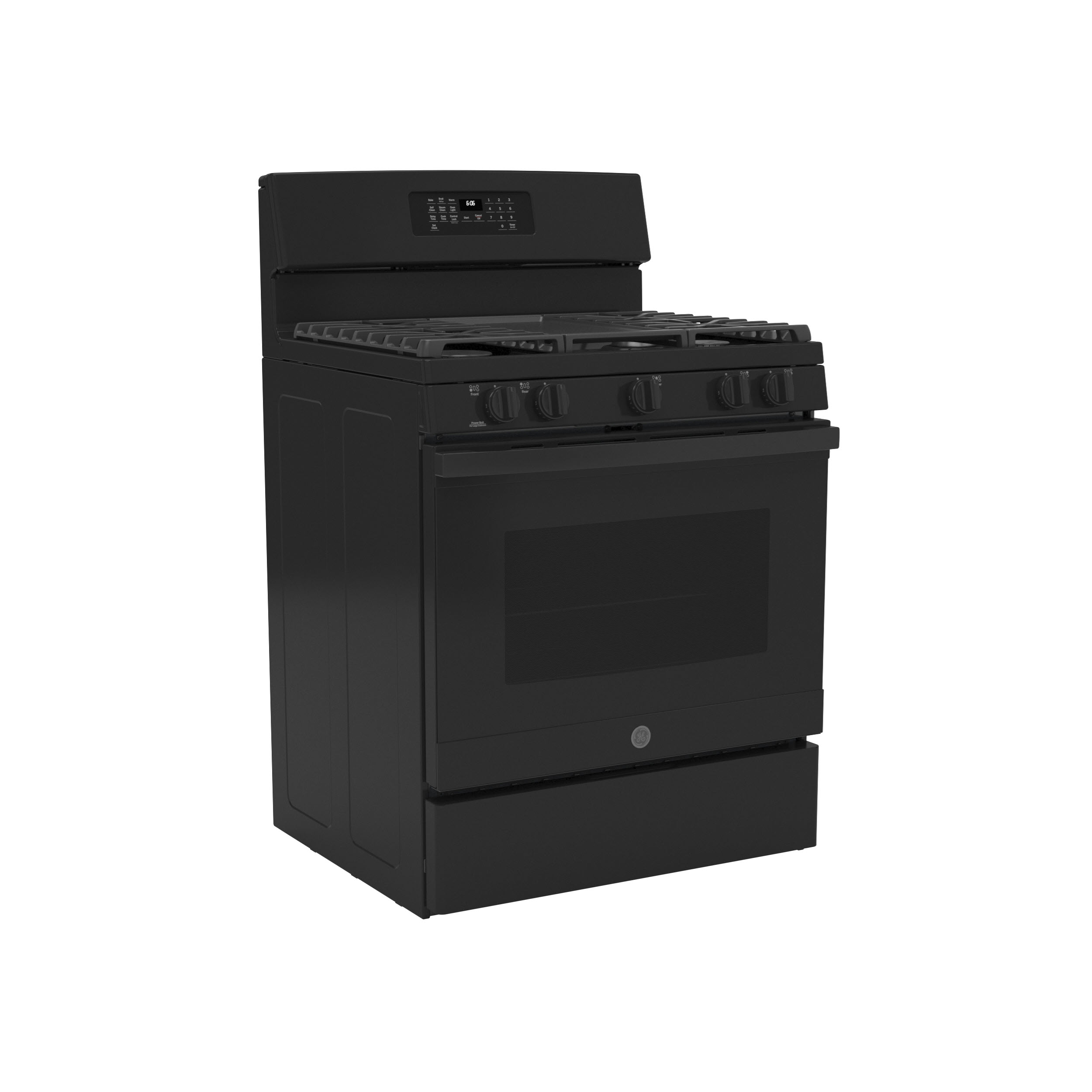

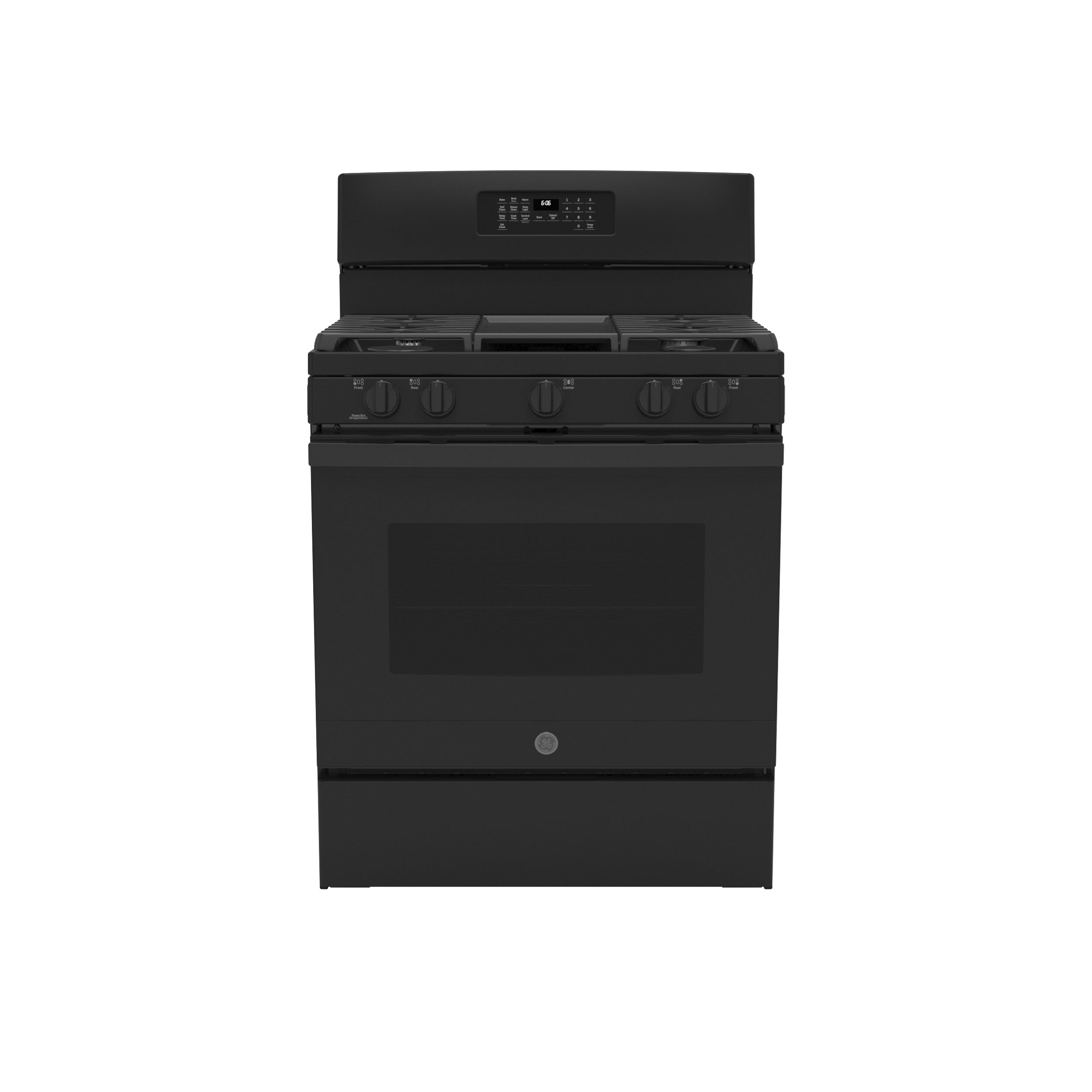

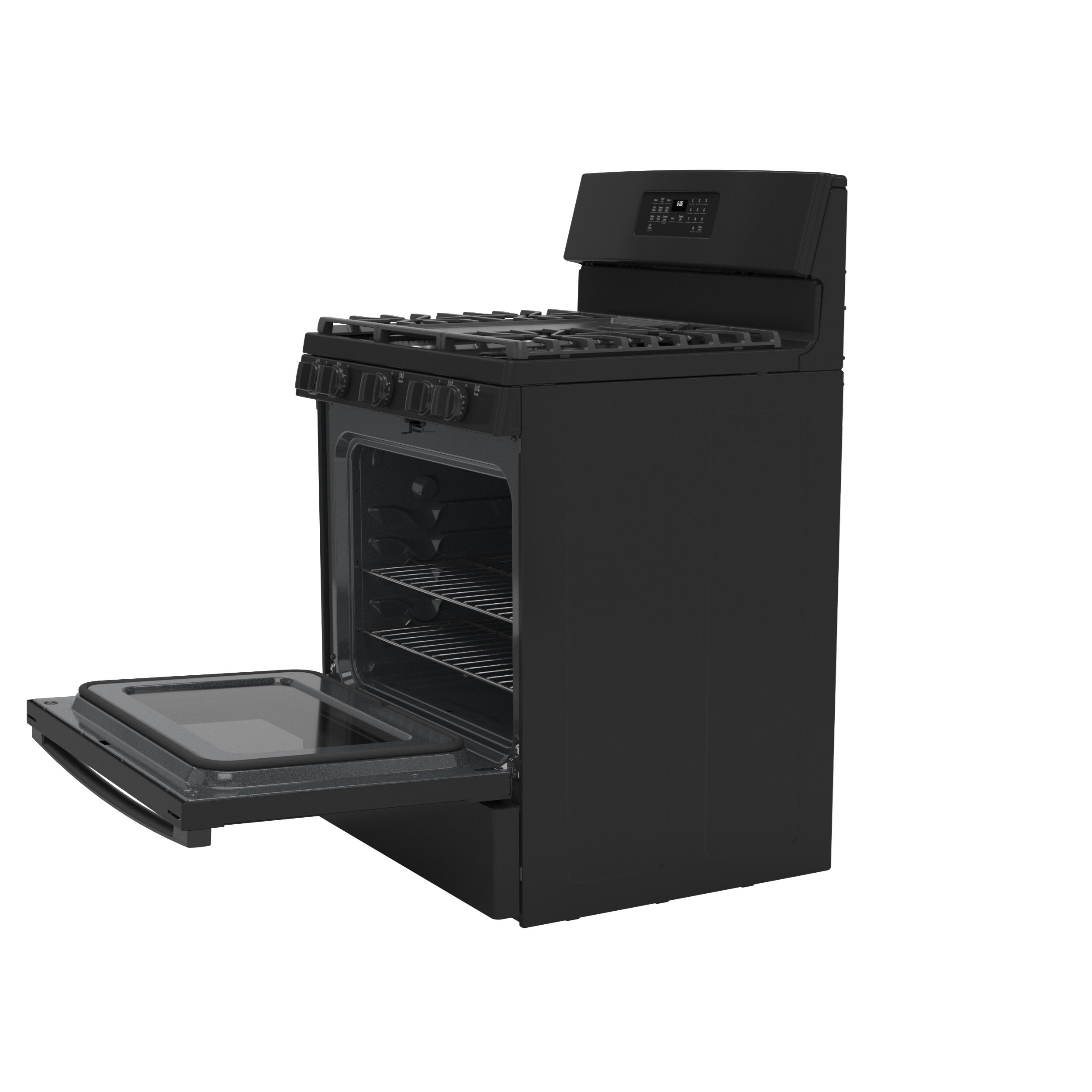

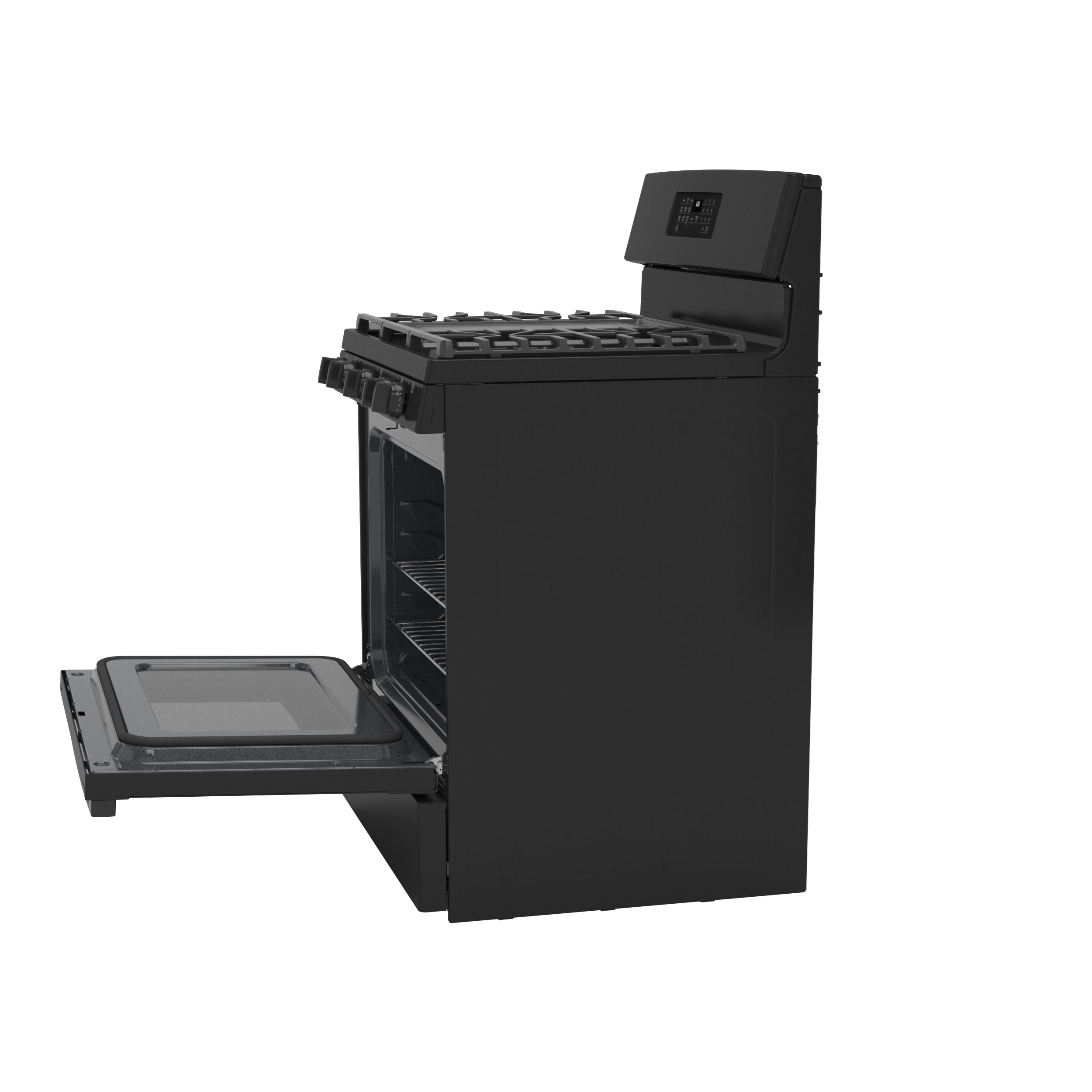

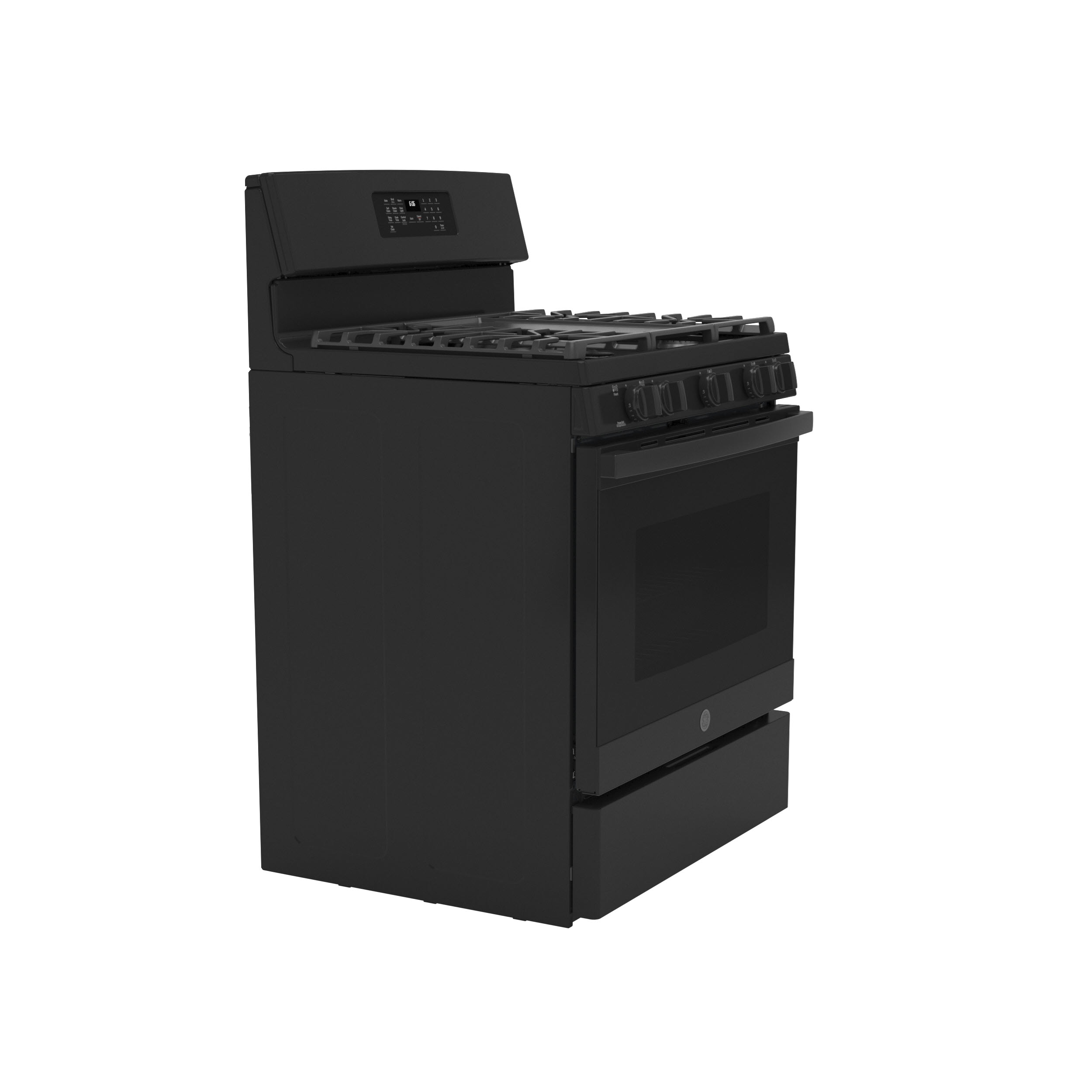

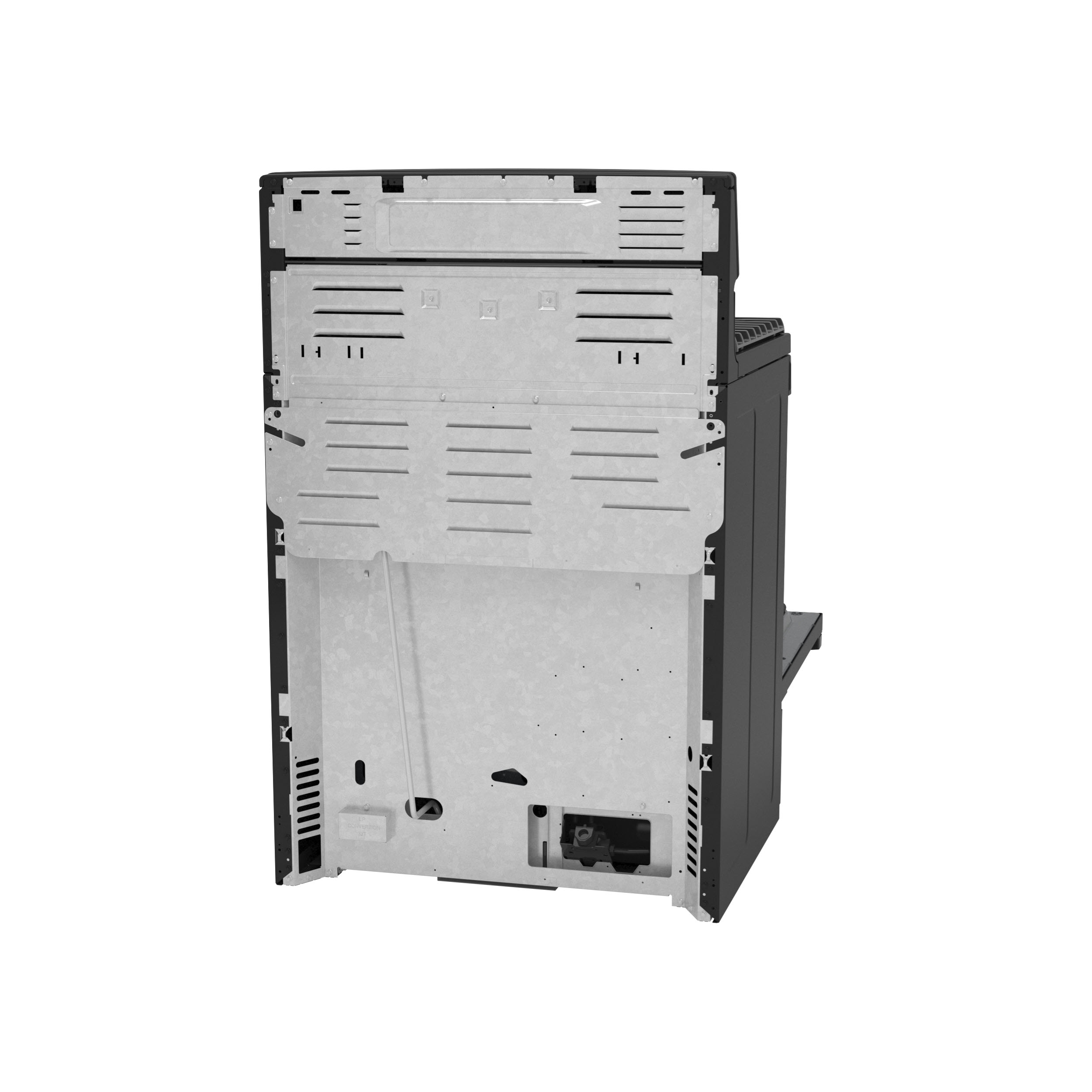

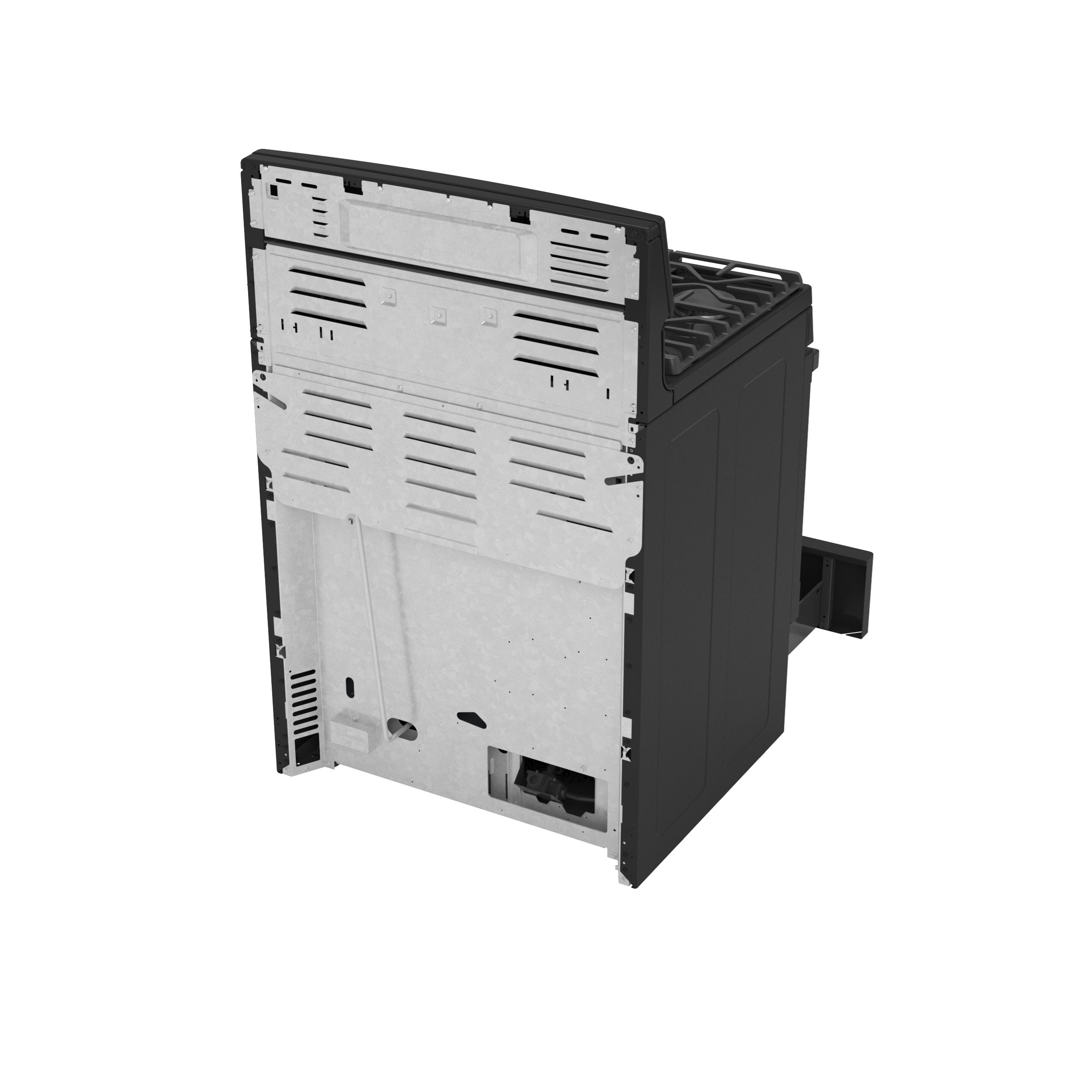

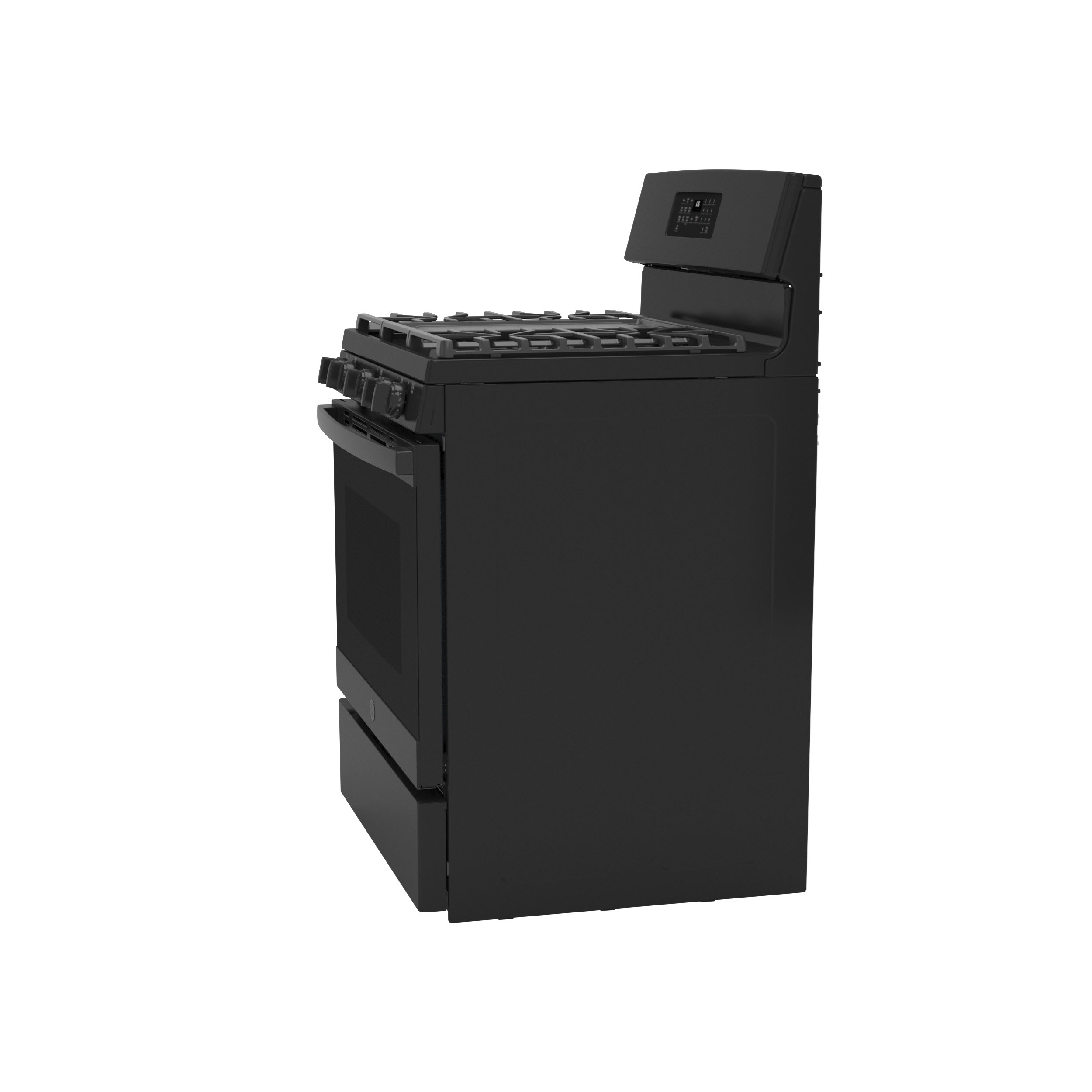

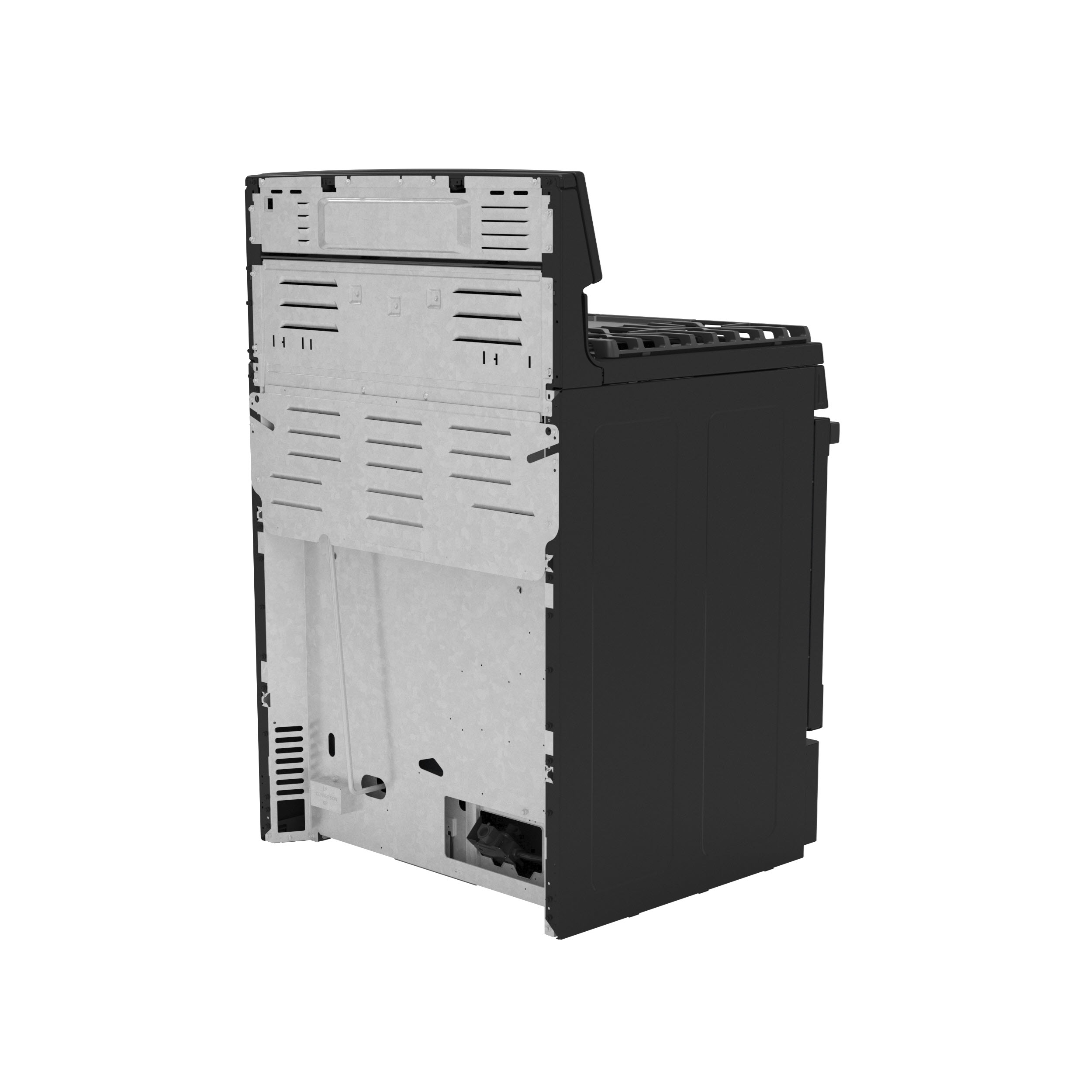

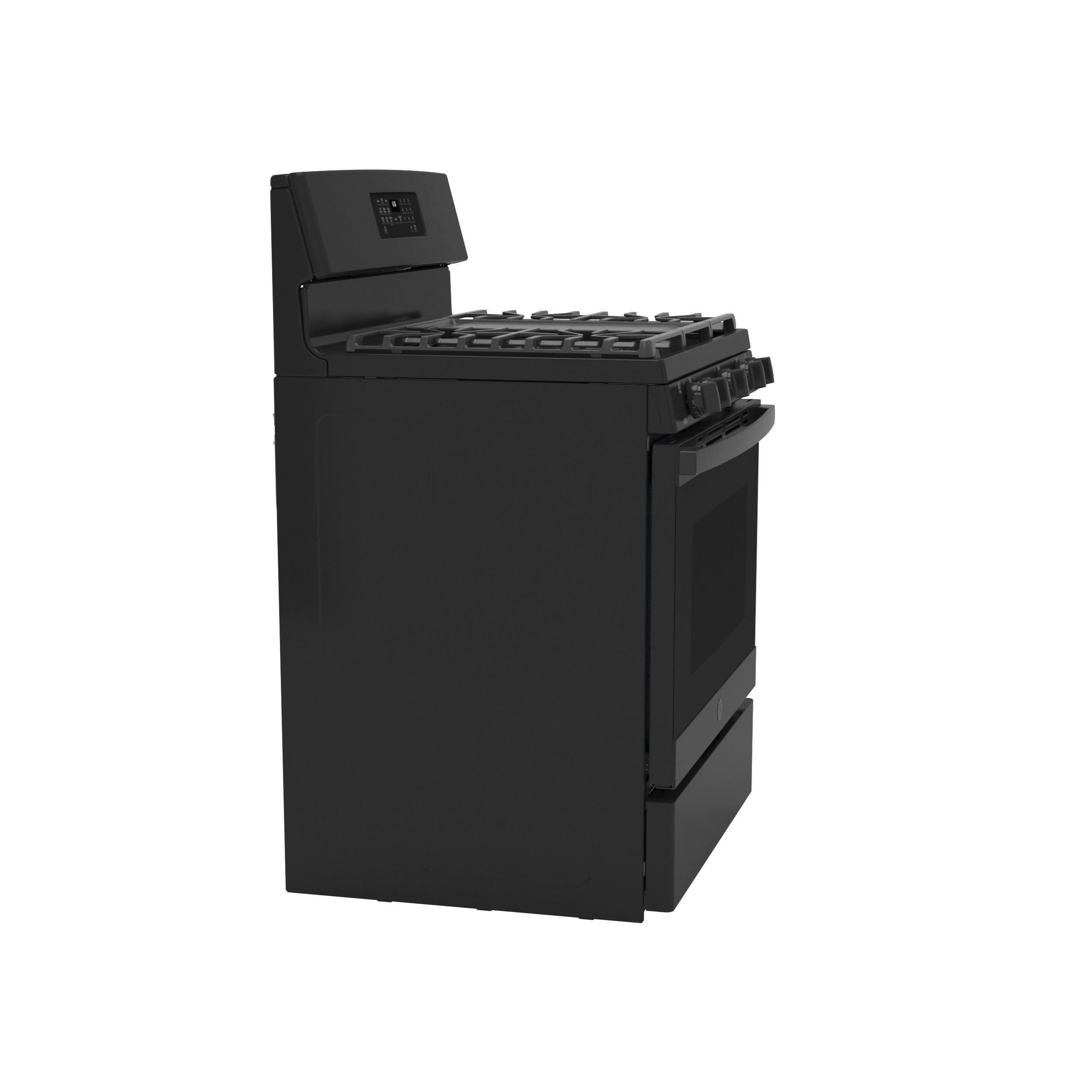

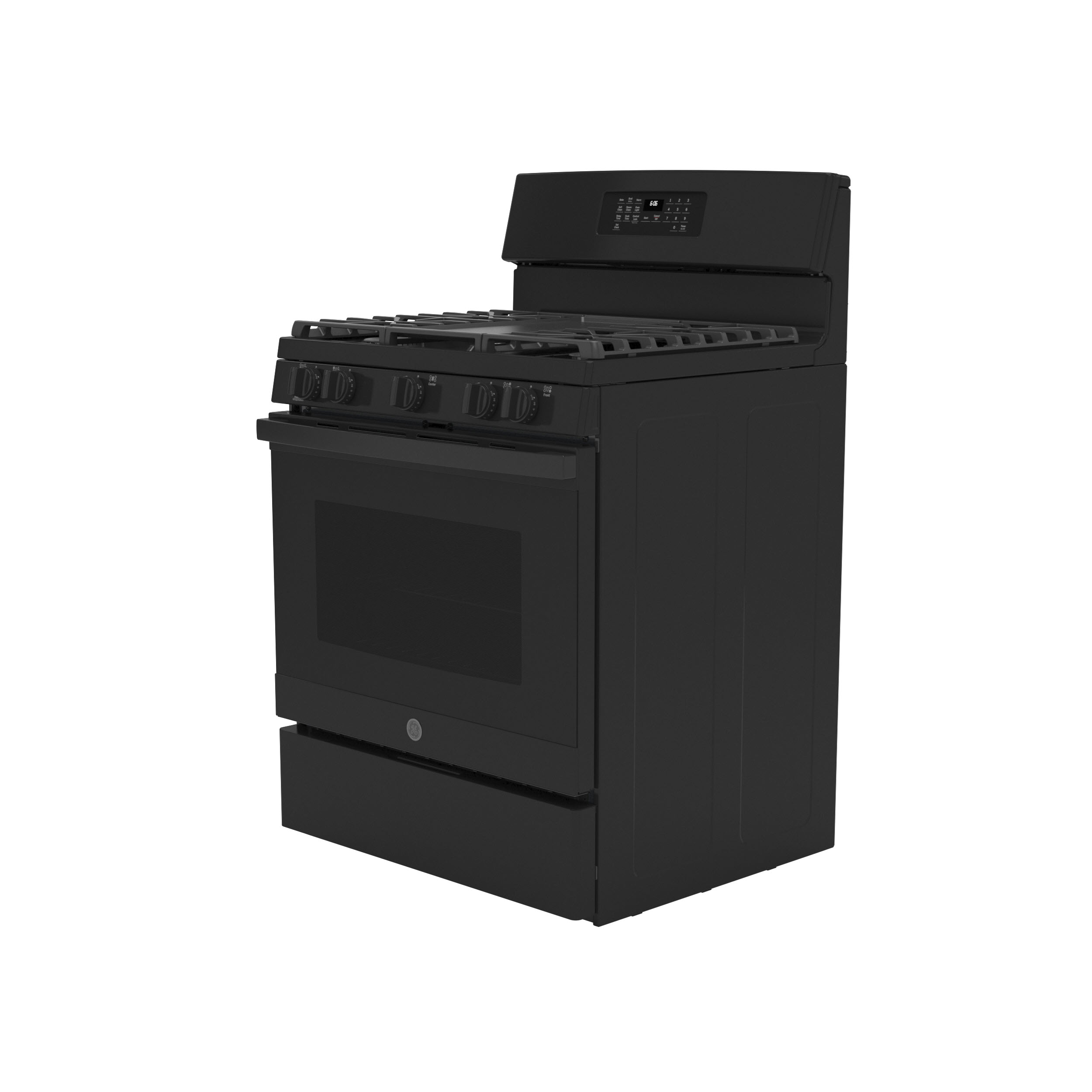

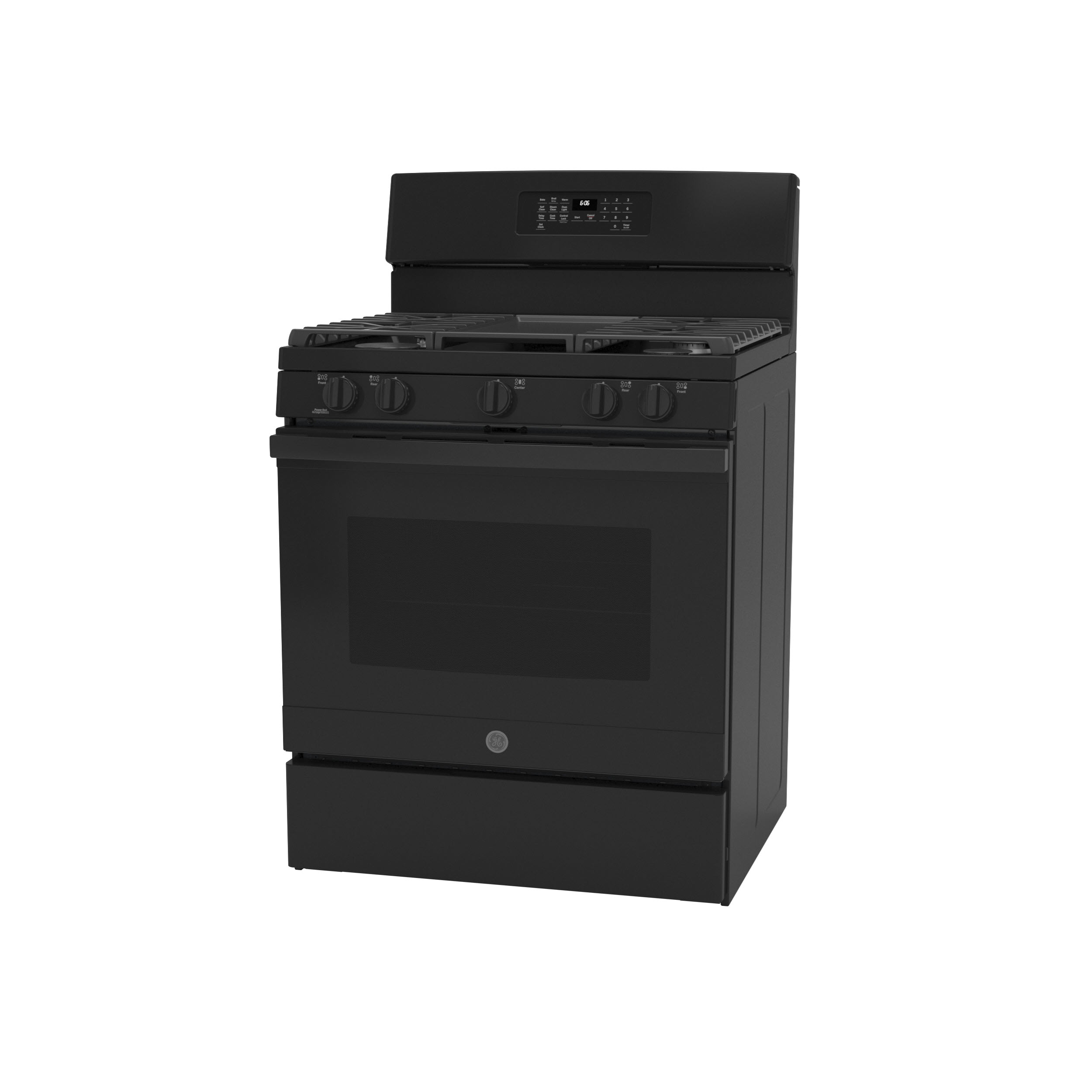

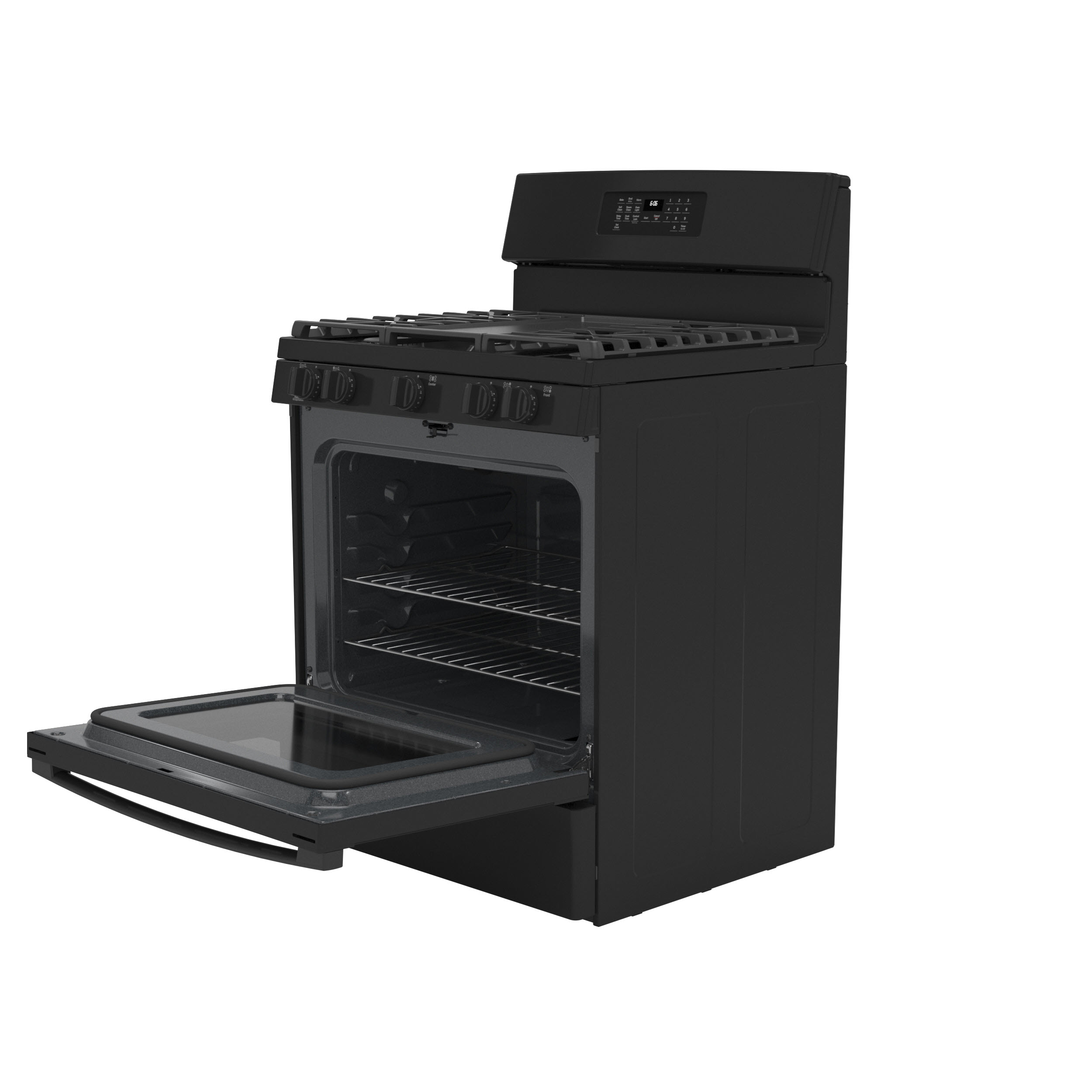

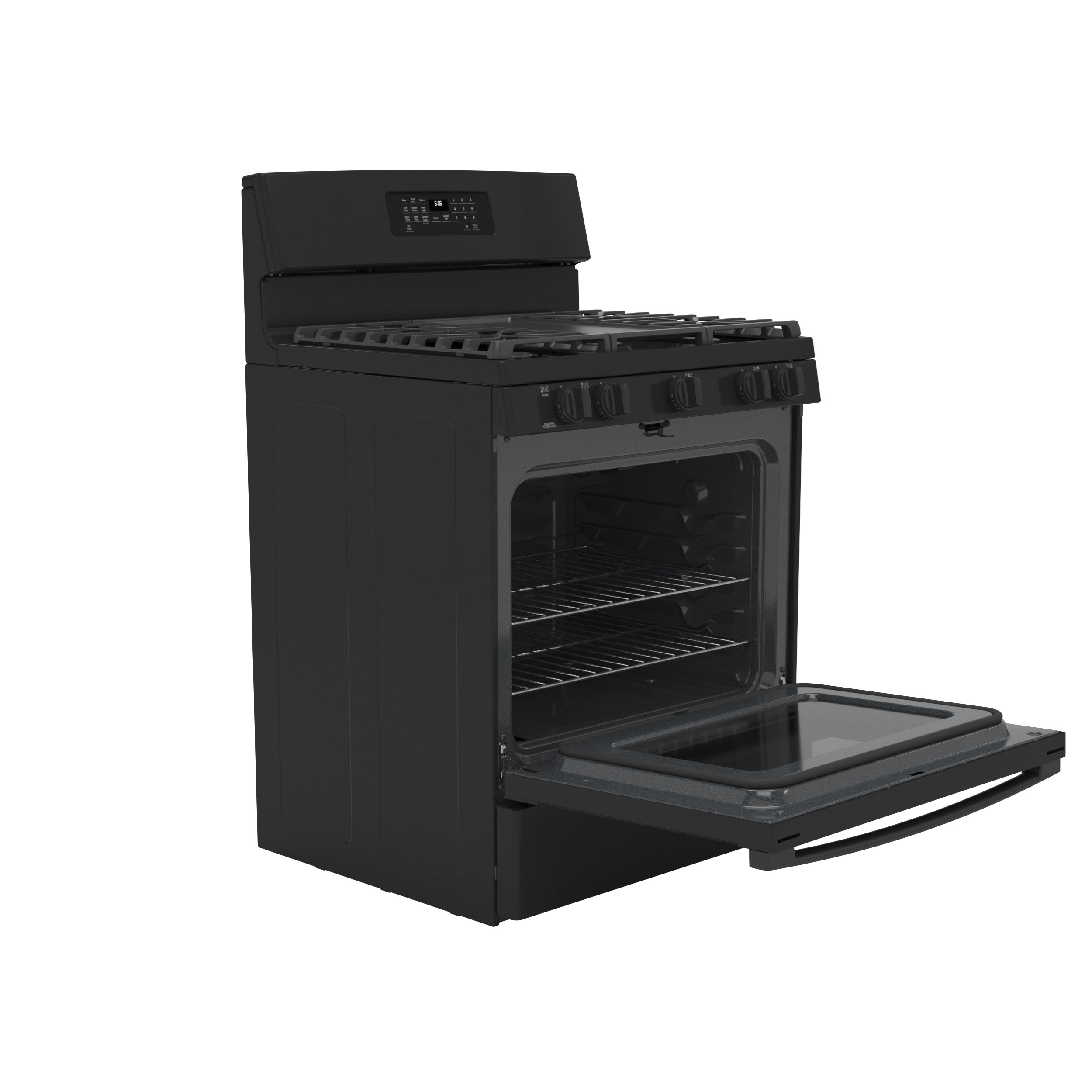

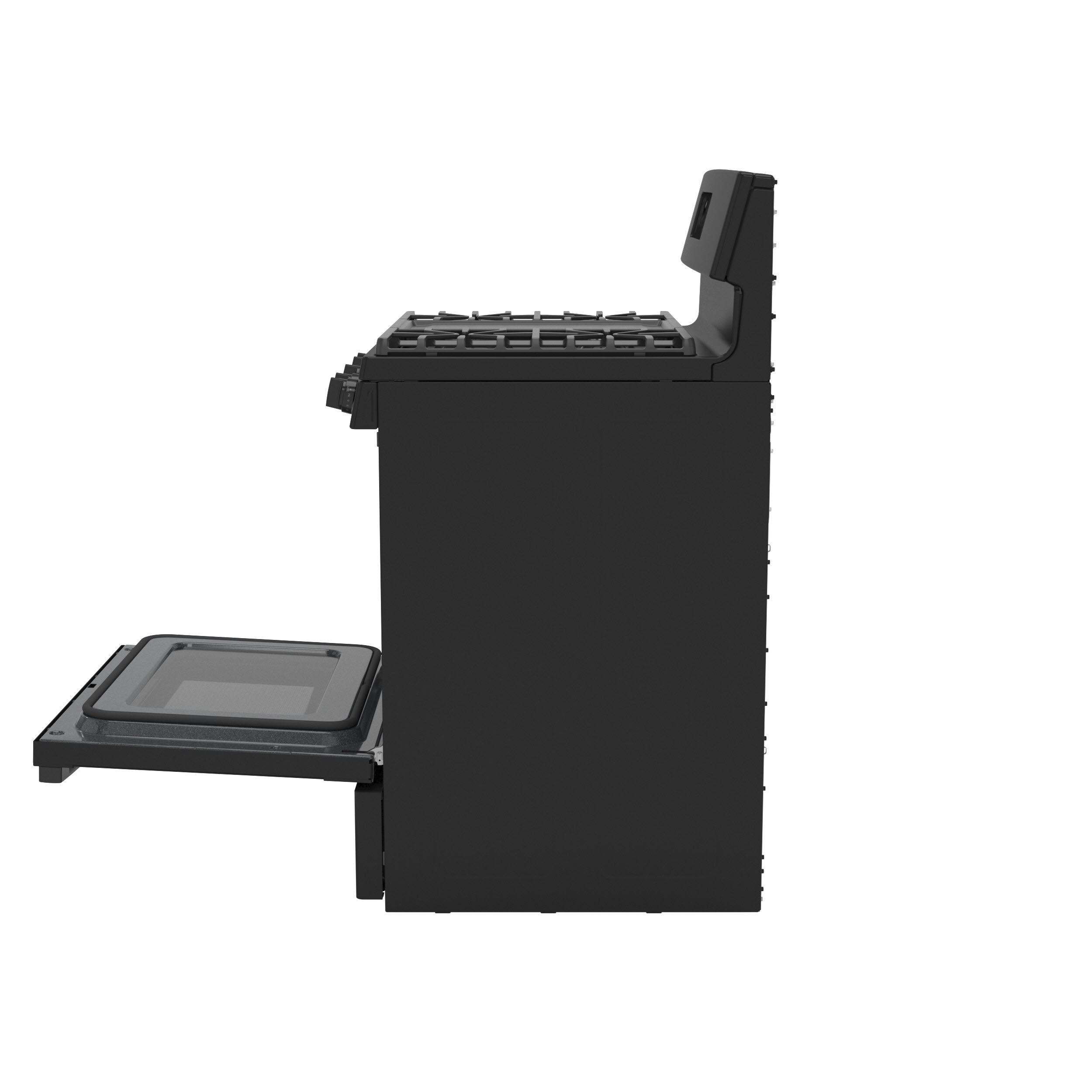

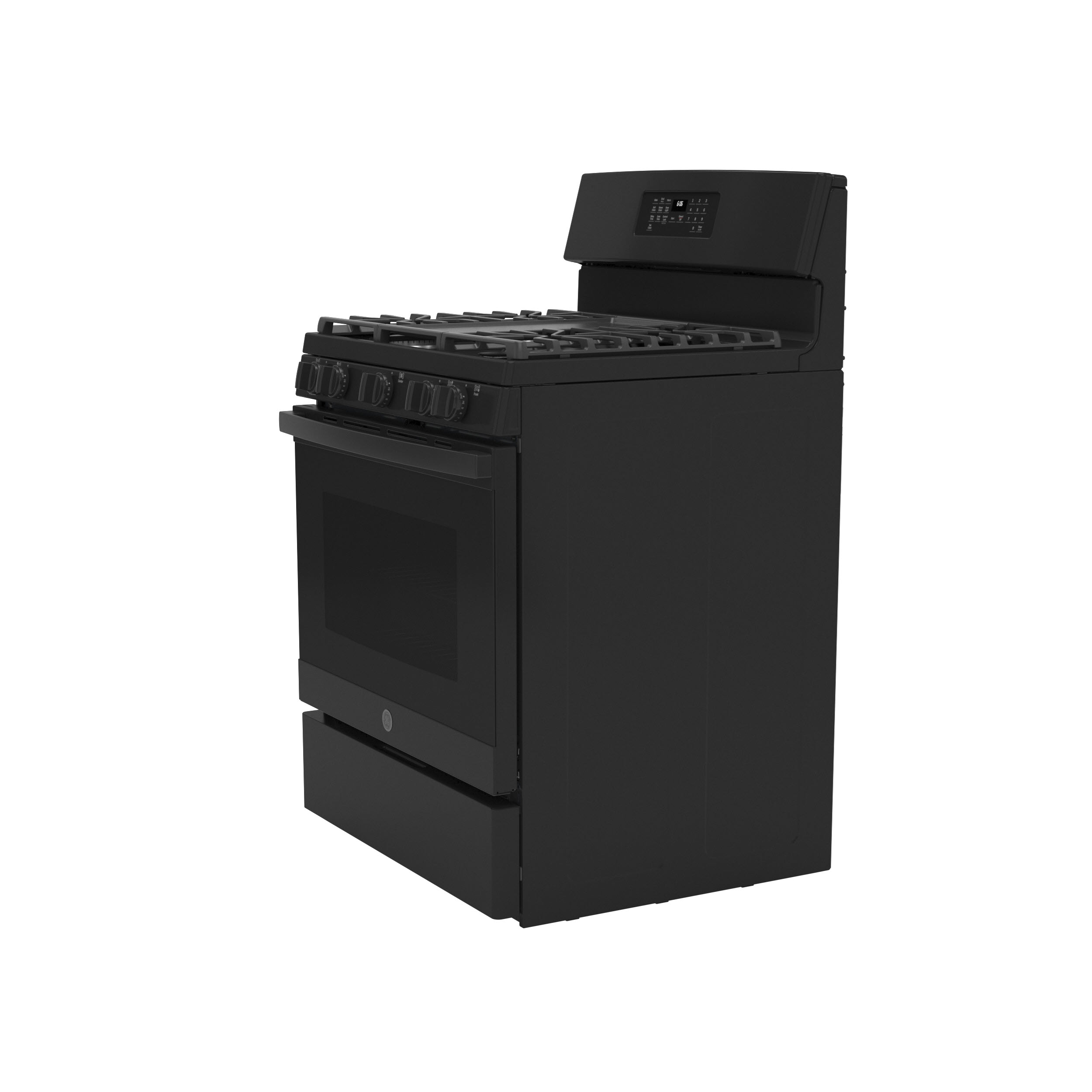

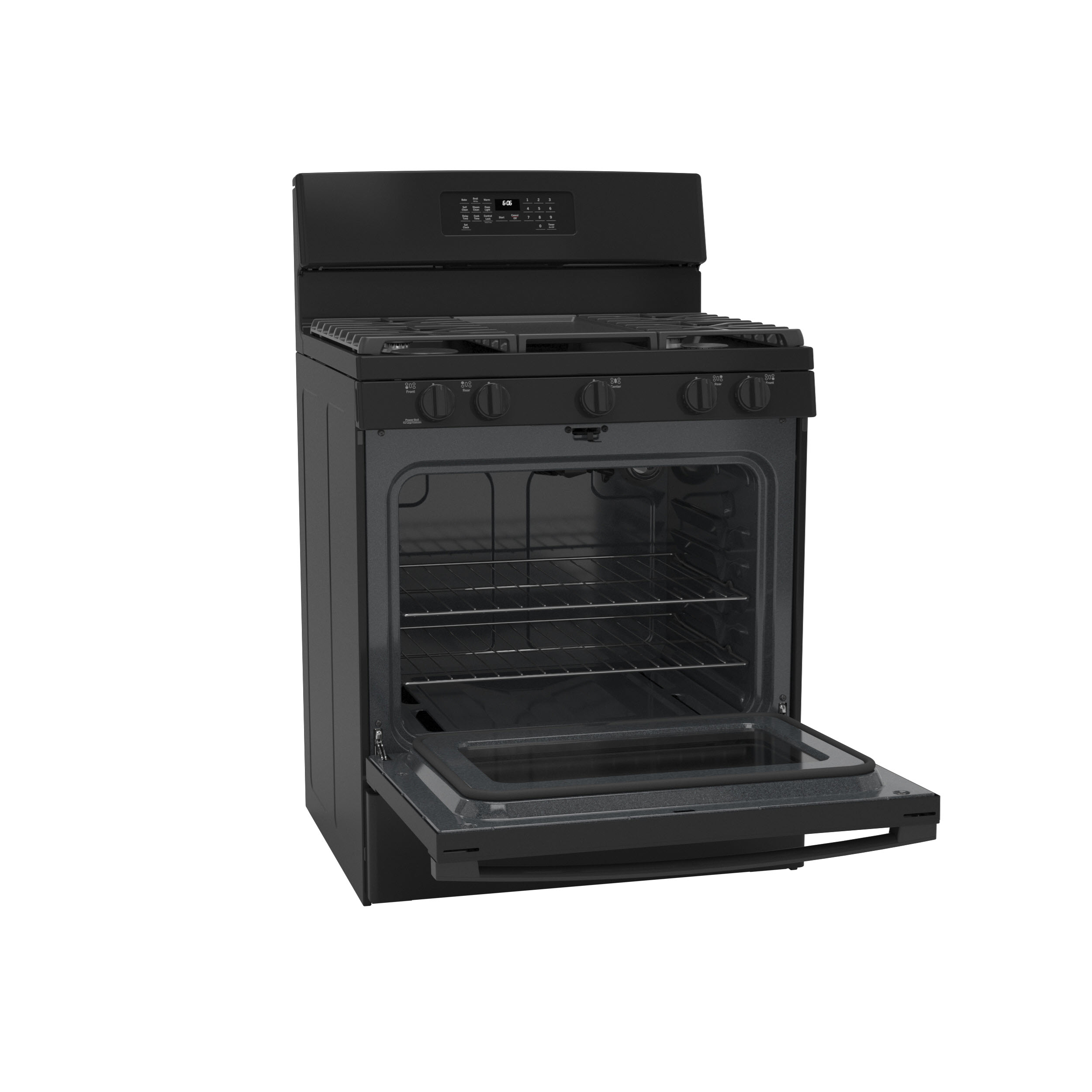

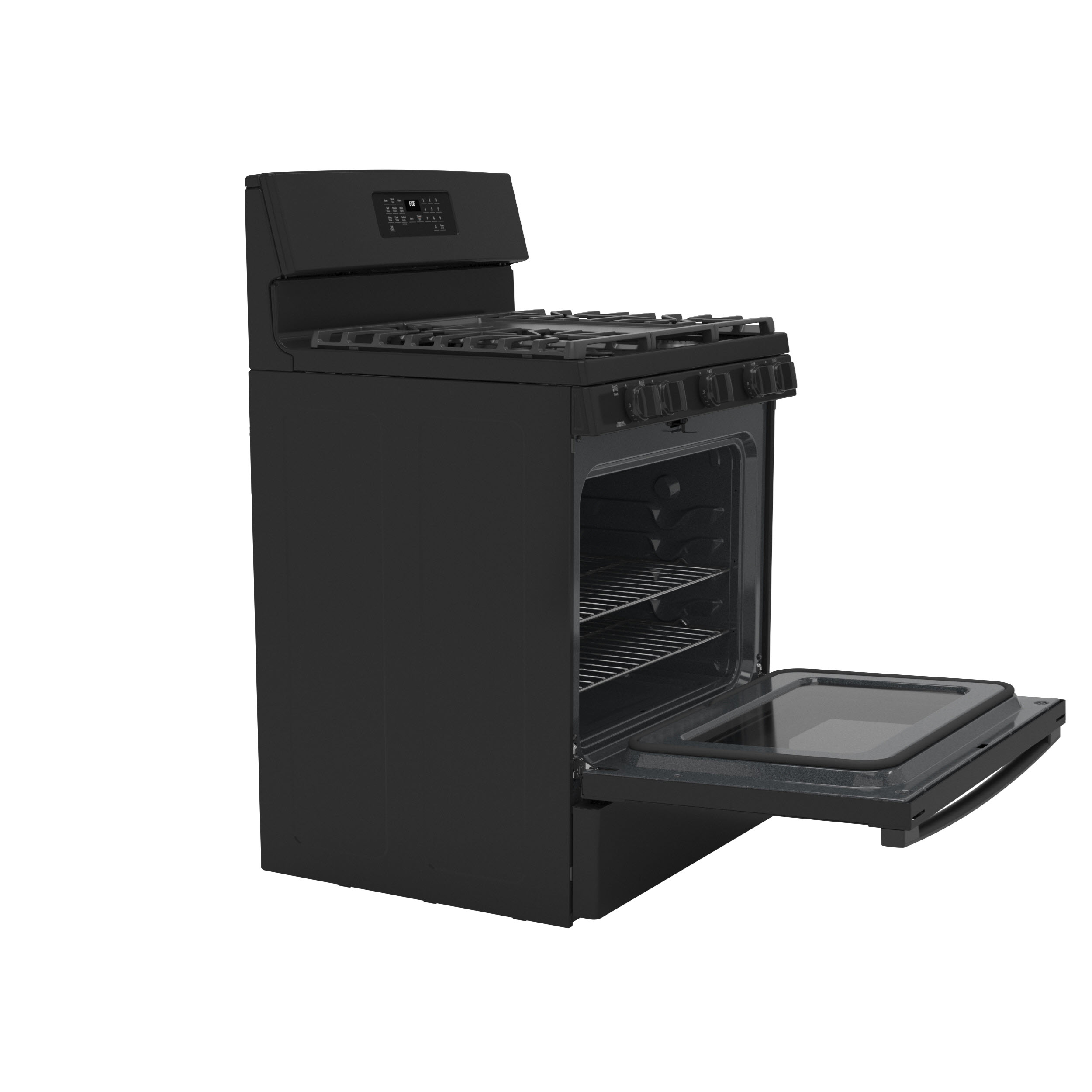

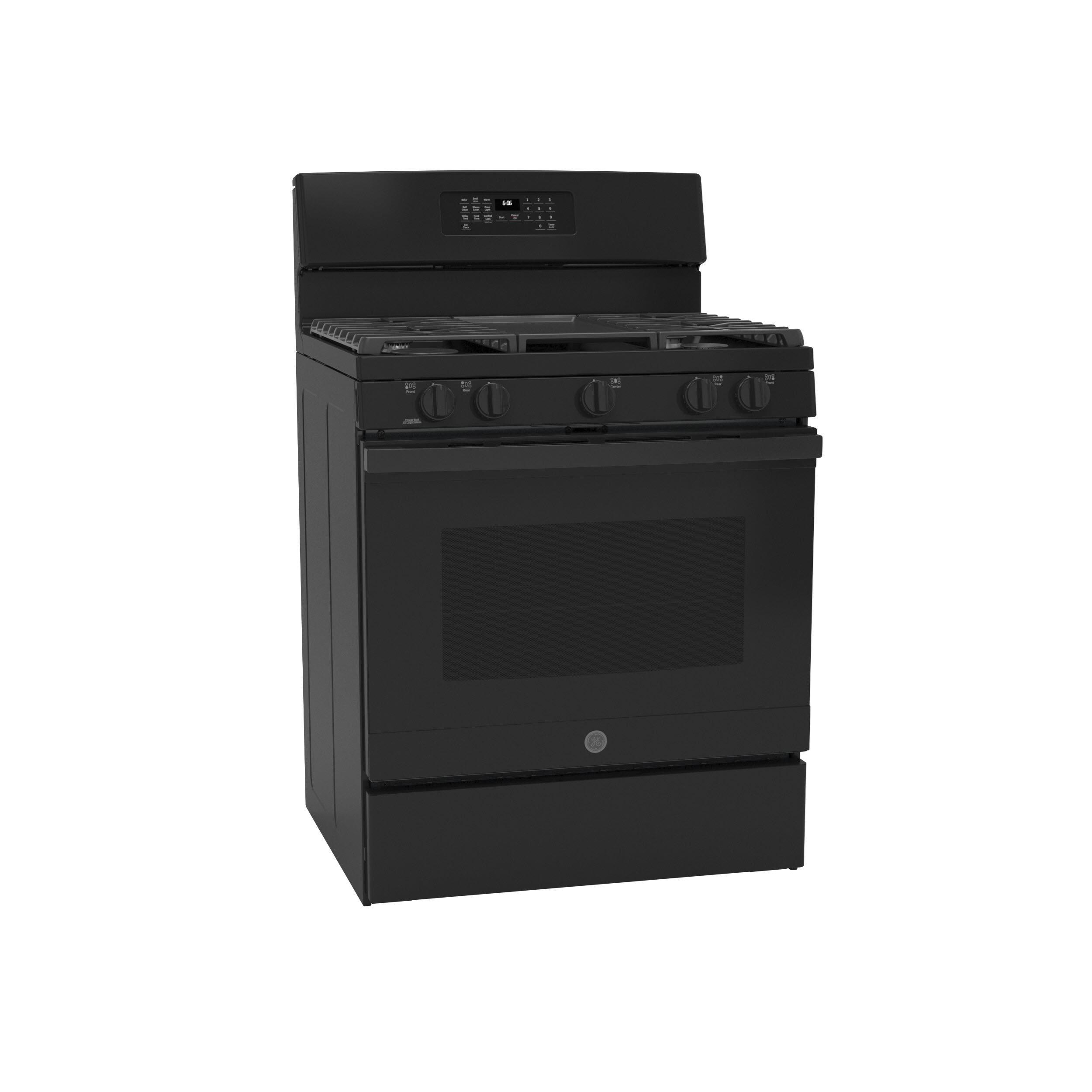

GE® 30" Free-Standing Gas Range
GE® 30" Free-Standing Gas Range
Price
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 30
Height: 47 1/4
Depth: 28 3/4
Color
Black
Also Comes In
Model #:
JGB660DPWW

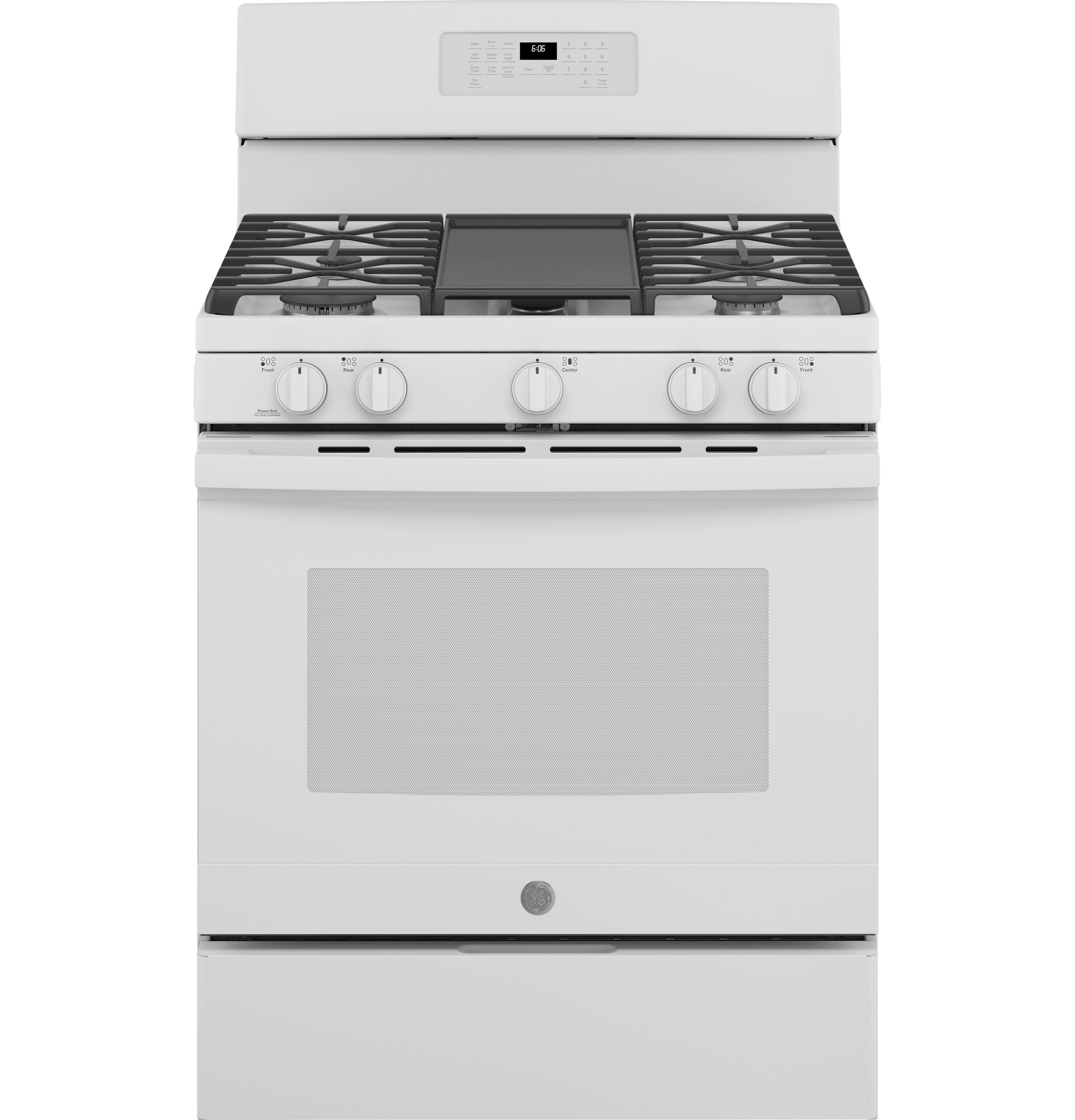

White
Model #:
JGB660EPES

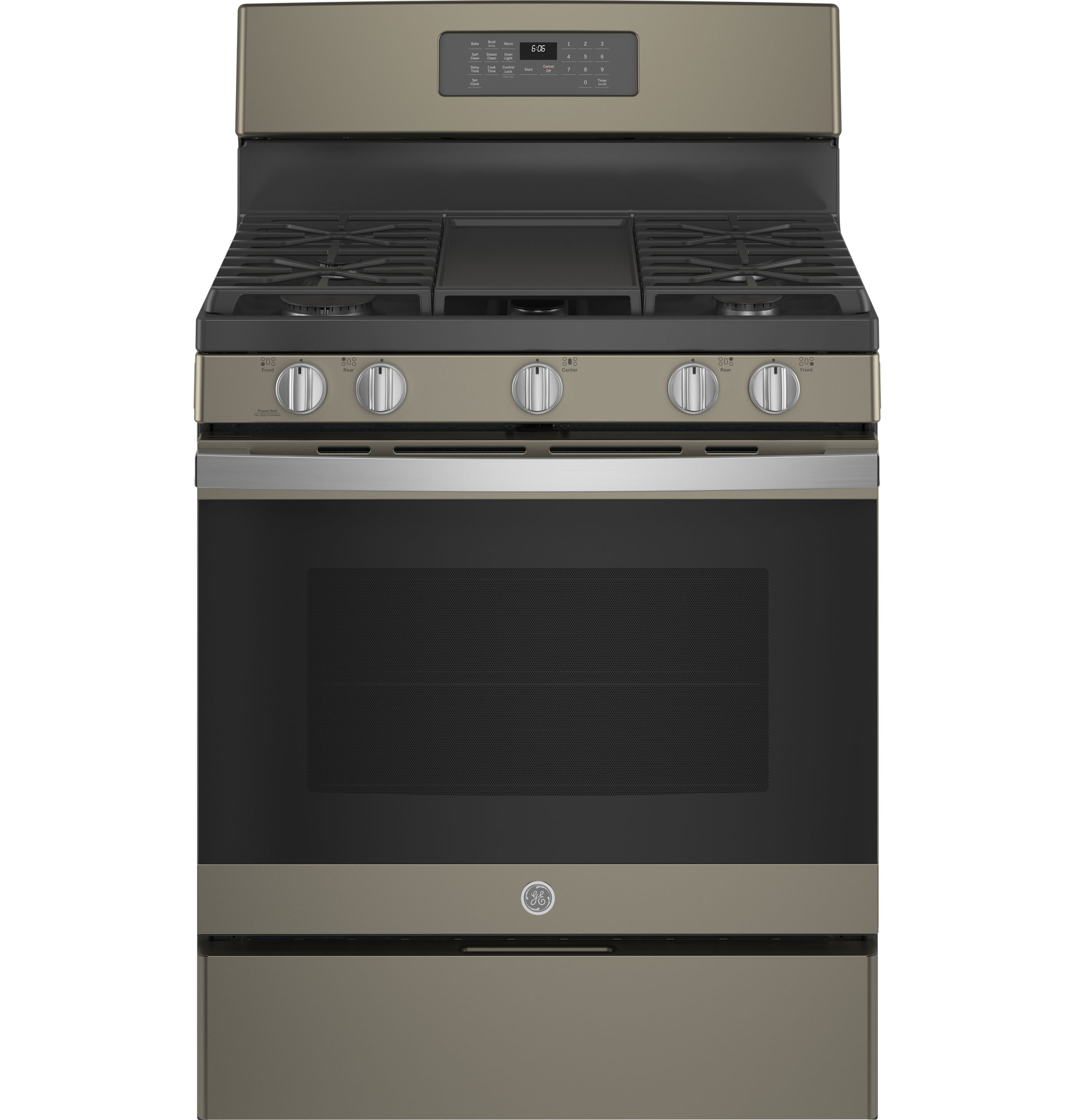

Slate
Model #:
JGB660SPSS

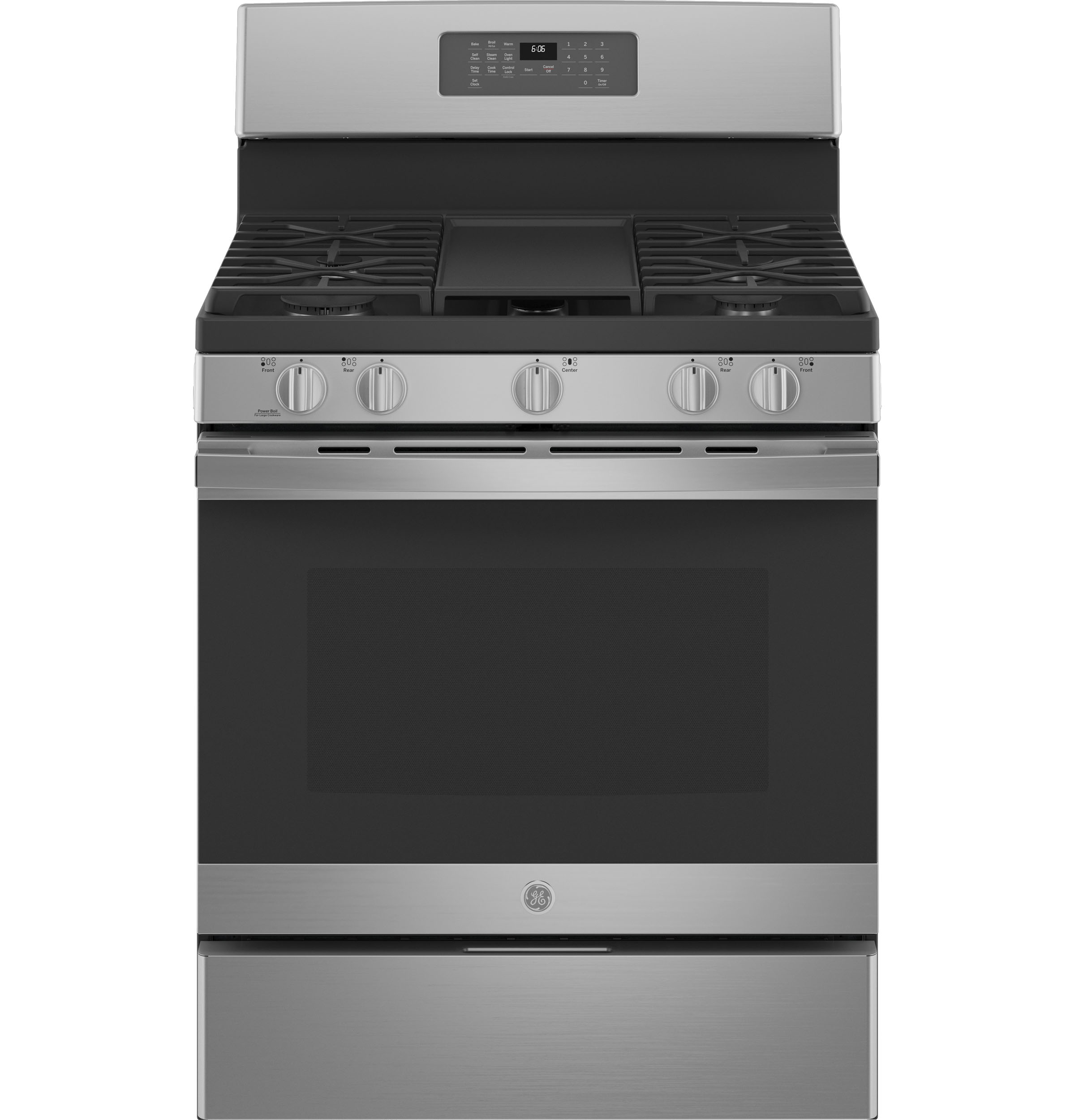

Stainless Steel
Model #:
JGB660FPDS

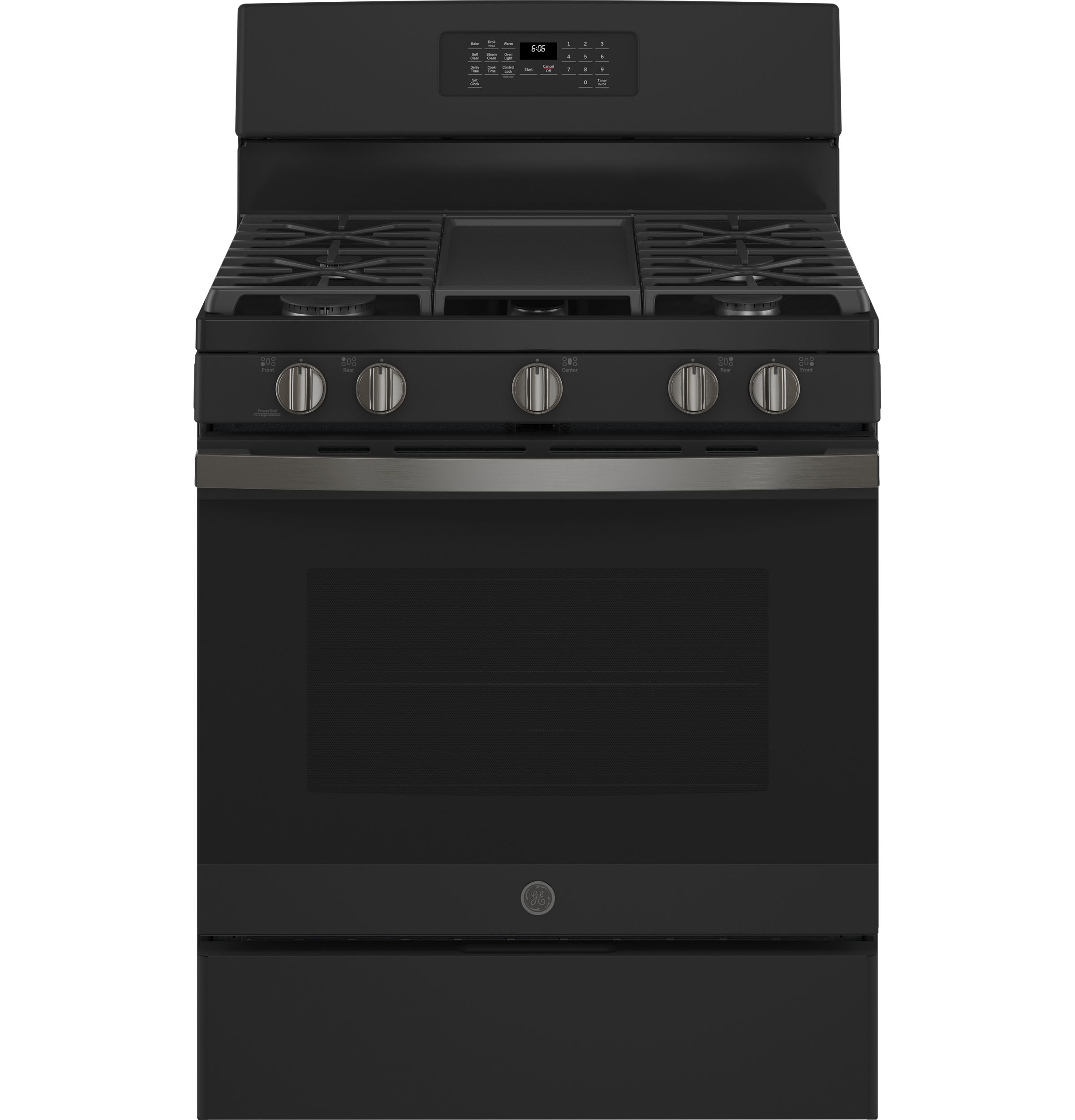

Black Slate
Model #:
JGB660YPFS
Fingerprint Resistant Stainless Steel
Features

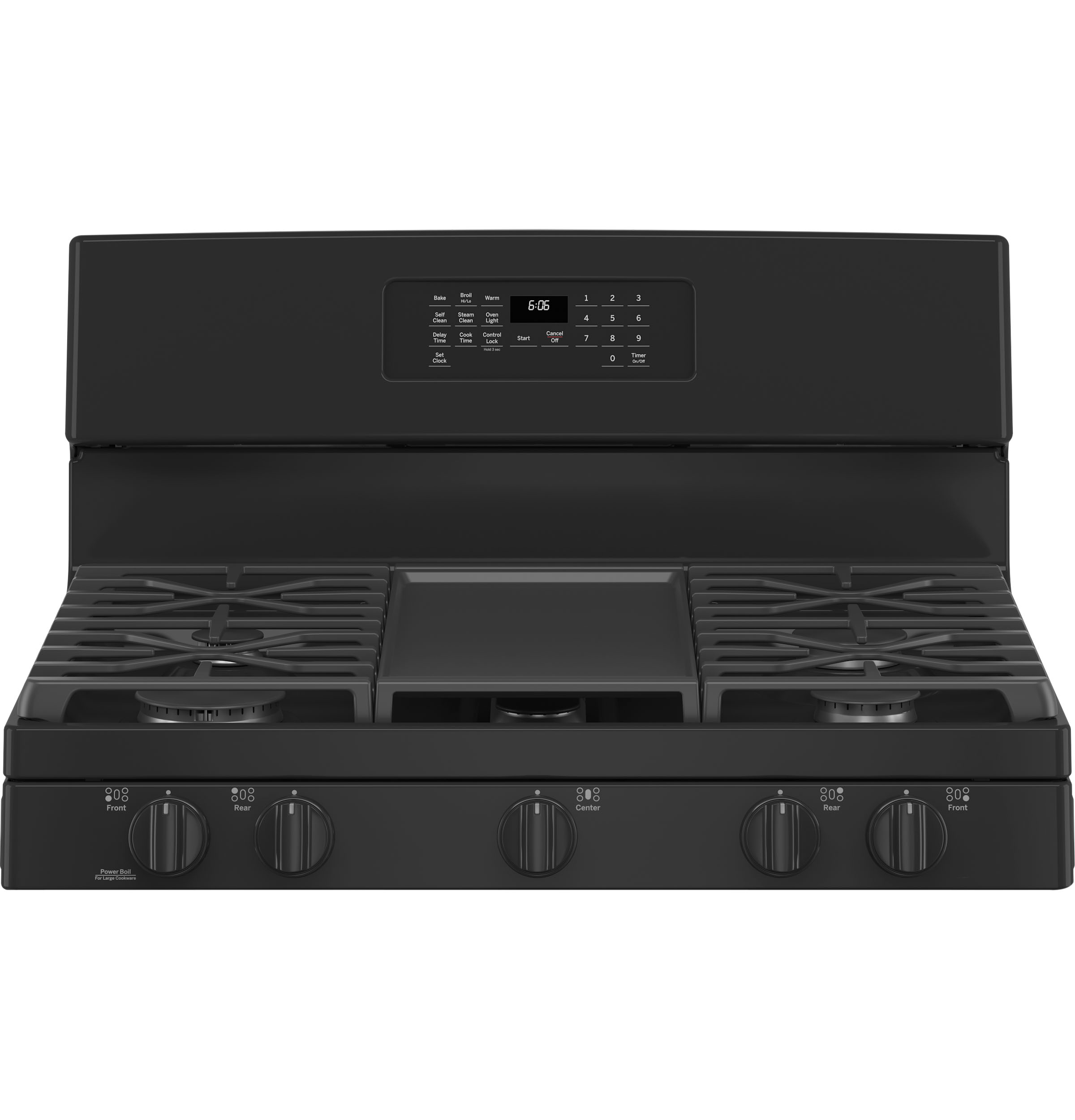

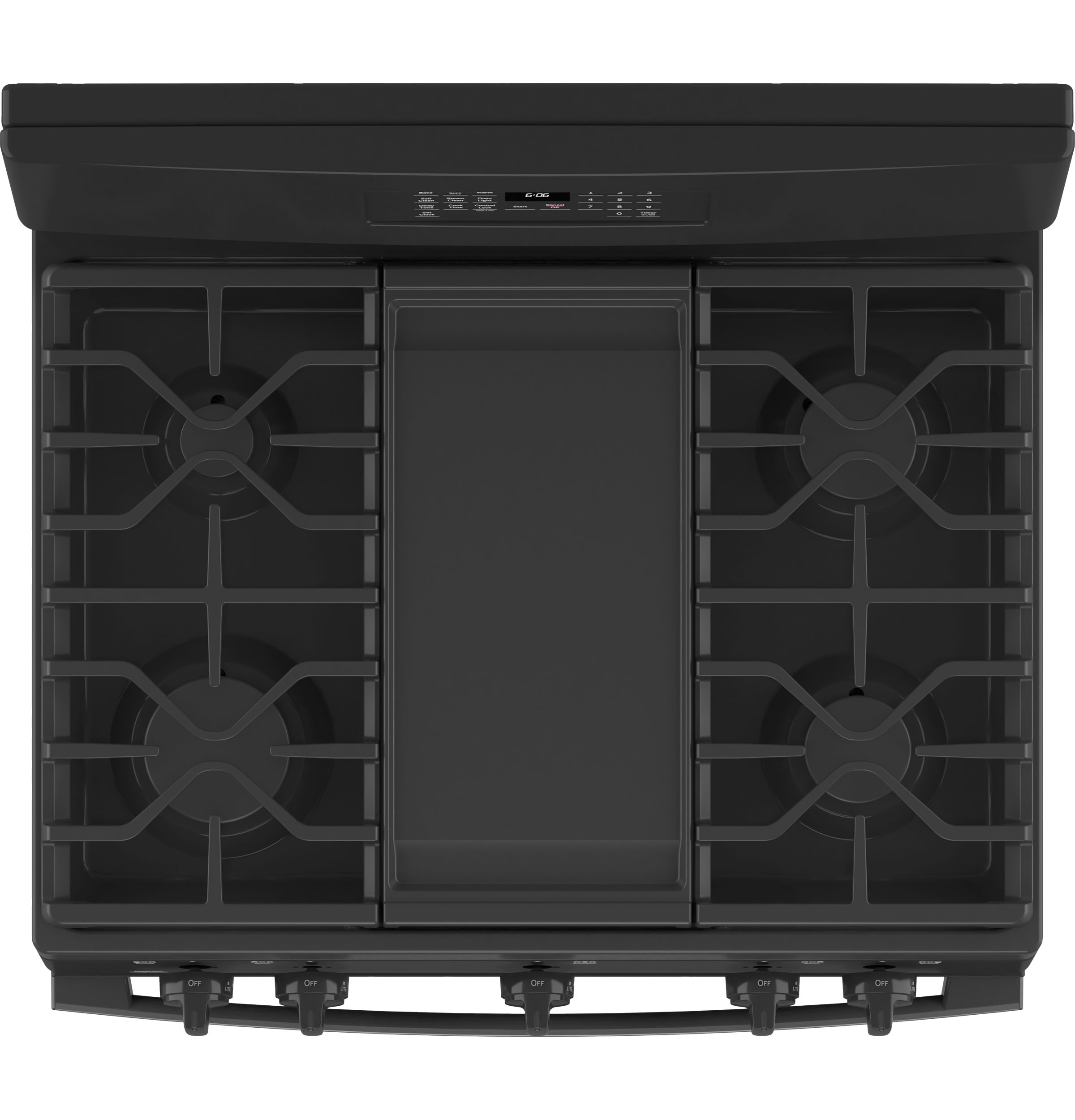

Edge-to-edge cooktop
- Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
- This 18,000-BTU power boil element produces intense heat to boil water fast
- This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
- This burner setting provides low, even heat so delicate dishes don't burn
- This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners

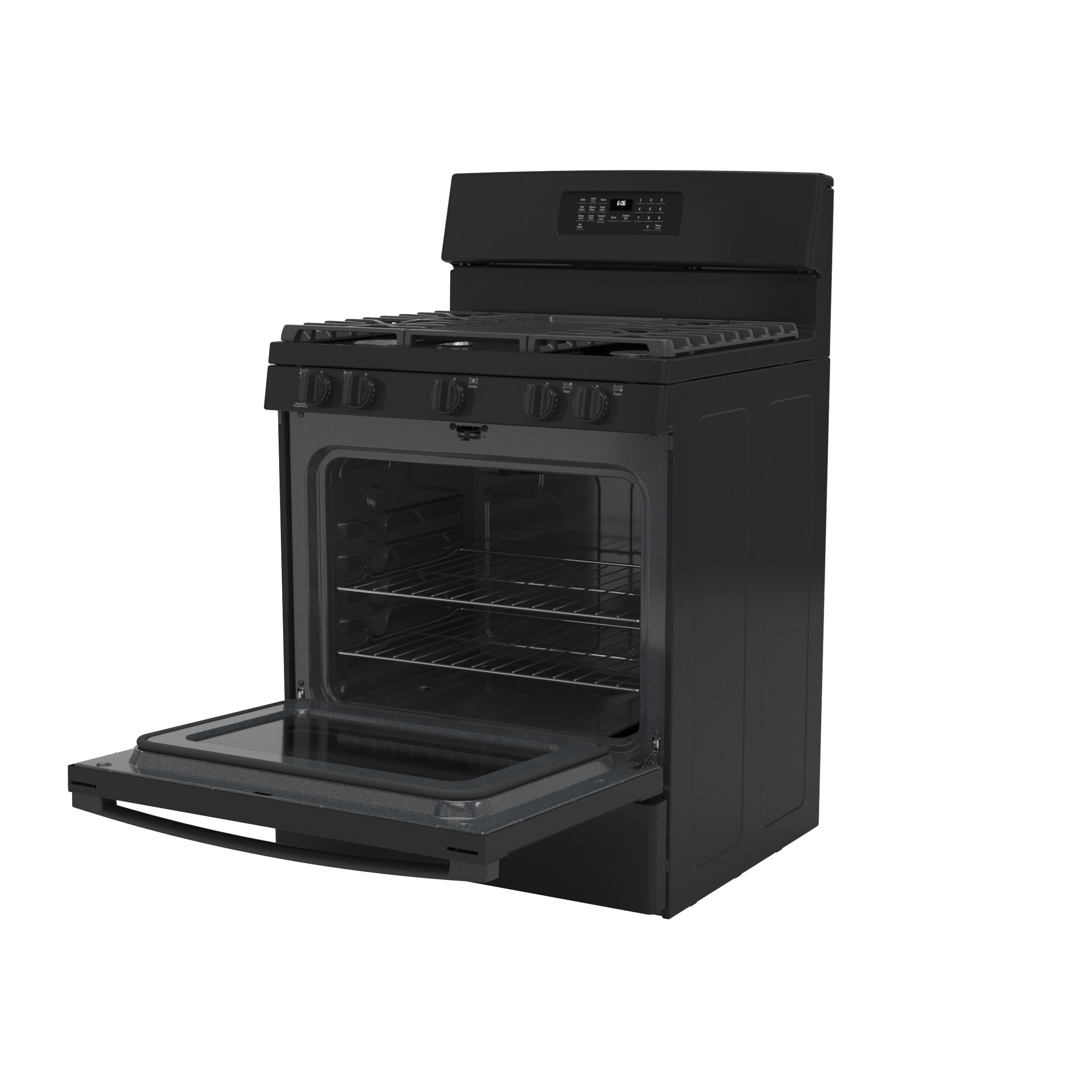

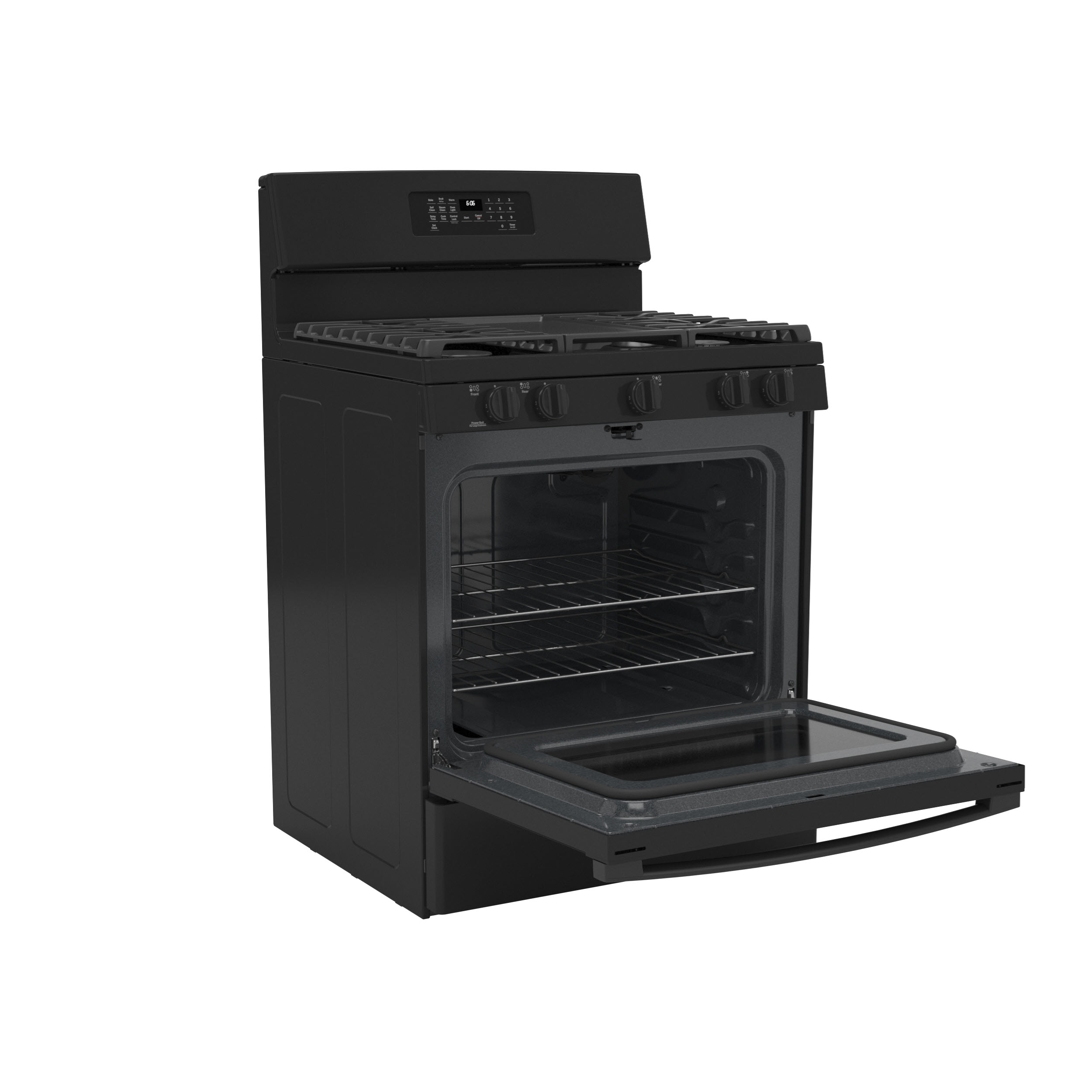

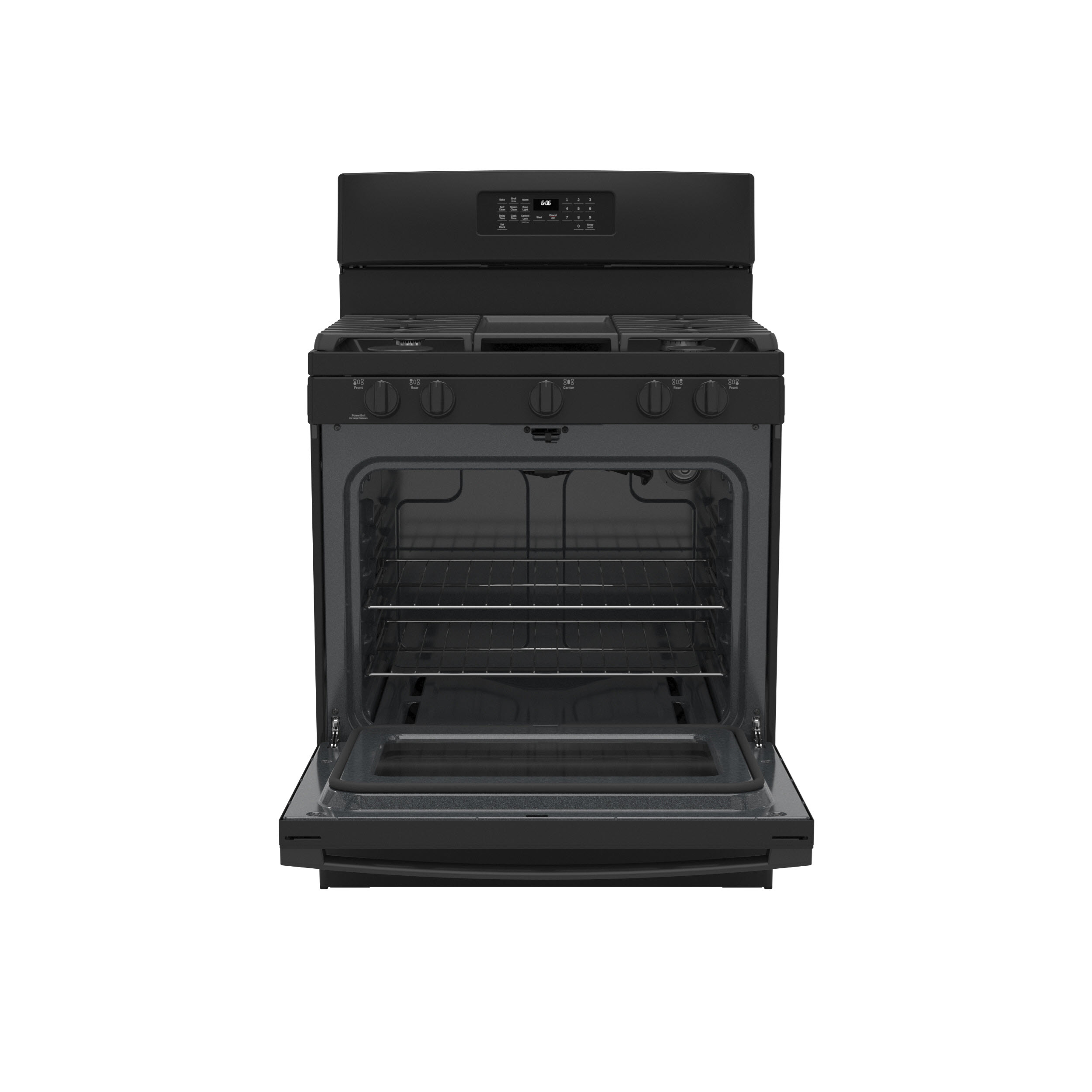

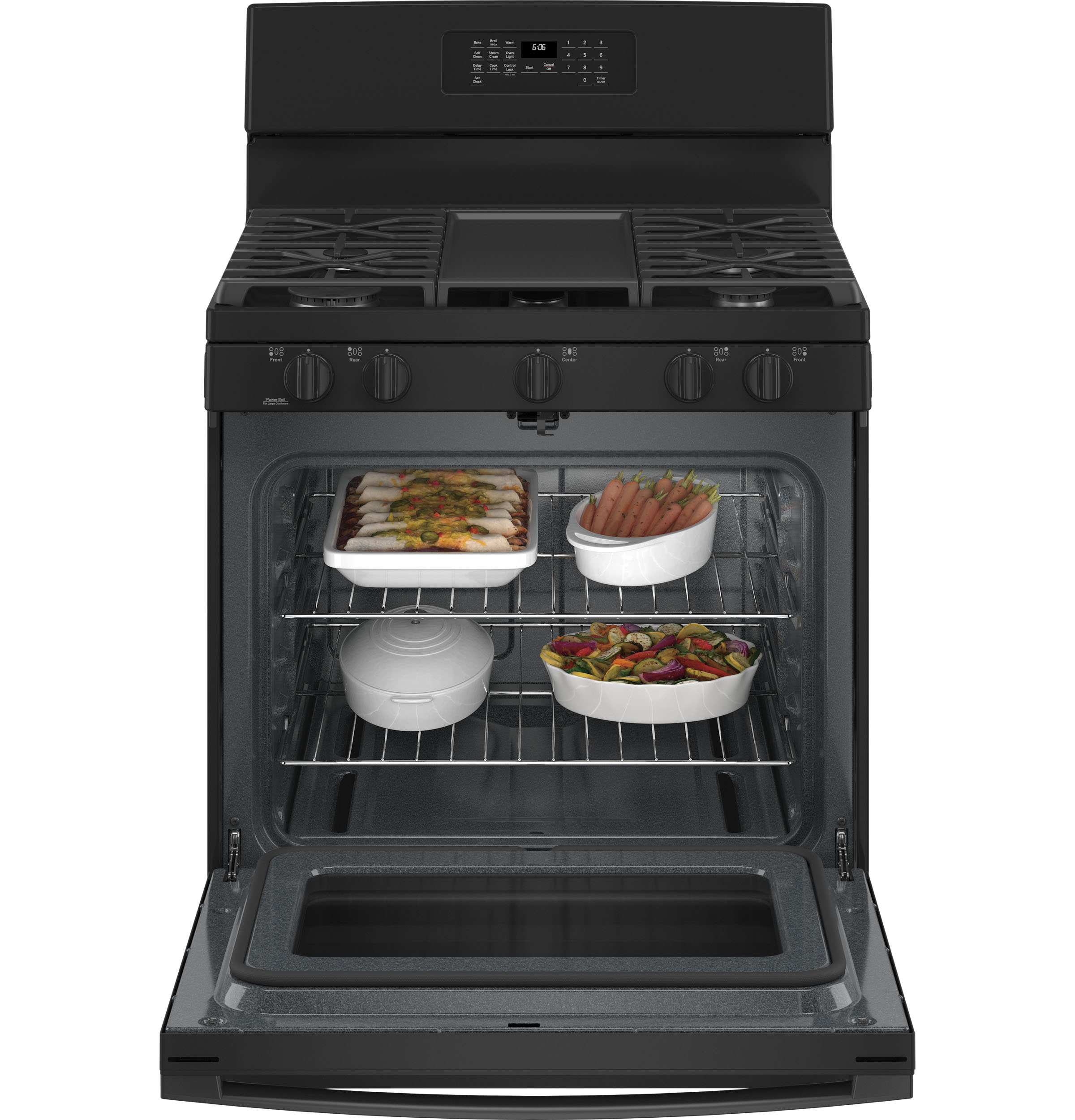

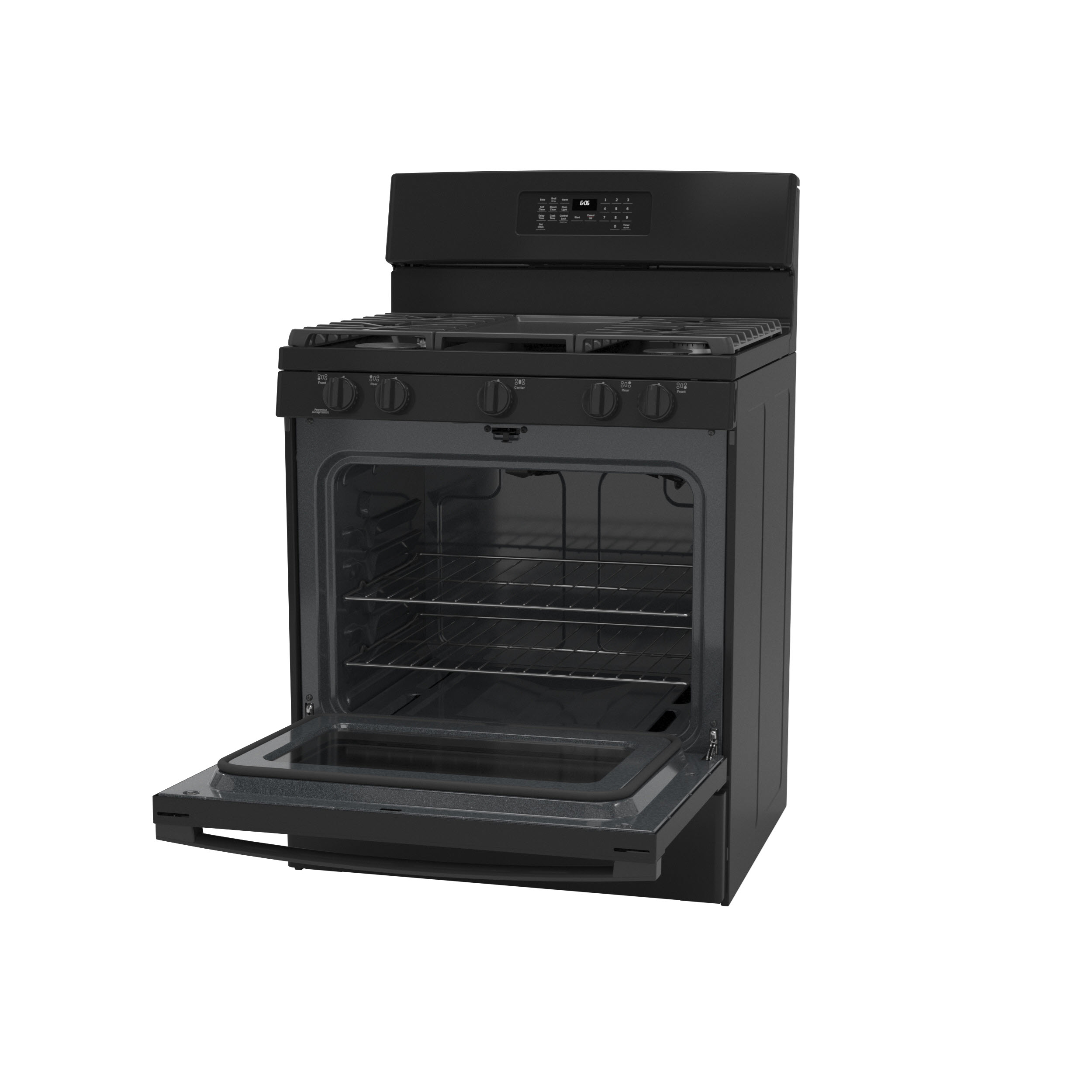

- Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes
- These cooktop grates can be cleaned one of two ways – either in the dishwasher, or on the bottom of a self-clean oven

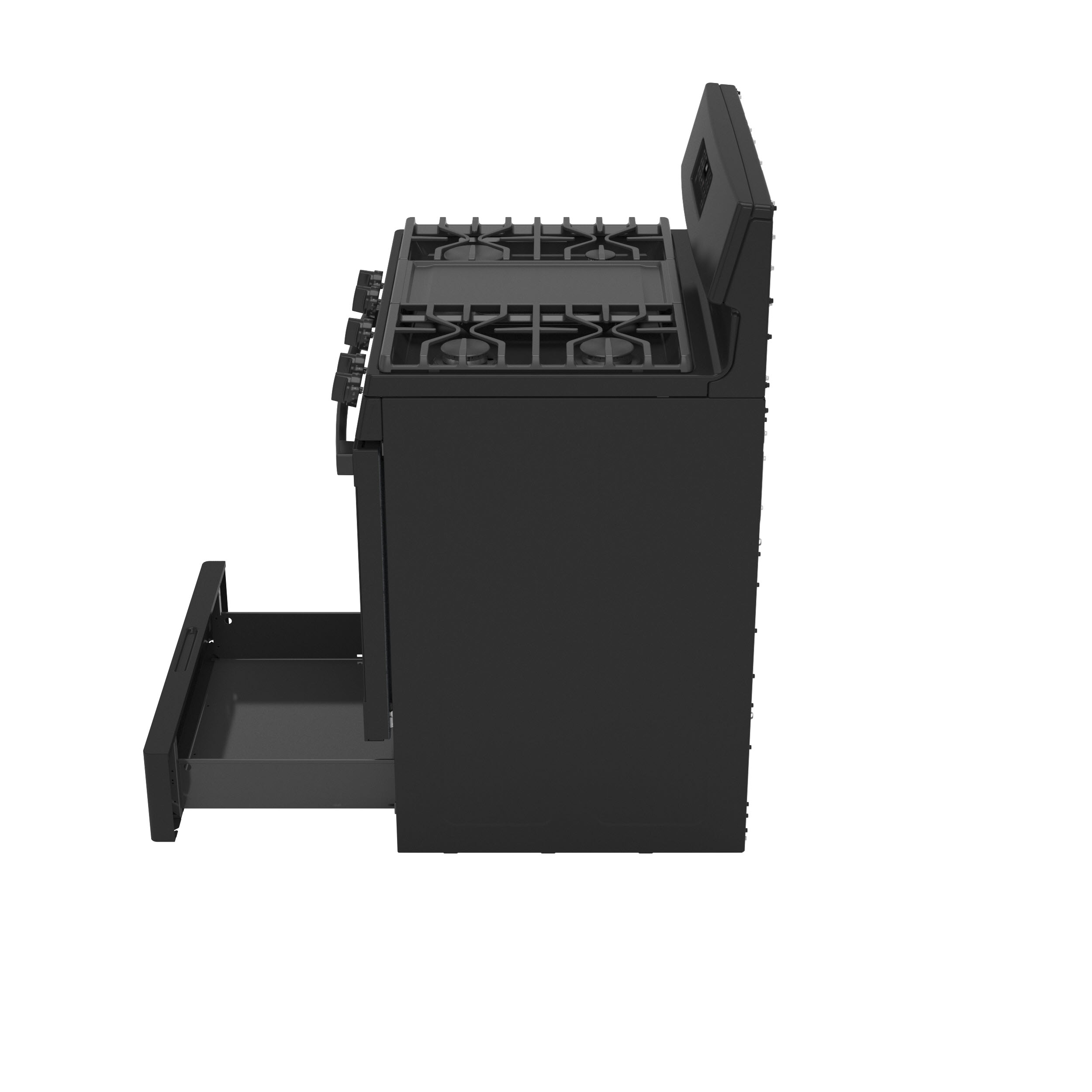

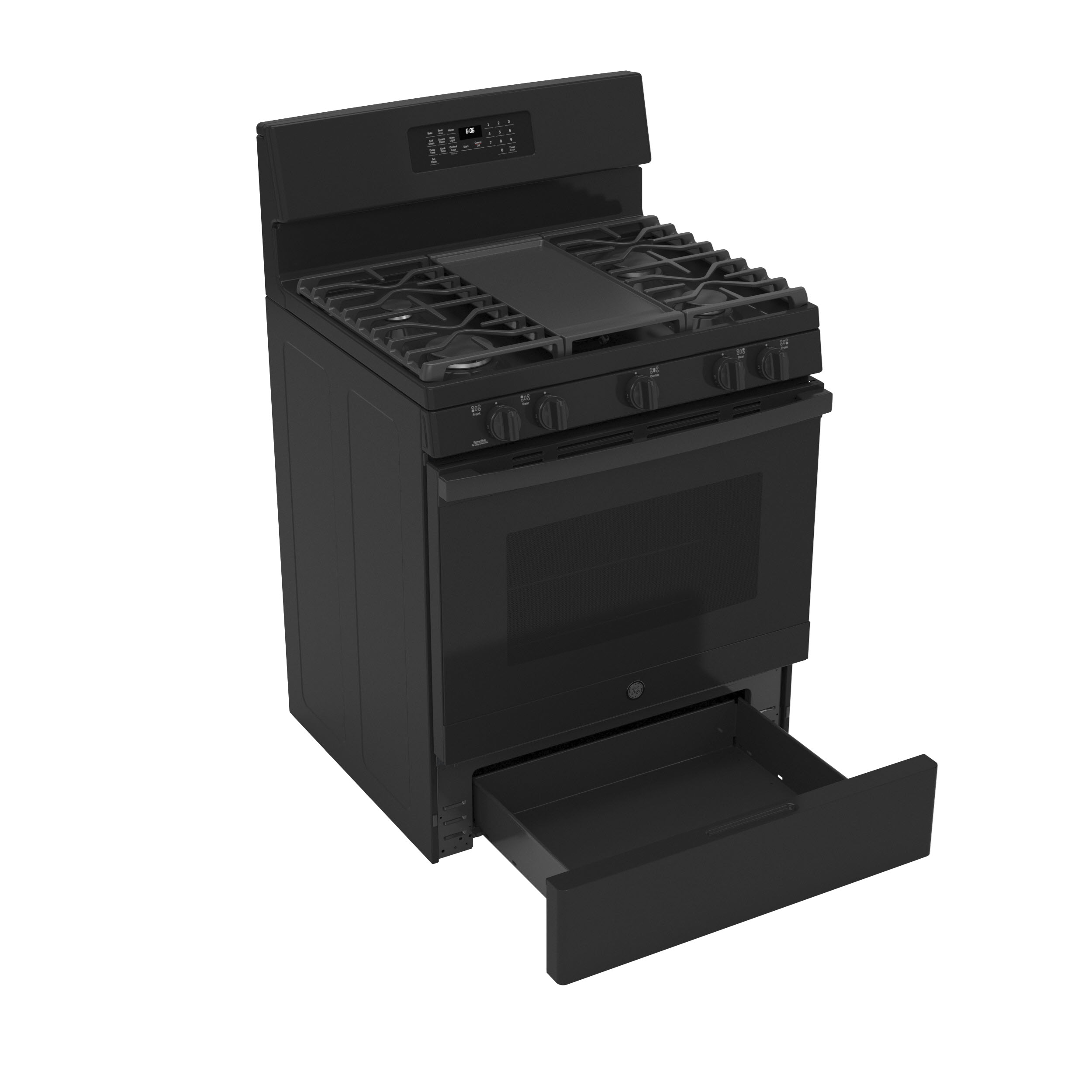

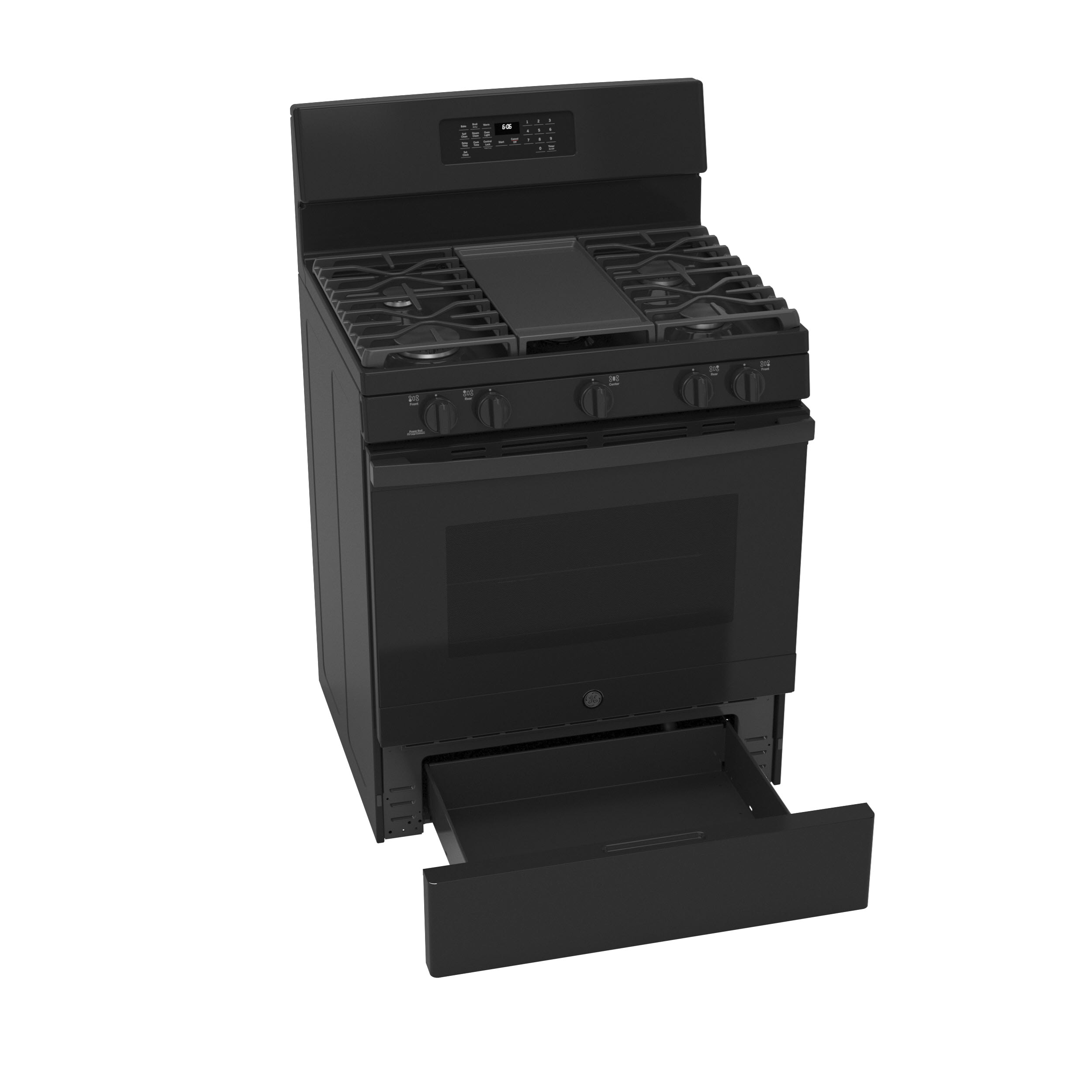

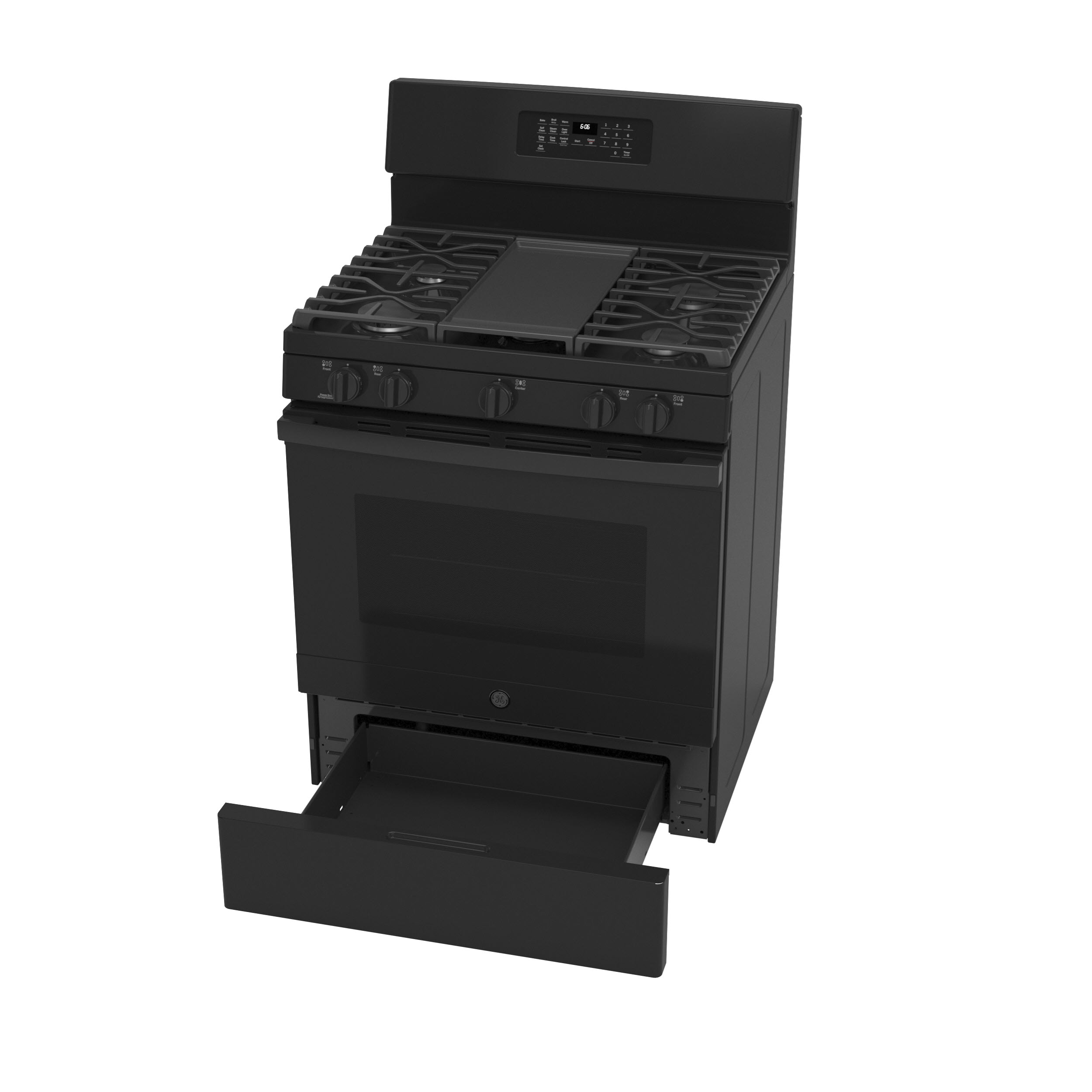

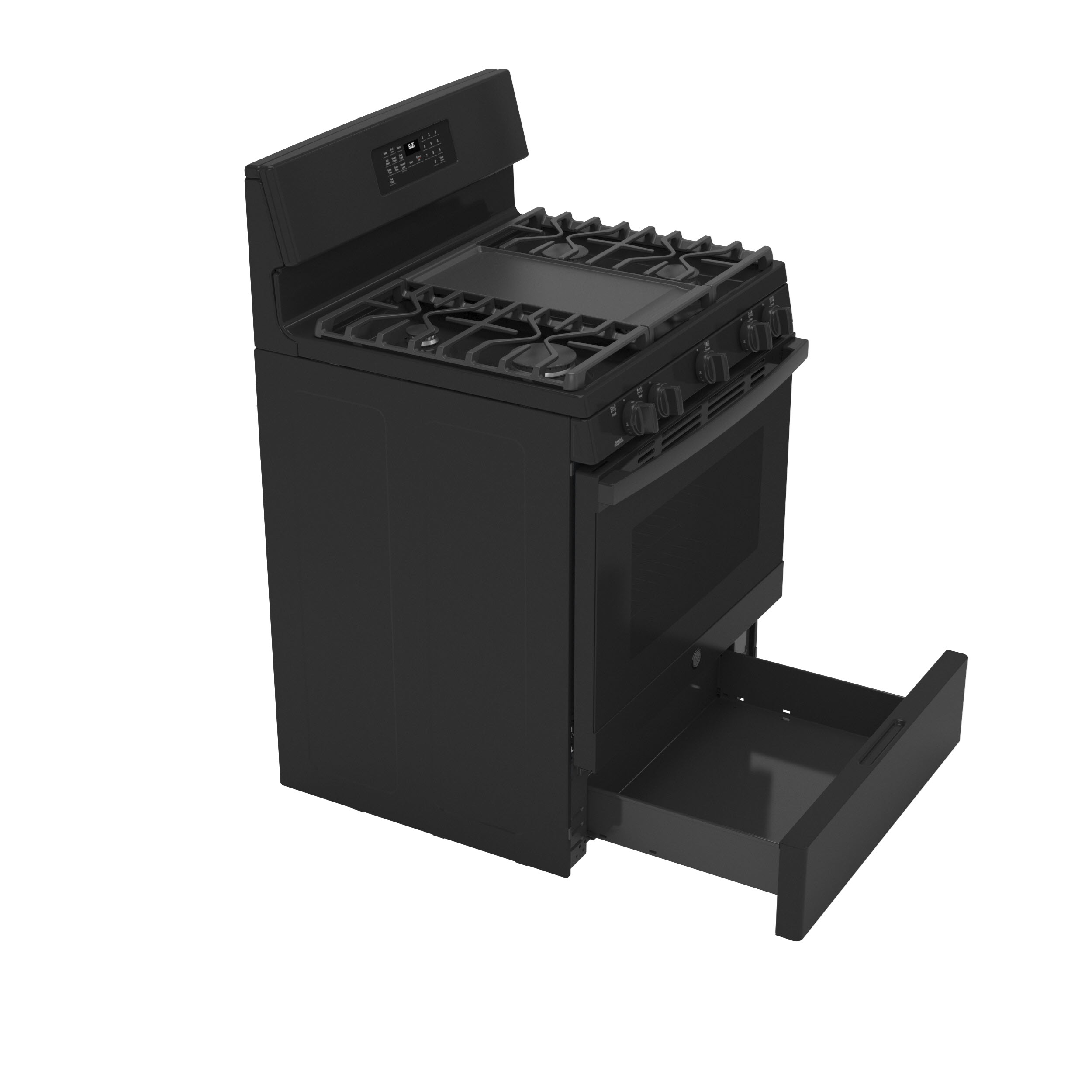

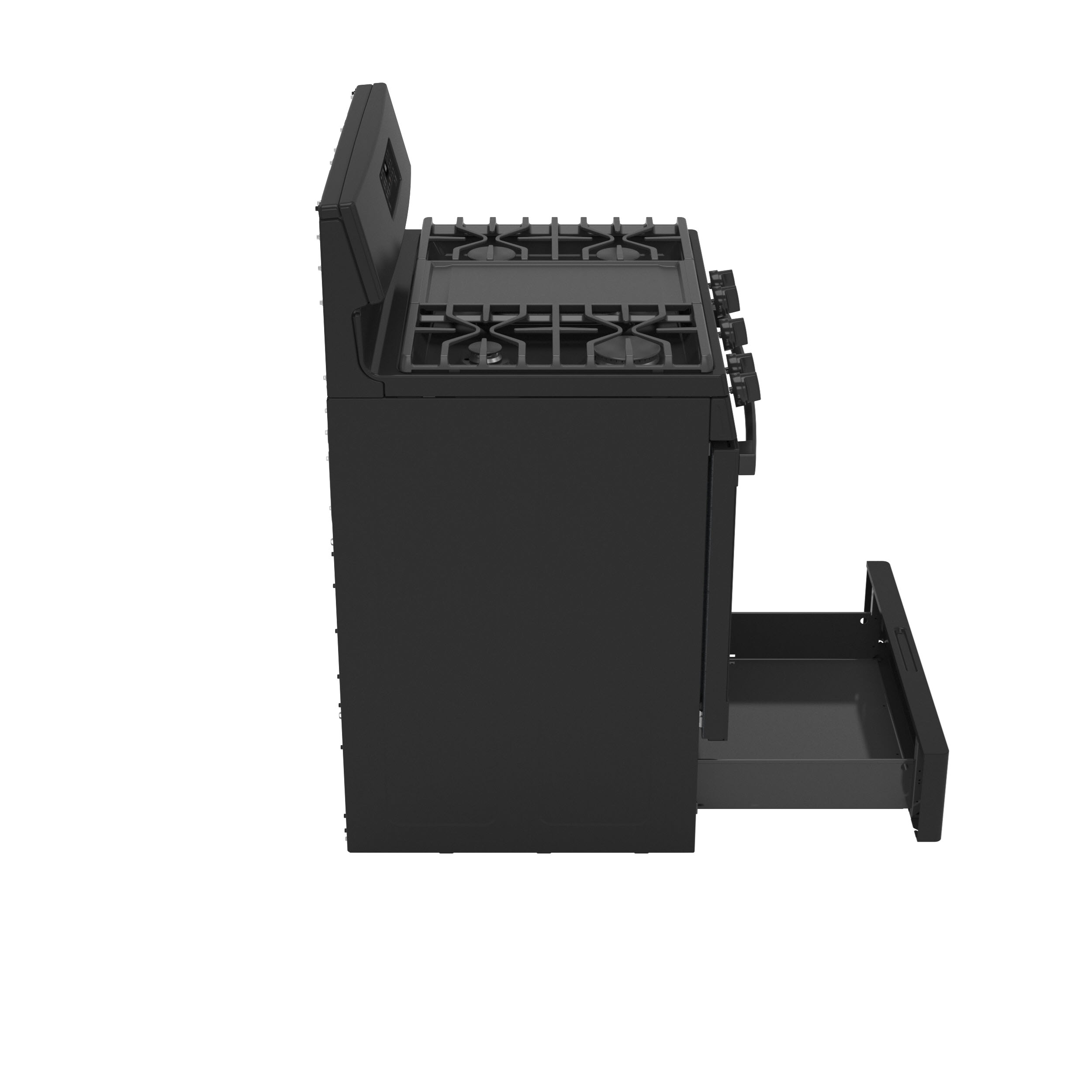

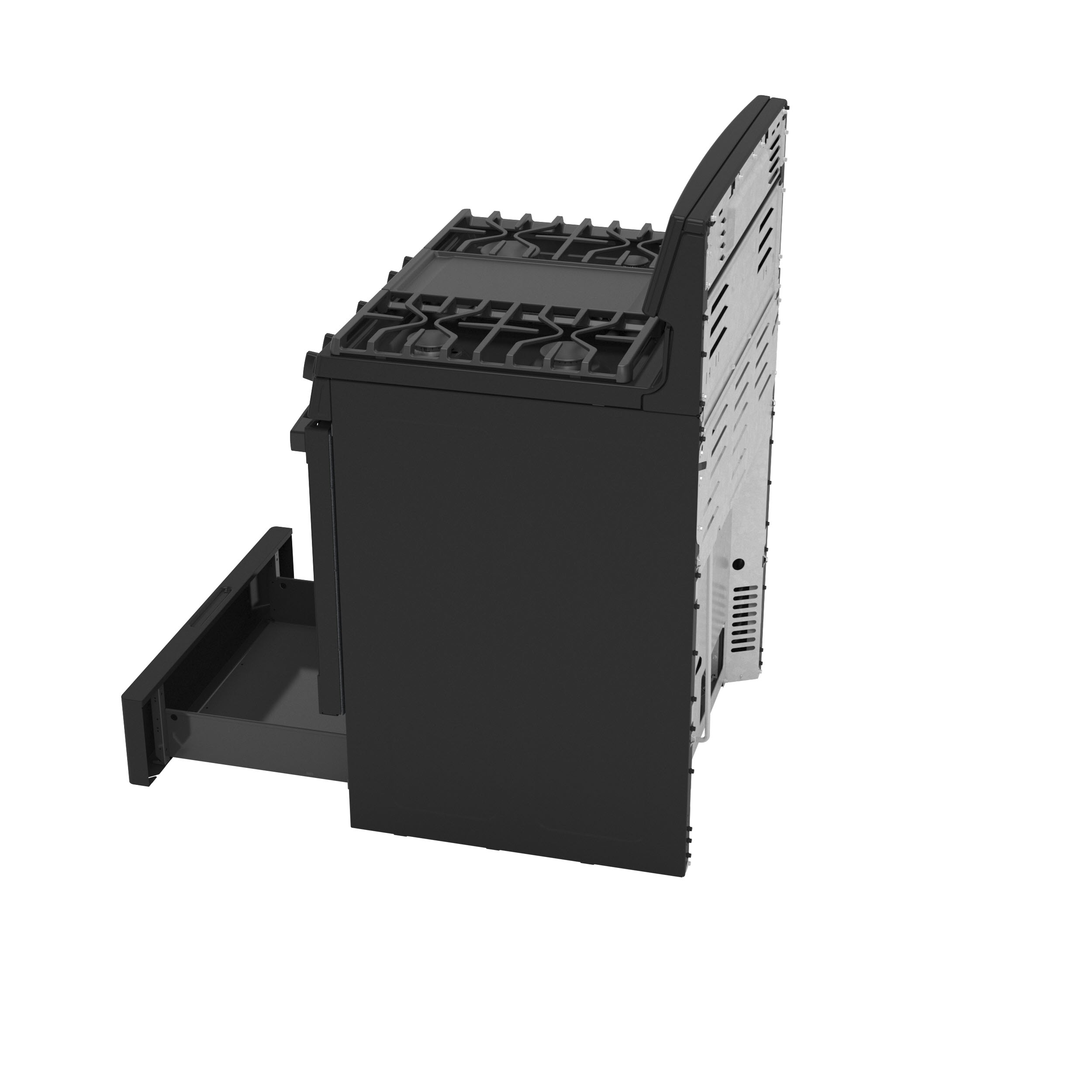

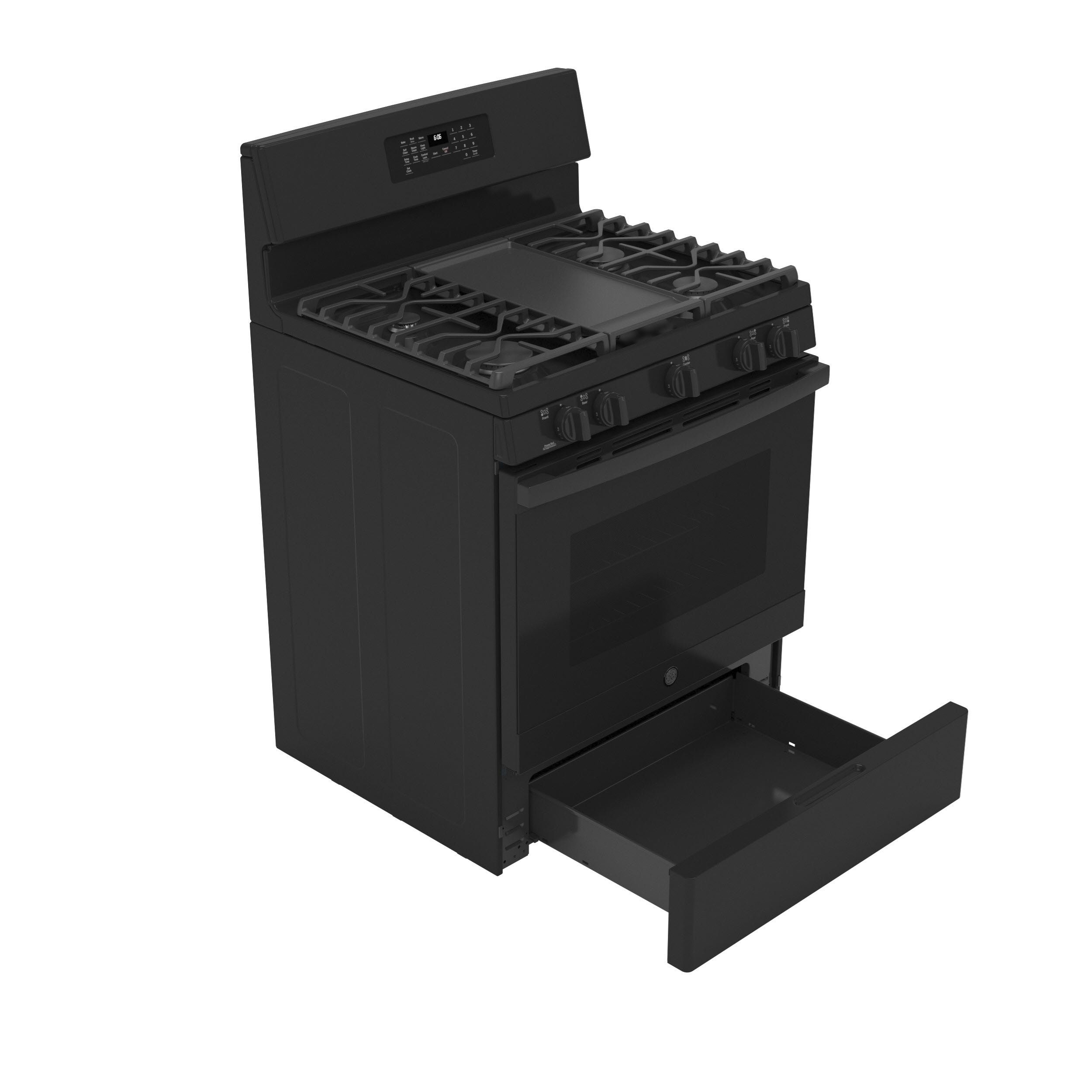

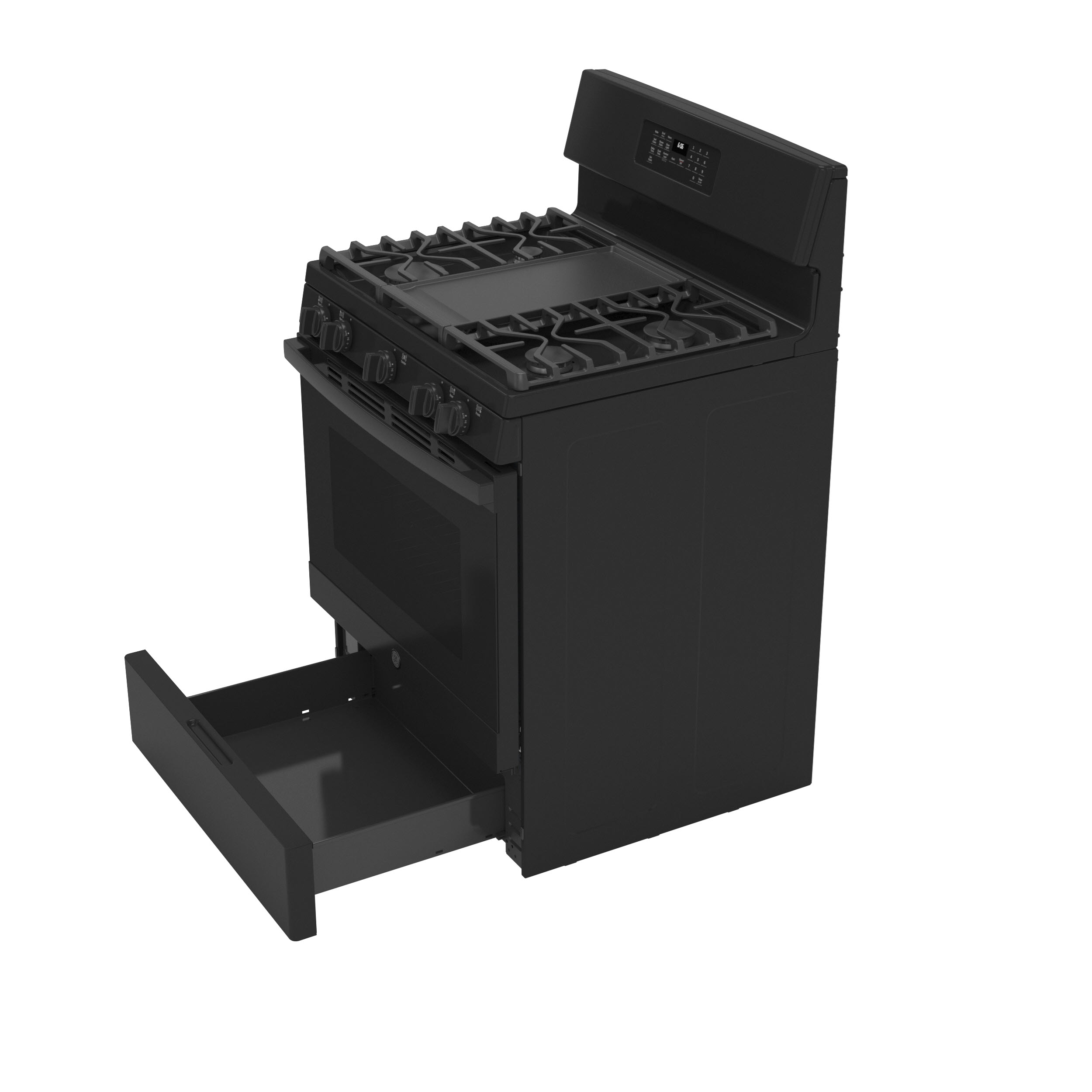

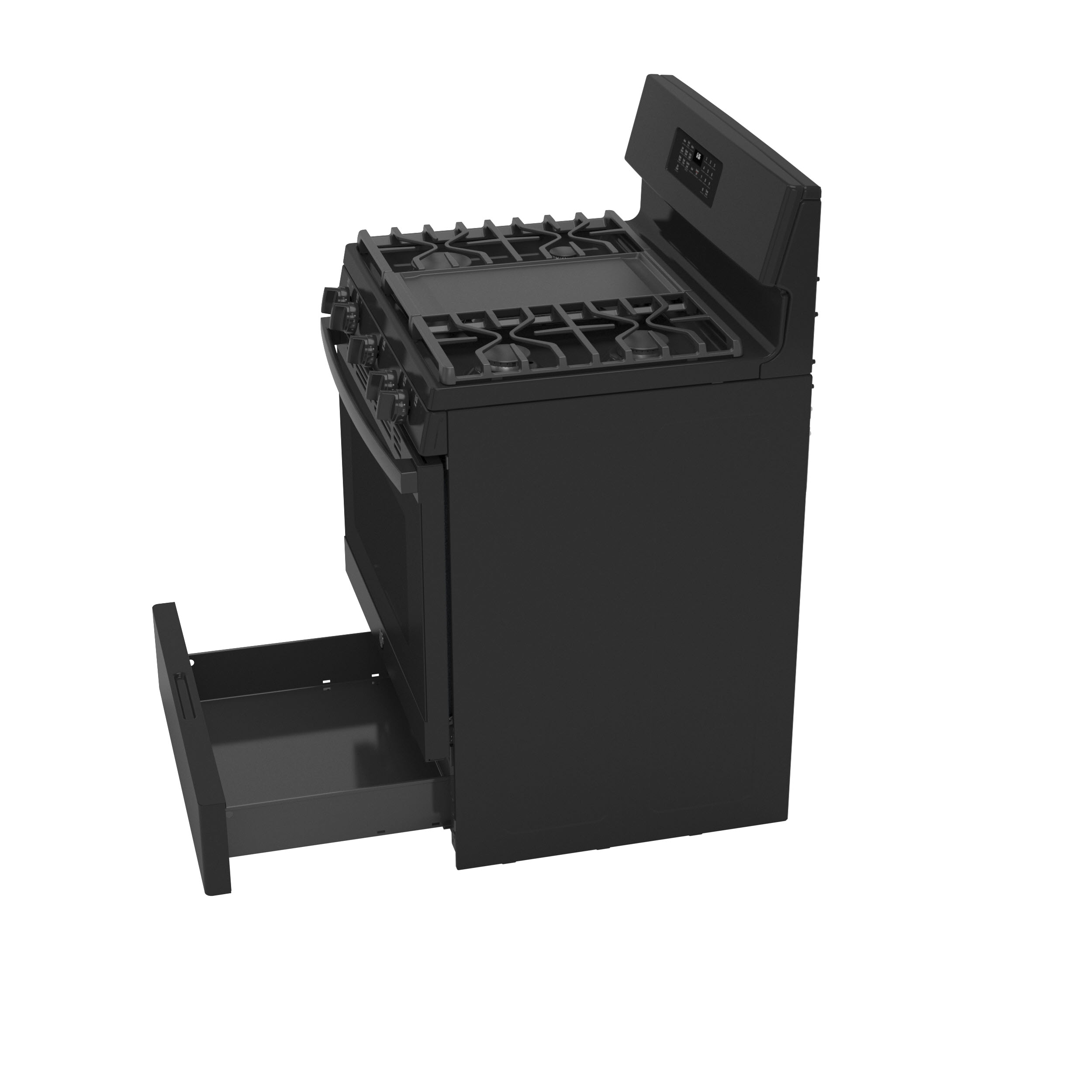

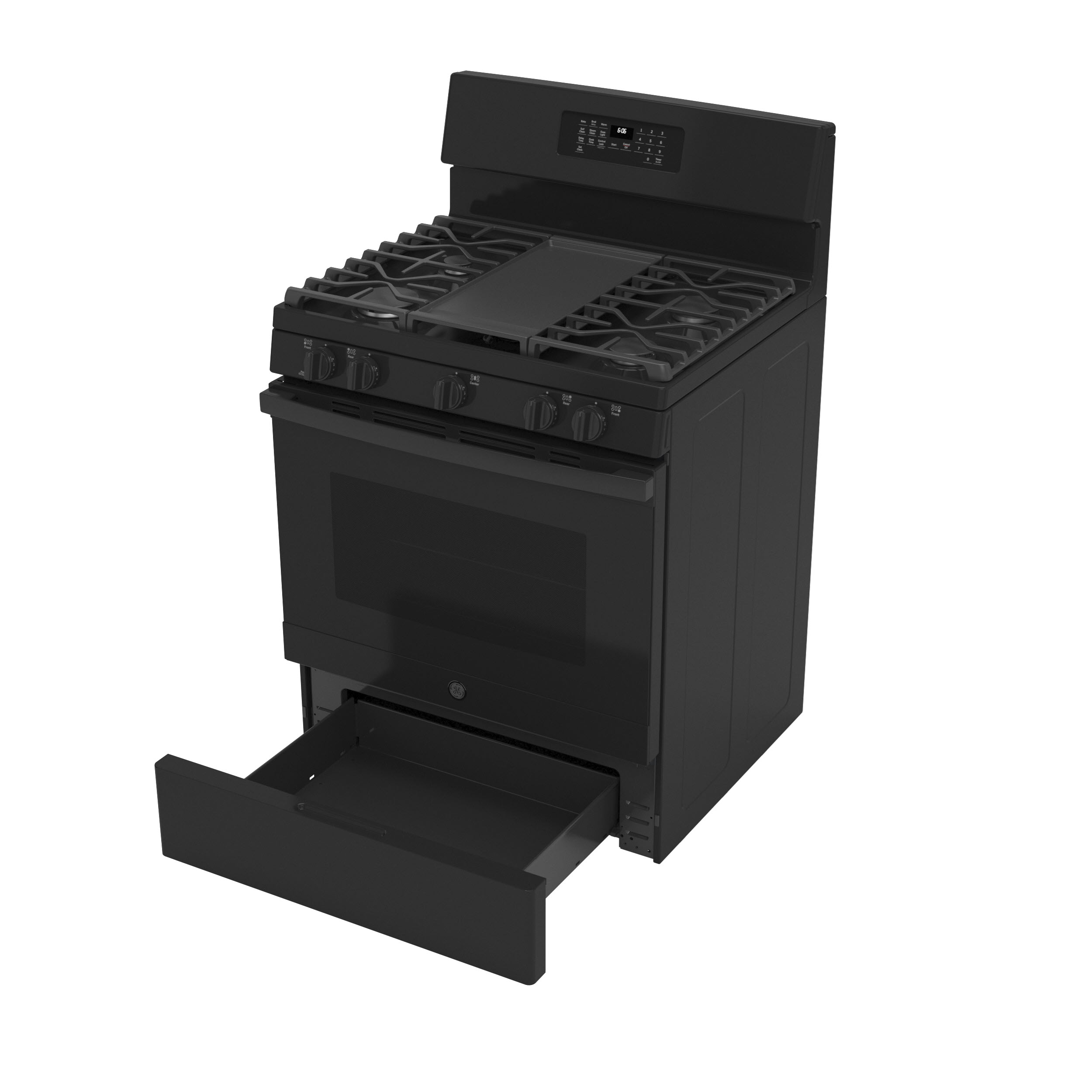

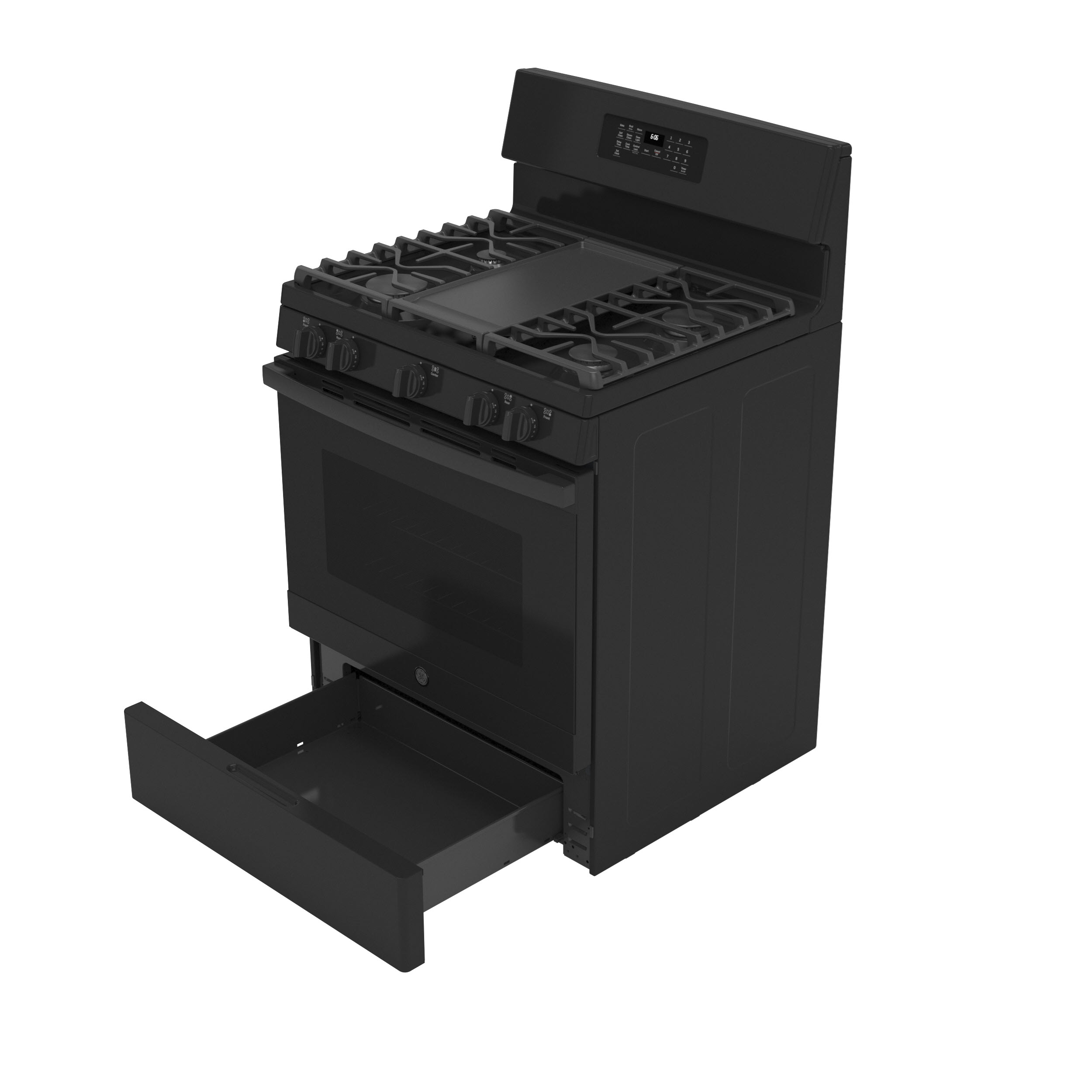

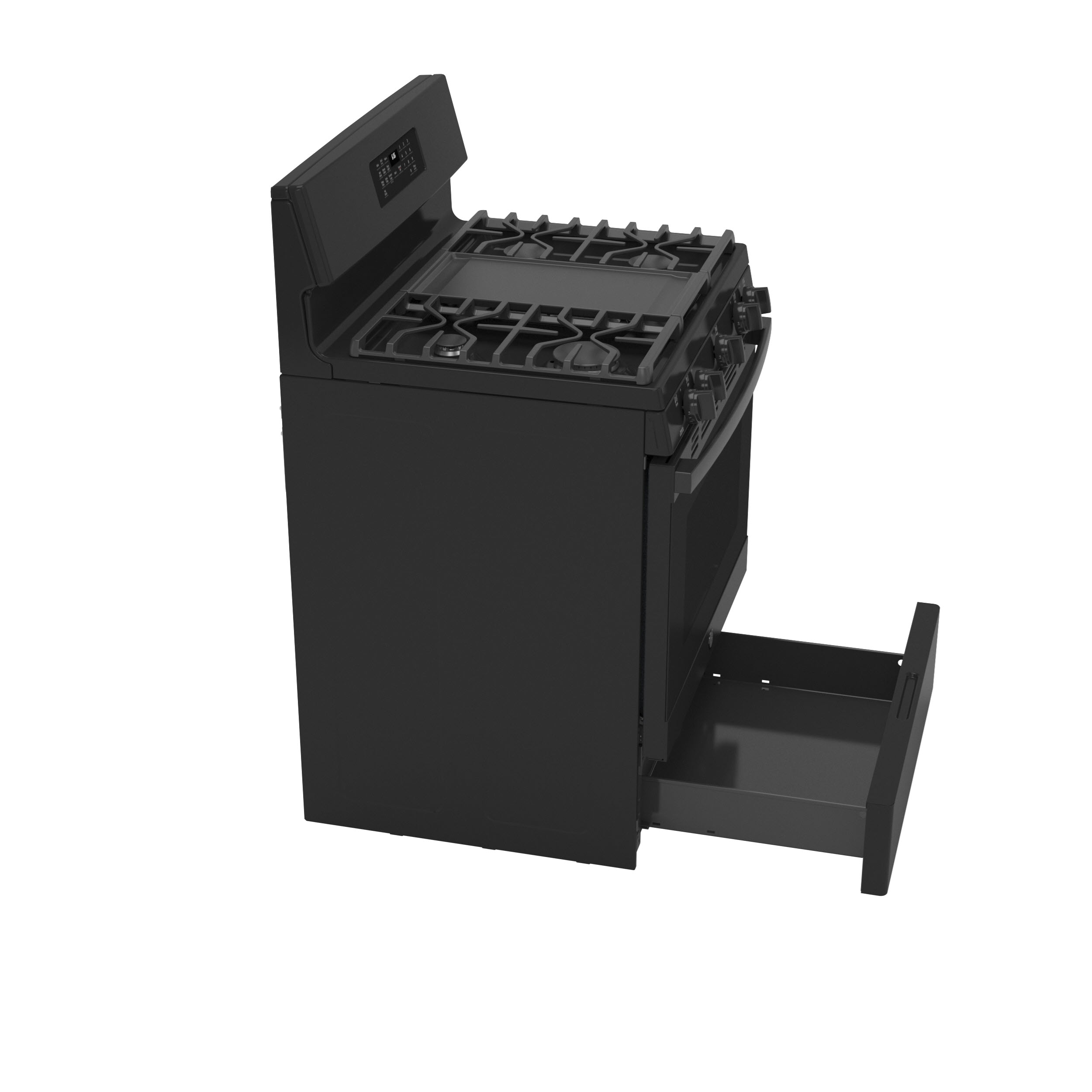

- A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen
- Delay bake technology allows you to set up the oven to start preheating and baking at a later time
- The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
Product Description
GE® 30" Free-Standing Gas Range
Specification
| ACCESSORIES | |
| Optional Accessories | WB48X21543 Roller Rack |
| Griddle Accessory | JXGRILL1 Cast Iron Reversible Grill/Griddle (Optional) |
| Grates | JXGRATE1 (Optional) |
| LP Conversion Kit | Included |
| APPEARANCE | |
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle Design | Designer Style |
| Handle Color | Black |
| Control Knobs | Color-Matched |
| Color Appearance | Black |
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| FEATURES | |
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Control Features | Audible Preheat Signal, Auto Self Clean, Control Lock Capability, Delay Bake Option, Sabbath Mode |

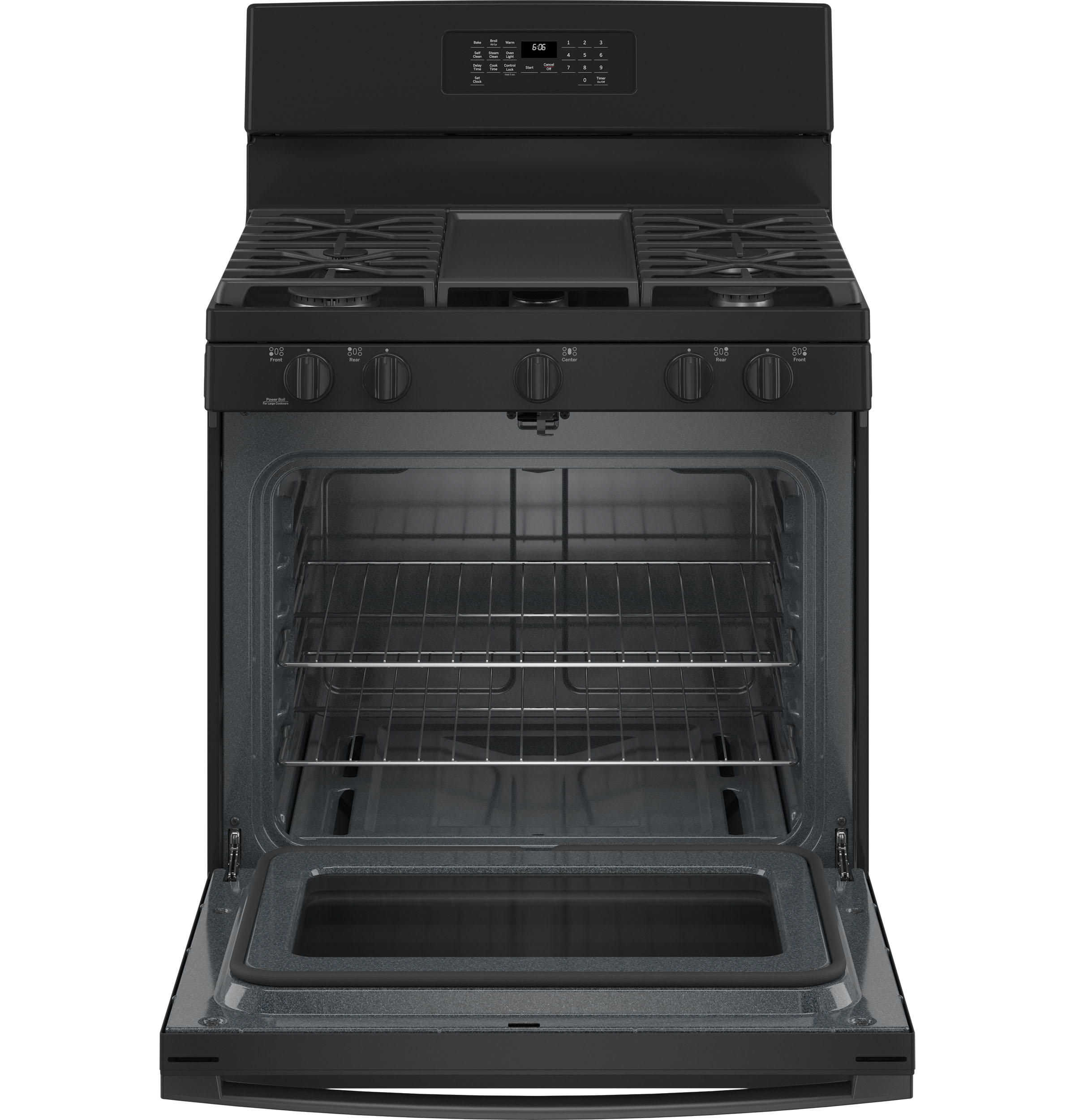

| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Griddle | WB31X24738 Integrated Non-Stick (Included) |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10,000 BTU Oval |
| Interior Oven Light | 1 Incandescent |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Digital Temperature Display, Electronic Oven Controls, Electronic Touch |
| Burner - Left Front | 18,000 BTU Power Boil |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Color-Matched, Edge-to-Edge, One-Piece Upswept, Porcelain-Enamel |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Edge-to-Edge Cooktop | Yes |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Cooktop Type | Continuous Grates |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Overall Width | 30 in |
| Overall Height | 47.25 in |
| Overall Depth | 28.75 in |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Documentation
From the Manufacturer
GE® 30" Free-Standing Gas Range
Features
Edge-to-edge cooktop
- Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
- This 18,000-BTU power boil element produces intense heat to boil water fast
- This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
- This burner setting provides low, even heat so delicate dishes don't burn
- This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners
- Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes
- These cooktop grates can be cleaned one of two ways – either in the dishwasher, or on the bottom of a self-clean oven
- A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen
- Delay bake technology allows you to set up the oven to start preheating and baking at a later time
- The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
