Model #:
JGB645SEKSS
Color:
Stainless Steel
GE® 30" Free-Standing Gas Range
GE® 30" Free-Standing Gas Range
Price
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 30
Height: 47 1/4
Depth: 28 3/4
Color
Stainless Steel
Features

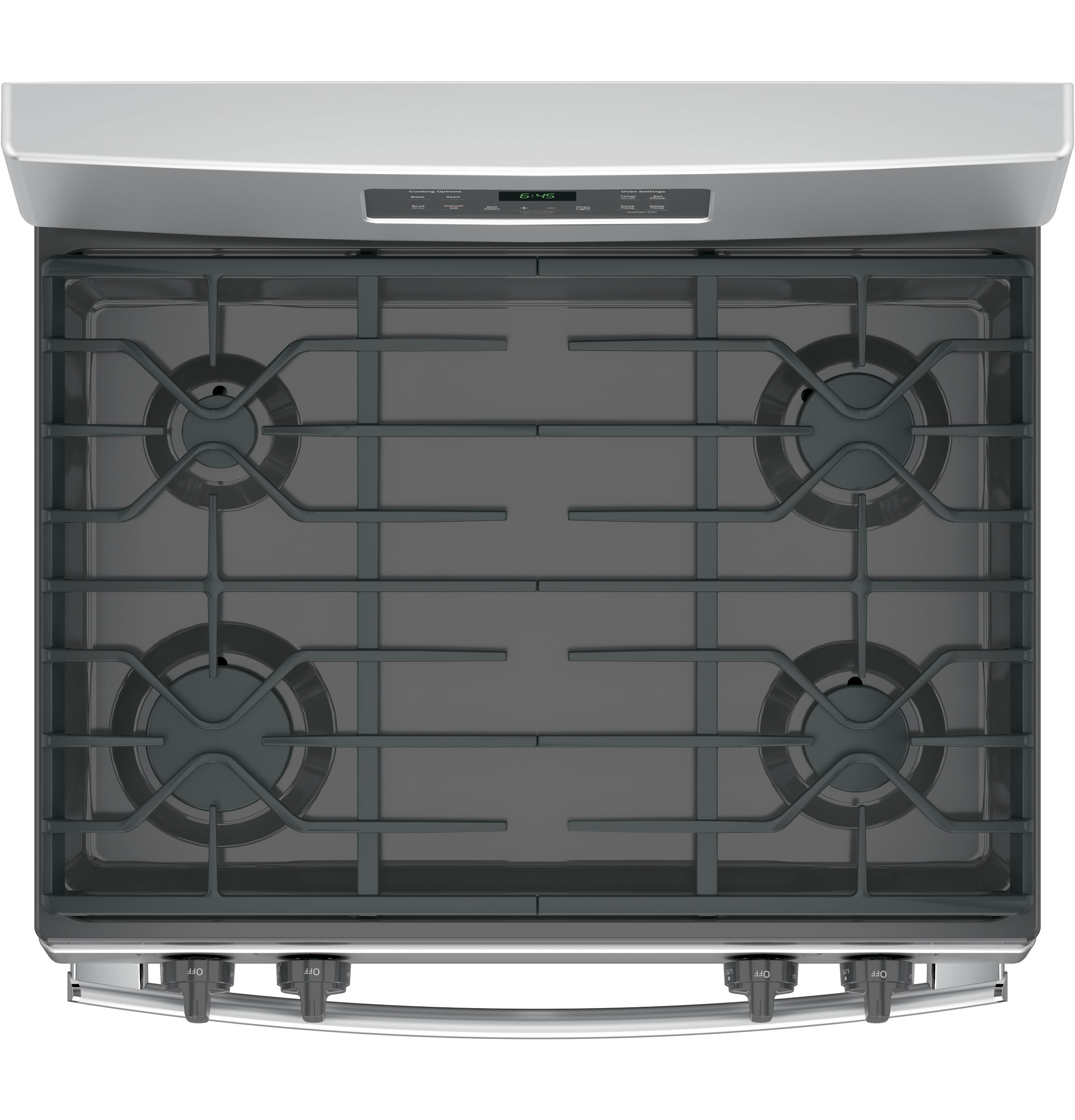

Two-piece continuous edge-to-edge cooktop
- A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
- Delivers high heat for fast boiling
- Delicate foods don’t burn with low, even heat
- Cleans the oven cavity without the need for scrubbing
- Easily and safely clean grates in the dishwasher
- Cook more dishes at once
- Contains spills and make cleaning quick and easy
- Contains spills for quick and easy cleaning
- Sealed cooktop burners contain spills and make cleaning quick and easy
Product Description
GE® 30" Free-Standing Gas Range
Specification
| ACCESSORIES | |
| Optional Accessories | WB48X21543 Roller Rack |
| LP Conversion Kit | Included |
| APPEARANCE | |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Dark Gray |
| Color Appearance | Stainless Steel/Gray |
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| FEATURES | |
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Control Features | Audible Preheat Signal, Auto Self Clean, Control Lock Capability, Delay Bake Option |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 15,000 BTU |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| OU Certified | No |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Edge-to-Edge, Gray, One-Piece Upswept, Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Edge-to-Edge Cooktop | Yes |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Voltage | 120V |
| App Filter - Cooktop Type | Continuous Grates |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (1) 9.5; (1) 15.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Overall Width | 30 in |
| Overall Height | 47.25 in |
| Overall Depth | 28.75 in |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Documentation
From the Manufacturer
GE® 30" Free-Standing Gas Range
Features
Two-piece continuous edge-to-edge cooktop
- A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
- Delivers high heat for fast boiling
- Delicate foods don’t burn with low, even heat
- Cleans the oven cavity without the need for scrubbing
- Easily and safely clean grates in the dishwasher
- Cook more dishes at once
- Contains spills and make cleaning quick and easy
- Contains spills for quick and easy cleaning
- Sealed cooktop burners contain spills and make cleaning quick and easy
