Model #:
JD630DFBB
Color:
Black

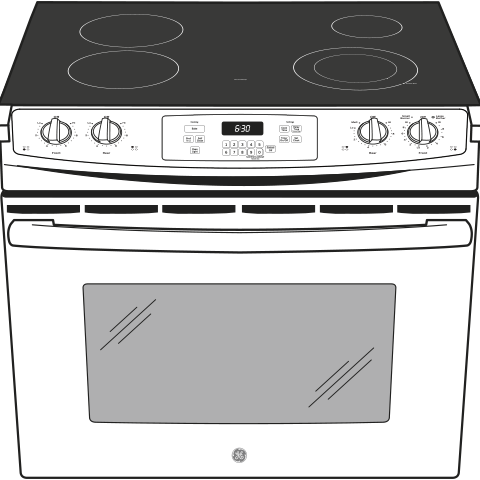

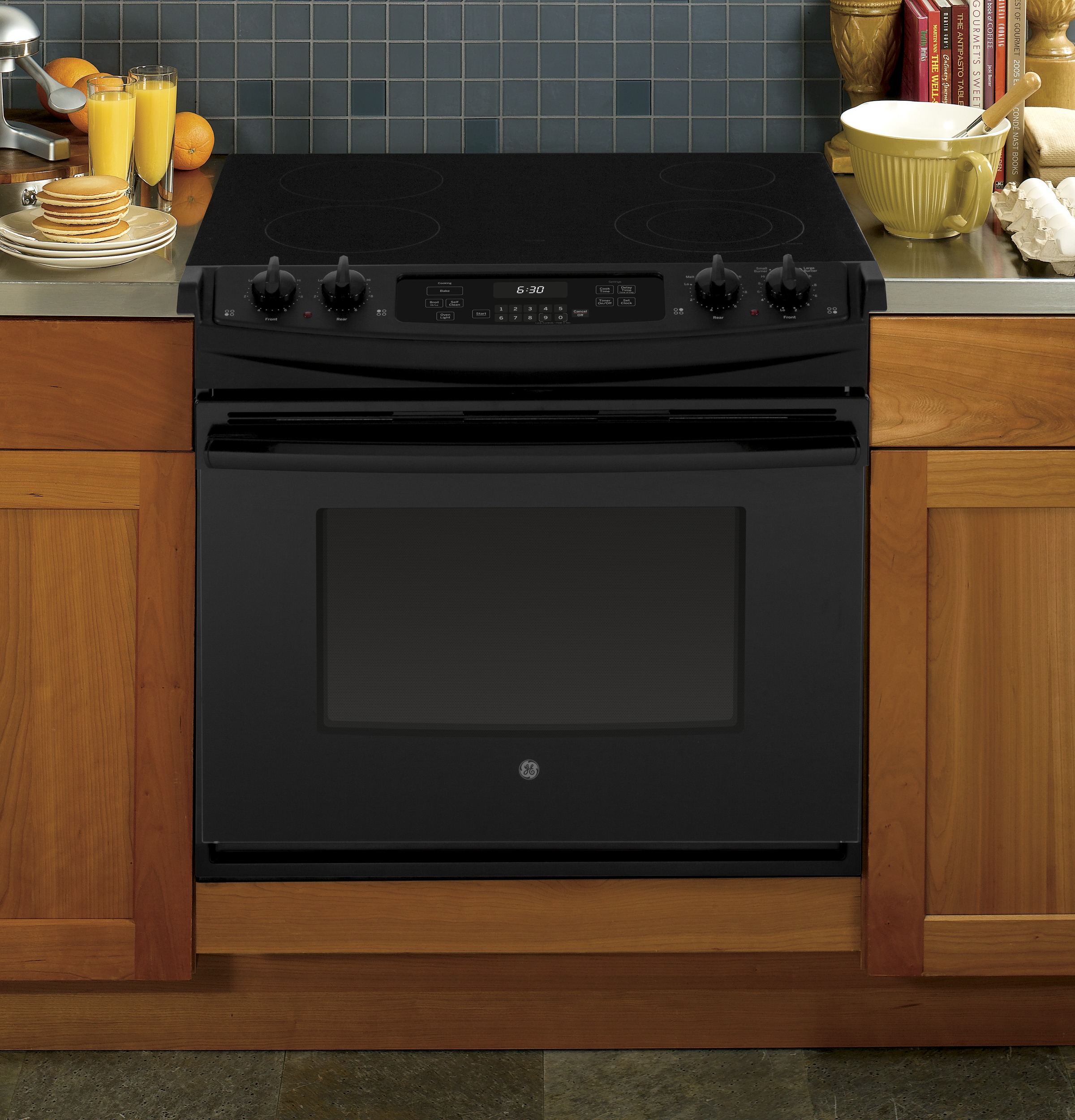

GE® 30" Drop-In Electric Range
GE® 30" Drop-In Electric Range
Price
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 31 1/4
Height: 27
Depth: 28 1/2
Color
Black
Also Comes In
Model #:
JD630DFWW
White
Features
9"/6" Power Boil element
- Produces rapid, powerful heat
- Cleans the oven cavity without the need for scrubbing
- Smooth cooktop easily wipes clean
- Enjoy a clean and sleek appearance
- Upper and lower elements produce even heat and great results
- Electronic touch pads are easy to operate
Product Description
GE® 30" Drop-In Electric Range
Specification
| APPEARANCE | |
| Handle | Designer Style |
| Installation | Flush Appearance |
| Oven Door Features | Big View Oven Window, Glass Door |
| Handle Color | Black |
| Control Knobs | Color-Matched, Weighted |
| Color Appearance | Black on Black |
| CAPACITY | |
| Total Capacity (cubic feet) | 4.4 cu ft |
| FEATURES | |
| Oven Control Features | Audible Preheat Signal, Auto Oven Shut-Off with Override, Certified Sabbath Mode, Control Lock Capability, C° or F° Programmable, Delay Bake Option With Cook & Hold, Electronic Clock & Kitchen Timer |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 8" 2000W |
| Oven Cleaning Type | Self-Clean |
| Product Type | Drop-In |
| Heating Element "ON" Indicator Light | 2 |
| Cooktop Type | Radiant Smoothtop |
| Fuel Type | Electric |
| Element - Right Front | 9"/6" 3000W Power Boil |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Control Type | Digital Temperature Display, Electronic, Touchpads |
| Hot Surface Indicator Lights | 4 |
| Sabbath Mode | Yes |
| Element - Left Rear | 8" 2000W |
| Cooking Technology | Traditional |
| Oven Features | 6-Pass Bake Element, 6-Pass Broil Element |
| Melt Setting | Yes |
| OU Certified | No |
| Cooktop Burner Type | Radiant, Smoothtop |
| Element - Right Rear | 6" 1200W |
| Cooktop Surface | Black Ceramic Glass, Overhanging Cooktop |
| Oven Rack Positions (Single or Upper/Lower) | 7 |
| Self-Clean Oven Door Lock | Automatic |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Drop-In |
| App Filter - Fuel Type | Electric |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Cooktop Type | Radiant Smoothtop |
| POWER / RATINGS | |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3420W |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 11.9 |
| Bake Wattage | 3410W |
| KW Rating at 208V | 8.9 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 158 lb |
| Depth Without Handle | 25.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 179 lb |
| Overall Width | 31.25 in |
| Cabinet Opening | 30 in |
| Overall Height | 27 in |
| Overall Depth | 28.5 in |
| Depth with Door Open | 44.625 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |
| Cooktop Width | 31.25 in |
From the Manufacturer
GE® 30" Drop-In Electric Range
Features
9"/6" Power Boil element
- Produces rapid, powerful heat
- Cleans the oven cavity without the need for scrubbing
- Smooth cooktop easily wipes clean
- Enjoy a clean and sleek appearance
- Upper and lower elements produce even heat and great results
- Electronic touch pads are easy to operate
