Model #:
GDF510PGMBB
Color:
Black
GE® Dishwasher with Front Controls
GE® Dishwasher with Front Controls
Price
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 23 3/4
Height: 34
Depth: 24
Color
Black
Also Comes In
Model #:
GDF510PGMWW
White
Features
Dry Boost™
- Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option
- Enjoy a quality clean when you’re short on time
- Get table-ready silverware thanks to powerful jets on the spray arm that focus on silverware baskets
- To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms
- Provides optimal water temperature for dependable performance

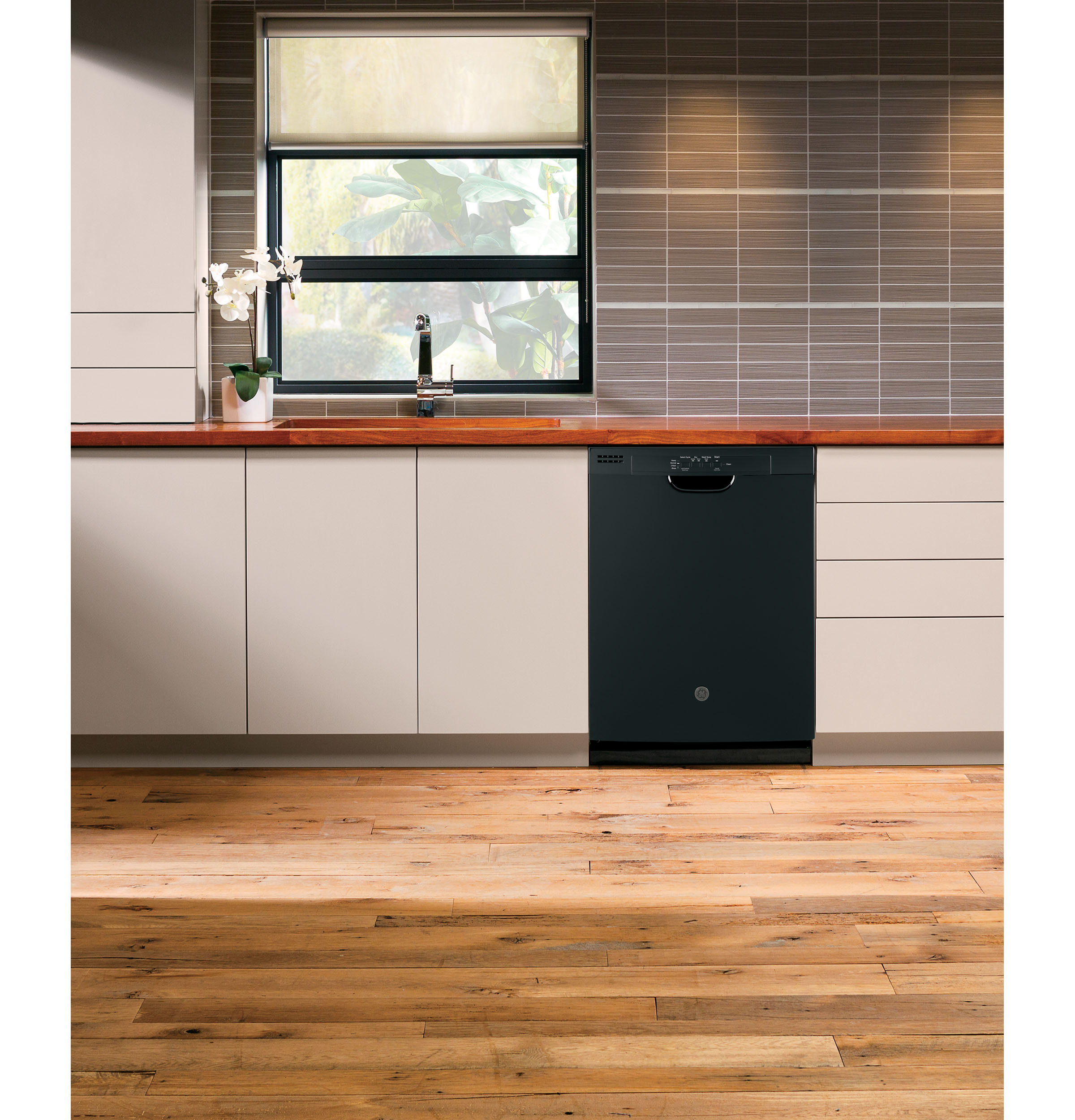

- Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity
- Installation over built-up floors is simple with the ability to adjust the dishwasher height to 33-3/8" - 34-5/8"
- Great for heavily soiled dishes and cookware
- 59 dBA
Product Description
GE® Dishwasher with Front Controls
Specification
| APPEARANCE | |
| Installation | Built-Up Floor Capable, Flush Cabinet Installation, Side or Top Mount Install Brackets Included |
| Handle Color | Black |
| Door Style | Long Door |
| Door Appearance | Contour door |
| Color Appearance | Black |
| Control Panel Color | Black |
| Handle Design | Recessed |
| ECONOMICAL / QUIET | |
| Door Insulation | Insulation |
| Quiet Package | 59 dBA |
| Motor Type | Single Speed |
| Quiet Features | Quiet Water Valve, Sealed Toe Kick |
| FEATURES | |
| Wash System | 500 Series |
| Lower Rack | Ball-Tip Tines |
| Tub Type | Tall Tub |
| Leveling System | 4 Leveling Legs |
| Number of Place Settings | 14 |
| Tub Liner | Plastic |
| Dishwasher Options | Child Lock, Dry Boost™, Heated Dry, Start/Reset, Wash TempBoost |
| Latch | Center Pull |
| Number of Options | 5 |
| Style | Built-In Front Control |
| Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |

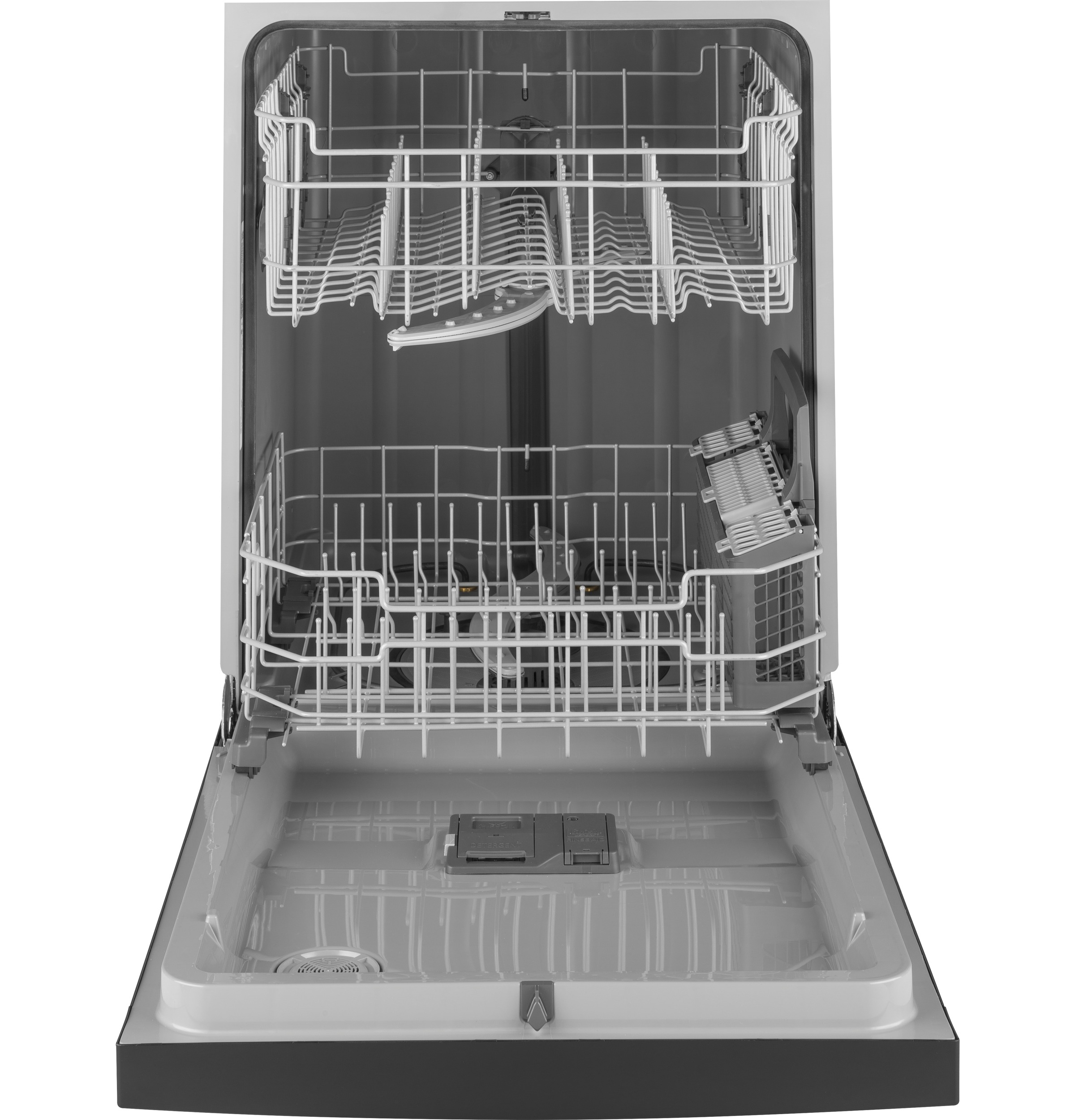

| Rack Features | 1 Piece Silverware Basket with 3 Cell Covers, Ball-Tipped Tines |
| Door Liner | Clean Design with Plastic |
| Dishwasher Cycles | 1 Hour Wash, Heavy Wash, Normal Wash, Rinse |
| Rack Color | Silver |
| Dispenser | Rinse Aid with Indicator and Adjustment |
| WiFi Connect | Optional (Requires part no. PBX23W00Y1) |

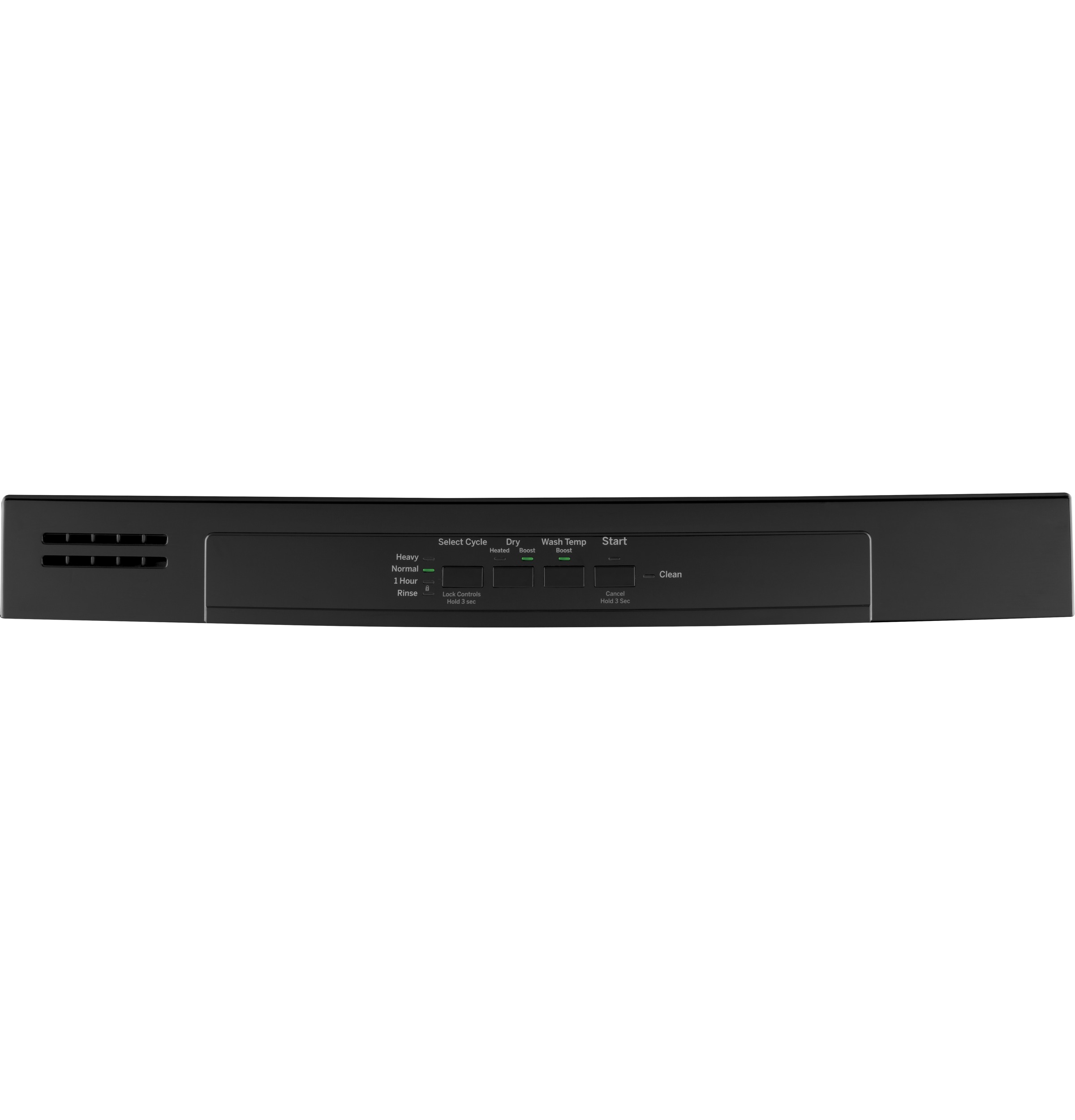

| Control Type | 4 Touchpads, Electronic Tactile Buttons, Front Controls |
| Racking System | Towerless |
| Dishwasher Drying Features | Dry Boost™, Heated Dry - On/Off |
| Wash Arms | Lower, Middle |
| Wash System Features | Automatic HotStart, Automatic Temperature Control, Dedicated Silverware Jets (on Wash Arm), Dual Pumps and Motors, Piranha™ Hard Food Disposer with removable filter |
| Exterior Style | Traditional |
| Connected Capabilities | Amazon Alexa, Amazon Dash Replenishment, IFTTT, Sonos, The Google Assistant |
| Upper Rack | Ball-Tip Tines, Removable |
| Dishwasher Control Features | 1 "Clean" Cycle Progress Indicator, Last Cycle Memory |
| Number of Cycles | 4 |
| Tub and Door Liner | Gray Plastic |
| Showroom Power Mode | Yes |
| FILTER | |
| App Filter - Cabinet Width | Dish Traditional 24 in. |
| App Filter - Stainless Steel Interior | No |
| App Filter - Product Type | Dish Built-In Front Control |
| App Filter - WiFi Connect | Optional |
| App Filter - Food Disposer | Yes |
| App Filter - Bottle Wash | No |
| POWER / RATINGS | |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Calrod Heater Watts | 800/500 |
| Volts/Hertz/Amps | 120v; 60Hz; 7.1A |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Height w/ Legs Retracted - Minimum Height | 33.375 in |
| Overall Depth | 24 in |
| Cabinet Width | 24 in |
| Net Weight | 58 lb |
| Overall Width | 23.75 in |
| Approximate Shipping Weight | 74 lb |
| Overall Height | 34 in |
| Height w/Legs Extended - Maximum Height | 34.625 in |
