36" Under Cabinet Range Hood
36" Under Cabinet Range Hood
Dimensions
Width: 36"
Height: 10-1/2"
Depth: 20"
Color
Features

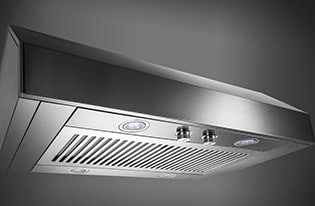

- Powerful air flow at 3 different speeds — quietly moves up to 400 cu. ft. of air per minute.

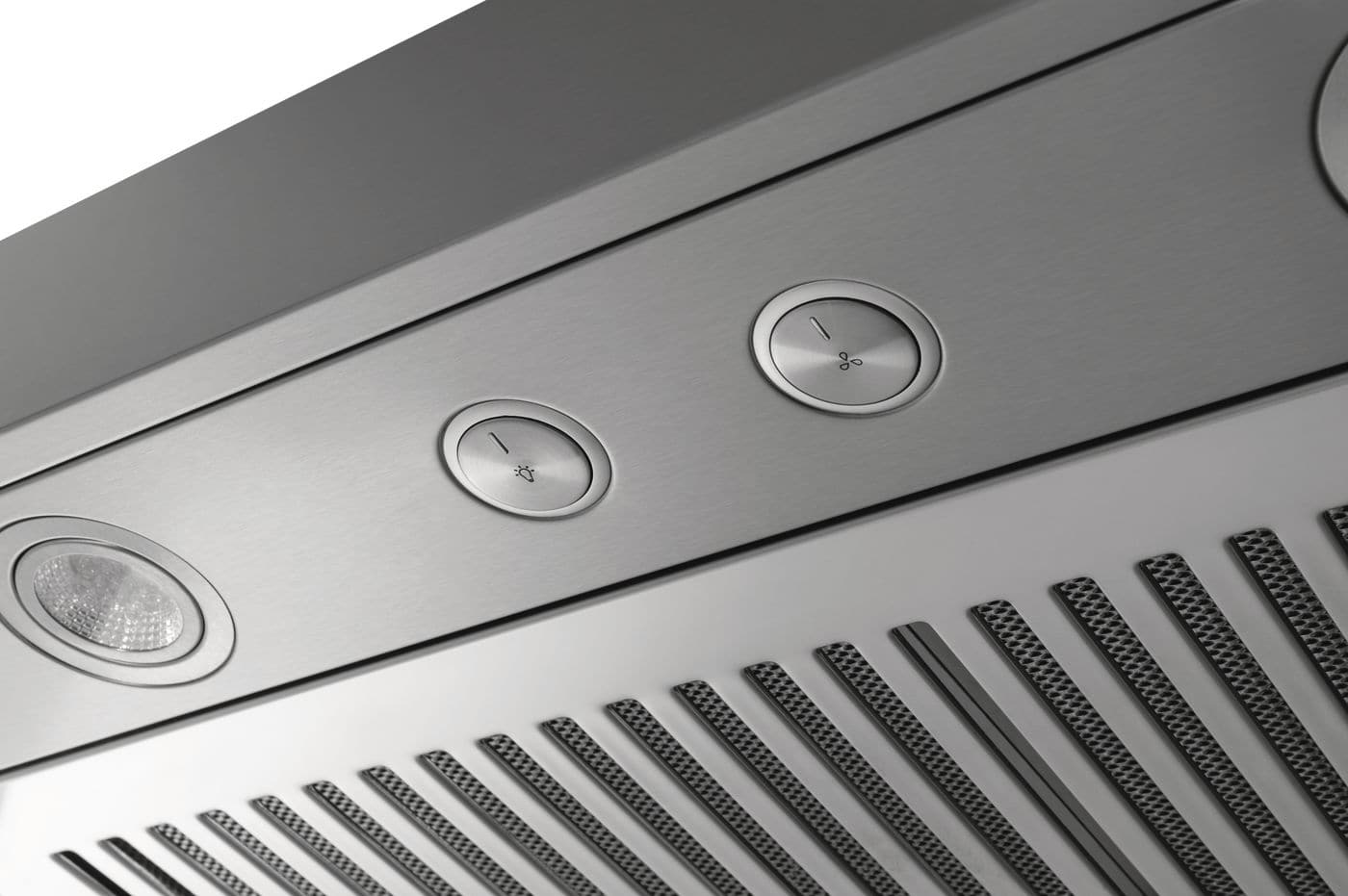

- Clear, bright view of your cooktop workspace with LED lighting for seamless meal preparation. Offers 3 different brightness levels.
- For consistently clean air circulation, use our removable, dishwasher safe filters.
- Resists fingerprints and cleans easily.
Specification
| Certifications & Approvals | |
| Agency Approval(All Brands) | UL/cUL |
| UL/cUL (ElxEProEDesFrig) | Yes - cULus |
| Controls | |
| Control Type | Knob |
| Electronic Controls w/ Display | No |
| Dimensions: Cut-Out | |
| Height | 10-3/4" |
| Dimensions: Exterior | |
| Depth | 20" |
| Height | 10-1/2" |
| Width | 36" |
| Electrical Specifications | |
| Amps @ 120 Volts | 3.25 |
| Circuit Amps | 15.0 |
| Connected Load @ 120V | 0.33 |
| Voltage Rating | 120V 60Hz |
| Watts @ 120 Volts | 330 |
| General Specifications | |
| Filter Type | Dishwasher-Safe Stainless Steel |
| Mounting Type | Easy Fit |
| PROP 65 Label | Yes |
| Ventilation/Light System | |
| Air Discharge | Vertical |
| AutoStart Heat Sensor | No |
| Blower Type | Fan |
| Charcoal Filter | Optional |
| Cooktop Light | Yes |
| Duct Diameter | 3-1/4" x 10" |
| Duct/Ductless Vent | No |
| Exhaust Duct | External |
| Exhaust Fan Capacity | 400 |
| Exhaust Fan Speeds | 3 |
| Filter Type | Dishwasher-Safe Stainless Steel |
| Filters | 2 |
| Lights | 4 |
| Non-stick Coating | Yes |
| Vent Style | Hidden |
| Work-Area Light | LED |
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Features
- Powerful air flow at 3 different speeds — quietly moves up to 400 cu. ft. of air per minute.
- Clear, bright view of your cooktop workspace with LED lighting for seamless meal preparation. Offers 3 different brightness levels.
- For consistently clean air circulation, use our removable, dishwasher safe filters.
- Resists fingerprints and cleans easily.
