30" Electric Cooktop
30" Electric Cooktop
Dimensions
Width: 28-1/2" - 29-7/8"
Height: 5"
Depth: 19-5/8" - 20-1/2"
Color
Also Comes In
Black
Features
- The Fits-More™ cooktop features five elements - allowing you to cook more at once.

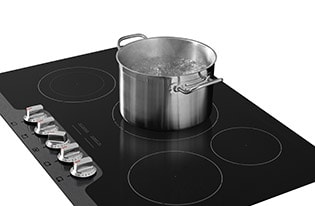

- Our powerful 3,200 watt element allows you to boil water in less than three minutes^.

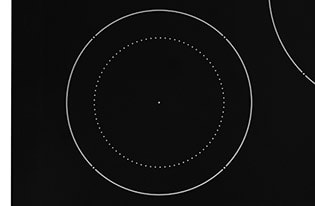

- Flexible elements expand to your cooking needs.
- We promise that your new 30" or 36" Frigidaire Gallery® brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
- Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items.
- Easily go from warm to boil.
- For a more beautiful cooktop that’s easy to clean.
- Light on your cooktop informs you when the surface is hot.
- Cooktops are approved for installation above any of our Single Electric Wall Ovens.
Product Description
Expand your cooking possibilities with this sleek Electric Cooktop by Frigidaire Gallery. The five-element smooth surface cooktop features two Space Wise elements that adjust in size to fit the diameter of your cookware. A 7 in. burner and two 6 in. burners provide even more space to sate and sear your favorite foods, giving you flexibility when preparing a picture-perfect meal for family or guests. Express-Select control knobs easily go from warm to boil, so you can regulate your heat output with accuracy. Hot surface indicators let you know when the cooking elements are still too hot to touch, keeping you and your family safe. This cooktop fits above most wall ovens to create a seamless appearance.
Specification
| Certifications & Approvals | |
| Sabbath Mode | No |
| Agency Approval(All Brands) | UL/CSA |
| ADA Compliant - All Brands | Yes |
| Controls | |
| Control Type | Mechanical |
| Control Location | Center front |
| Cooktop | |
| Left Rear | 6" - 1200 Watts |
| Cooking Surface | Black Ceramic Glass |
| Right Rear | 6" - 1200 Watts |
| Right Front | 7" - 1800 Watts |
| Hot-Surface Indicator Light | Yes |
| Center Rear | 9" - Quick Boil - 3200 Watts |
| Left Front | 5" to 7" - 750/1800 Watts |
| Cooktop Surface Type | smooth surface |
| Dimensions: Cut-Out | |
| Depth | 19-5/8" - 20-1/2" |
| Height | 5" |
| Width | 28-1/2" - 29-7/8" |
| Dimensions: Exterior | |
| Width | 30-5/8" |
| Height | 2-5/8" |
| Depth | 21-3/8" |
| Electrical Specifications | |
| Voltage Rating | 240V / 208V 60Hz |
| Amps @ 240 Volts | 38.3 / 33.2 |
| Connection Location | Right Rear |
| Connected Load @ 240V | 9.2 / 6.9 |
| Min Circuit Required | 40A |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Shipping Weight (lbs) | 65 |
| PROP 65 Label | No |
| Installation Type | |
| Oven Combo Approved | Yes |
