30" Electric Cooktop
30" Electric Cooktop
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 28-1/2" - 29-7/8"
Height: 5"
Depth: 19-5/8" - 20-1/2"
Color
Features

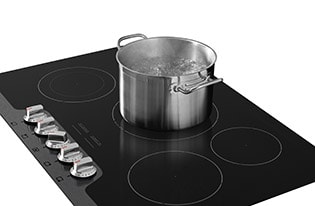

- Our powerful 3,200 watt element allows you to boil water in less than three minutes^.
- Flexible elements expand to your cooking needs.
- We promise that your new 30" or 36" Frigidaire Gallery® brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
- Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items.
- Easily go from warm to boil.
- For a more beautiful cooktop that’s easy to clean.
- Light on your cooktop informs you when the surface is hot.
- Cooktops are approved for installation above any of our Single Electric Wall Ovens.
Specification
| Certifications & Approvals | |
| Sabbath Mode | No |
| Agency Approval(All Brands) | UL/CSA |
| ADA Compliant - All Brands | Yes |
| Controls | |
| Control Type | Mechanical |
| Control Location | Center front |
| Cooktop | |
| Left Rear | 9" Quick Boil - 3200 Watts |
| Right Rear | 9" to 12" - 1800 / 3000 |
| Right Front | 6" - 1200 Watts |
| Hot-Surface Indicator Light | Yes |
| Left Front | 6" - 1200 Watts |
| Cooktop Surface Type | Smooth Surface |
| Knob Type | Plastic |
| Dimensions: Cut-Out | |
| Depth | 19-5/8" - 20-1/2" |
| Height | 5" |
| Width | 28-1/2" - 29-7/8" |
| Dimensions: Exterior | |
| Width | 30-5/8" |
| Height | 2-5/8" |
| Depth | 21-3/8" |
| Electrical Specifications | |
| Voltage Rating | 240V / 208V 60Hz |
| Amps @ 240 Volts | 35.8 / 31.3 |
| Connection Location | Right Rear |
| Connected Load @ 240V | 8.6 / 6.5 |
| Min Circuit Required | 40A |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Shipping Weight (lbs) | 40 |
| Installation Type | |
| Oven Combo Approved | Yes |
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Features
- Our powerful 3,200 watt element allows you to boil water in less than three minutes^.
- Flexible elements expand to your cooking needs.
- We promise that your new 30" or 36" Frigidaire Gallery® brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
- Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items.
- Easily go from warm to boil.
- For a more beautiful cooktop that’s easy to clean.
- Light on your cooktop informs you when the surface is hot.
- Cooktops are approved for installation above any of our Single Electric Wall Ovens.
