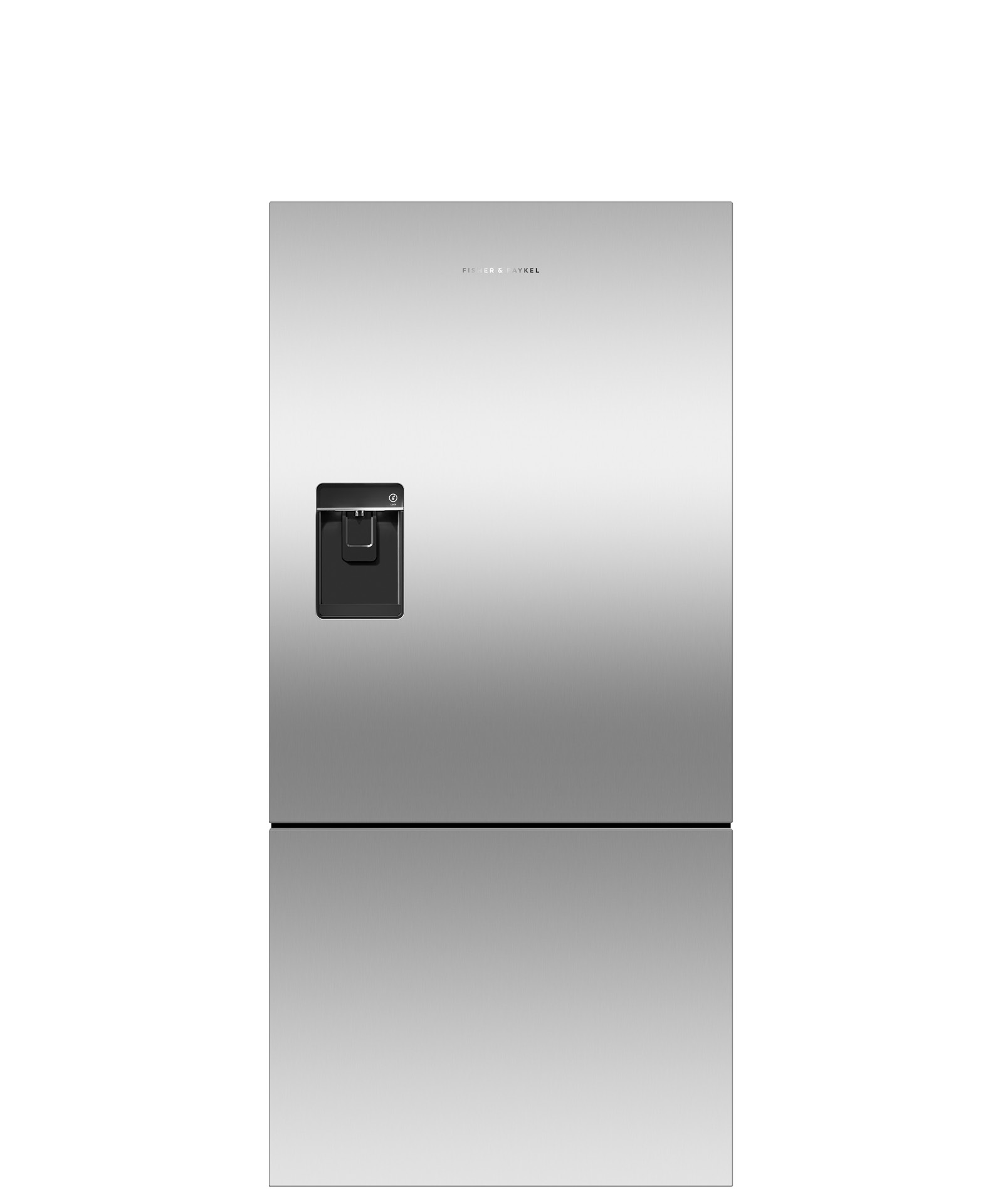

Counter Depth Refrigerator 17.5 cu ft, Ice & Water

• Your fridge adapts to daily use by cooling and defrosting only when needed. This means your fridge uses the energy it needs without compromising on food care.

• Your fruit and veges need different environments. Each storage bin creates a microclimate, which helps keep them fresher for longer.

• No more permanent dirty marks with our EZKleen feature for stainless steel fridges. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.

• Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.

• Our fridges are designed and built using quality materials. We use real stainless steel on our fridges and solid glass for shelving.

• The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your fridge.

• The internal ice maker delivers fresh ice into a dedicated bin that can be easily customized to store different volumes or simply turned off to free up freezer bin space. Ice Boost mode can temporarily increase ice production by up to 30%.

Accessories
Replacement water filter	Part number 836848

Capacity
Freezer volume	5.2 cu ft
Refrigerator volume	12.3 cu ft
Total volume	17.5 cu ft

Consumption
Energy Star Certified	yes
Energy usage	538kWh/year

Design
Bottom freezer	true
Concealed hinges	true
Door opening	left hinge
EZKleen stainless steel	true
Flat door design	true
Premium styling	true
Sleek side mounted plastic handles	true

Details
UPC Code	822843245352

Freezer
Bottle chill	true
Built-in ice maker	true
Clear plastic bins	2
Fast freeze	true
Ice Boost	true
Ice bin and scoop	true
Large plastic bin	true
Slide Out Pastry Tray	true

Measurements
Depth - door closed not including handle	27-3/8"
Height - to top of cabinet	67-3/4"
Minimum air clearance - at rear	1-3/16"
Minimum air clearance - each side	13/16"
Minimum air clearance - on top	2"

Performance
ActiveSmart™ Foodcare	true
Adaptive defrost	true
Bottle chill mode	true
External water dispenser	true
Fast freeze	true
Frost free	true
Humidity controlled crisper bin	true
Inverter controlled compressor	true
Sabbath mode	true

Product Identifier
Capacity - Refrigeration	15 cu ft-19.9 cu ft
Dimension	30'-35"
Energy rating	Energy star
Material / Color	Stainless steel
Water dispensing	true

Product Type
Refrigeration Type	Bottom Freezer

Refrigerator
Adjustable door shelves	4
Adjustable glass shelves	4
Covered door shelves	2
Door alarm	true
Front levelling feet	true
Fruit and vegetable bins	2
Full extension runners	true
Full width door shelves	2
LED lighting	true
Rear rollers	true
SmartTouch control panel	true
Spill proof removable bins	true
Stackable bottle holders	2
Ultra slim water dispenser	true

Style And Series
Product Series	Series 5
Product Style	Contemporary

Warranty
Parts & Labor	2 years
Sealed system parts	5 years

• ActiveSmart™ Refrigerator User Guide

• ActiveSmart™ Refrigerator Guide D’Utilisation

• Installation Quick Check Sheet - Ice & Water Models

• Réfrigérateur ActiveSmart™ Modèles Ice & Water, Automatic Ice et autres que Ice & Water - Instructions d'installation et guide d'utilisation

• ActiveSmart™ Refrigerator Ice & Water, Automatic Ice and non-Ice & Water - RF135B, RF170B, RF170W, RF170A and RF201A models: Installation instructions and user guide

• Energy Label - Fridge - RF170B Ice & Water Model
