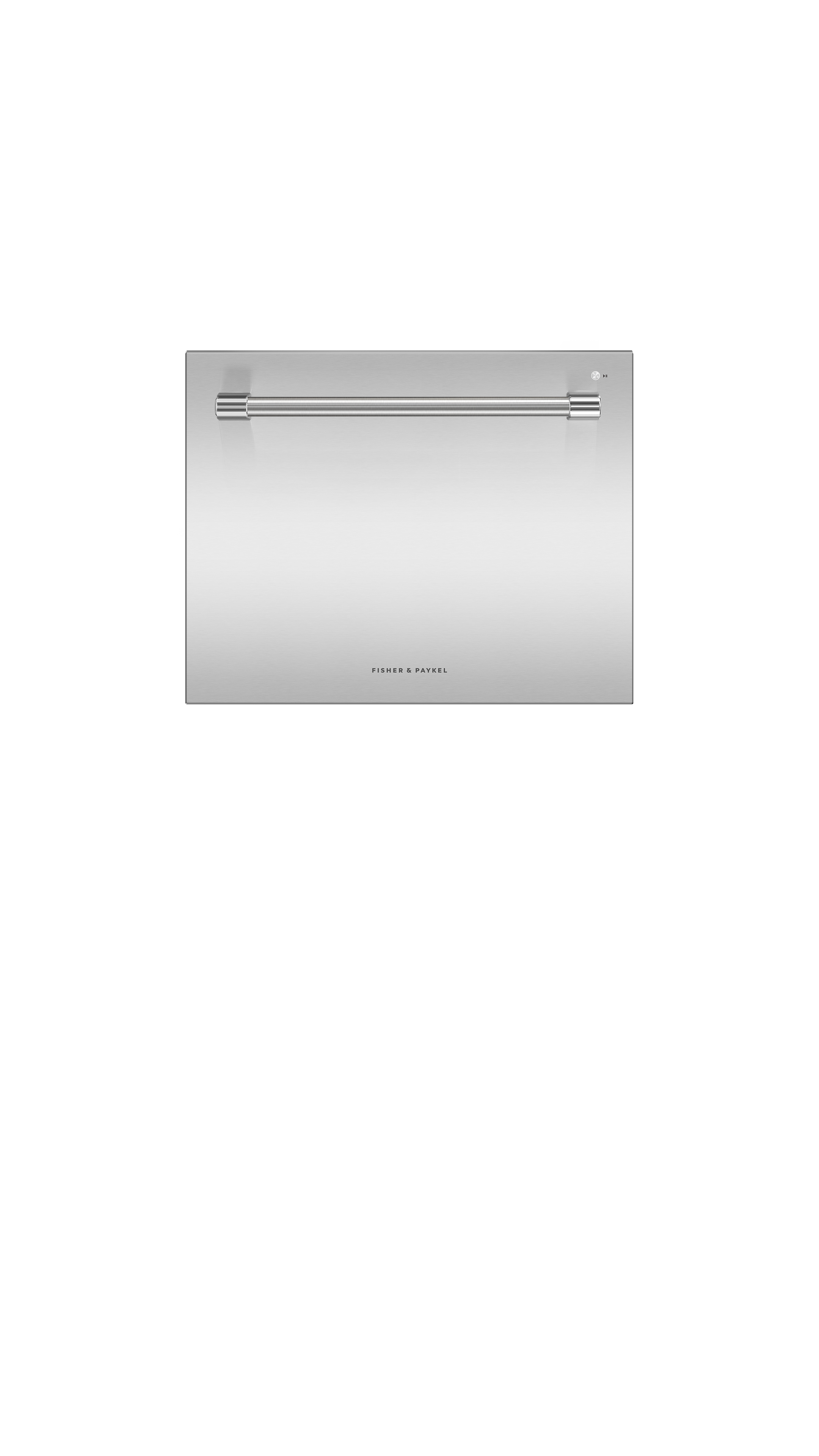

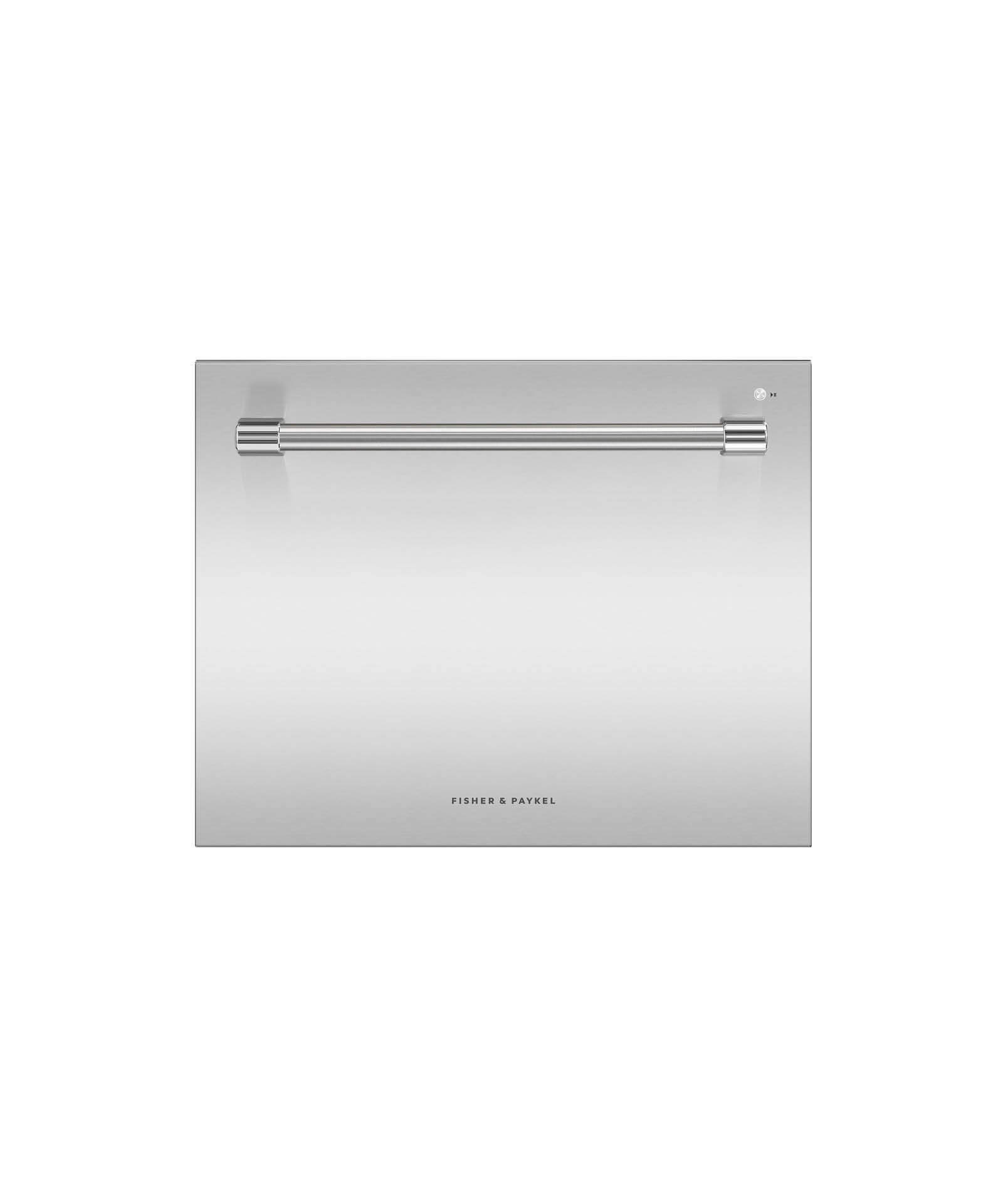

24" Single DishDrawer™ Dishwasher, 7 Place Settings, Sanitize (Tall)

• DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.

• DishDrawer™ Dishwashers can be installed in any kitchen space and are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials.

• The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.

• Running at a very low decibel rate, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.

Accessories
Contemporary Round Handle Kit	Part number 81671

Capacity and loading
Accommodates plates up to	12.25"
Adjustable height, foldable cupracks	true
Fold down tines	true
Pitch adjustable tines	true
Place settings	7

Controls
Child safety lock	true
Electronic fault/Diagnostic indicator	true
End of cycle beeps	true
Energy saving delay start option of up to 12 hours	true
Internal wash selector	true
Rinse aid indicator light and lens	true

Features
Fan assisted drying	true
Flow through detergent dispenser	true
Quiet operation	true
SmartDrive™ technology	true

Measurements
ADA compliant	true

Performance
Energy star	true
Energy usage	144kWh/year
Noise (dBA) on gentle cycle top drawer	44dBA
Water usage	1.64 gal/cycle

Power requirements
AMP draw	5A
Rated current	15A
Supply frequency	60Hz
Supply voltage	120V
Wire	3

Product Identifier
Capacity - Place settings	<10
Dimension	Tall
Energy rating	Energy star
Material / Color	Stainless steel
Number of programs	More than 10

Product Type
Dishwasher Type	Single Drawer

Style And Series
Product Series	Series 7
Product Style	Professional

Warranty
Warranty	Limited 2 Year Parts & Labor

Wash Programmes
Delicate	true
Delicate eco	true
Eco options	true
Extra Dry	true
Fast	true
Fast Eco	true
Heavy	true
Heavy eco	true
Medium	true
Normal eco	true
Quick	true
Rinse	true
Sanitise	true
Wash modifiers	3
Wash programs	15

Water connection
Supplied hose to suit 9mm male compression fitting	true
Water connection	Max 140°F
Water pressure	0.03 Mpa - 1 Mpa (4.3-145 psi)
