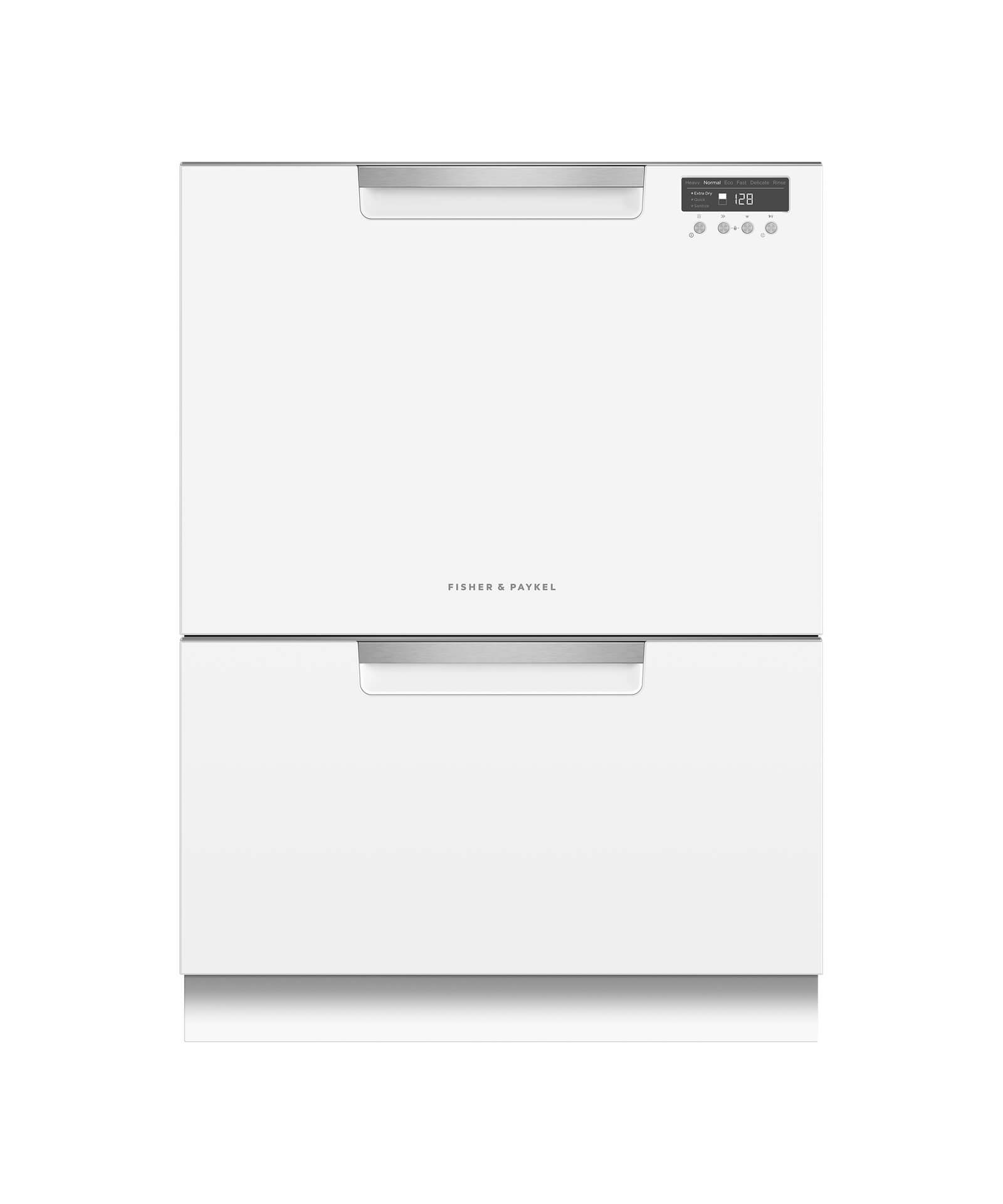

Double DishDrawer™, 14 Place Settings, Sanitize (Tall)

• DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.

• With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.

• The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.

• Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.

Accessories
Contemporary Round Handle Kit	Part number 81674
Cutlery basket	2
Kick strip	true
Knife clip & Multipurpose clip	true

Capacity and loading
Accommodates plates up to	12.25" (top) 11" (bottom)
Adjustable height, foldable cupracks	true
Fold down tines	true
Pitch adjustable tines	true
Place settings	14

Control
Child lock	true
Electronic fault/Diagnostic indicator	true
End of cycle beeps	true
Energy saving delay start option up to 12 hrs	true
Rinse aid indicator light	true

Features
Fan assisted drying	true
Flow through detergent dispenser	true
Quiet operation	true
SmartDrive™ technology	true

Measurements
Depth of toekick recess (to back of front panel)	1 1/2" - 4"
Dimensions (excl handle)	H34" - 36 3/8" x W23 9/16" x D22 9/16"
Height of toekick panel (adjustable)	2 13/16" - 5"

Performance
Energy star	true
Energy usage	265kWh/year
Noise (dBa) on delicate cycle top drawer	44
Water usage	3.44

Power requirements
AMP draw	9.6A
Rated current	15A
Supply frequency	60Hz
Supply voltage	120V
Wire	3

Product Identifier
Capacity - Place settings	10-15
Dimension	Tall
Energy rating	Energy star
Material / Color	White
Number of programs	More than 10

Product Type
Dishwasher Type	Double Drawer

Style And Series
Product Series	Series 7
Product Style	Contemporary

Warranty
Warranty	Limited 2 Year Parts & Labor

Wash programs
Delicate	true
Extra Dry	true
Fast	true
Heavy	true
Medium	true
Normal eco	true
Quick	true
Rinse	true
Sanitize	true
Wash modifiers	3
Wash programs	15

Water connection
Water connection	Max 140°F
Water pressure	0.03 Mpa - 1 Mpa (4.3-145 psi)

• Service & Warranty booklet

• DishDrawer™ Dishwasher User Guide - DD60 and DD24 Double and Single Models

• Single DishDrawer™ Dishwasher Installation Manual - DD24SA & DD24SCT Models

• Guide de Demarrage Rapide - Lave-vaisselle DishDrawer™ modeles DD60DC, DD24DC, DD60SC et DD24SC

• Quick Start Guide DishDrawer™ Dishwasher - DD60DC, DD24DC, DD60SC and DD24SC Models

• Lave Vaisselle DishDrawer™ Guide D'utilisation - DD60 and DD24 Modèles

• Double DishDrawer™ Dishwasher Installation Manual - DD24DA & DD24DCT Models

• Energy Label DishDrawer™ Dishwasher - DD24DA & DD24DCT Models
