WTG86403UC, Compact Condensation Dryer
WTG86403UC, Compact Condensation Dryer
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 23 9/16
Height: 33 2/16
Depth: 24 2/16
Color
Features
- The 300 Series Dryer is a perfect companion piece to the 300 Series Washer, Matching in Quality, Performance and Design
- eliminates the need for external ducting and a blower to exhaust hot air
- Reduces creasing and wrinkle build up.
- Bosch dryers are ENERGY STAR® certified for year-round energy savings.
- can be installed in multiple configurations at 24".
Product Description
Key Features ENERGY STAR® Qualified 15 Dry Cycles: Permanent Press, Permanent Press Extra Dry, Permanent Press Damp, Delicates, Quick 40, Time Dry, Hand Wash / Wool, Air fluff/No Heat, Cotton Dry, Cotton Extra Dry, Towels, Sanitize, Jeans, Heavy Duty, Quick Dry Auto 8 Options: Dry Level, Time Dry, Finish in, Wrinkle Block, Low Heat, Signal, Start/Pause, Child Lock Design Large LED Display with Remaining Time Perfect Design Match to Bosch 300 Series Washer Galvalume Drum Neat White - European Design See-thru White Door AntiVibration Design Reduces Vibration Performance The Sensitive Drying System Uses Warm, Mild Air to Gently Dry Laundry Sensor-Controlled Automatic Drying Programs Intelligent Sensors Prevent Overheating Lower Temperatures Gently Dry Delicate Laundry Items Unique Drum Pattern Creates Air Cushions to Protect Clothes 4 Temperature Settings Efficiency Moisture Sensor Prevents Wasted Energy and Overdrying Convenience Condensation Drying Doesn't Require Ducting Extra Fine Double Lint-Filter for Easy Cleaning Child Lock Option 24 Hour Finished In Timer Plug Type: 240V; NEMA 6-15 (3 Prong). Dryer Is Also Supplied With A Power Adaptor To Fit A Standard 4-Prong 30A Dryer Receptacle (NEMA 14-30R) And Powers Both Bosch Washer and Dryer Capacity Large Capacity on Compact Footprint 4 Cubic Foot Drum - Large Capacity for Compact Dryers Bosch Dryer Can Be Stacked on Washer with Stacking Kit Accessory (With or Without Pull-out Tray) Stackable - Space Saving
Specification
| General | |
| Brand | Bosch |
| ActiveWear | No |
| SKU | WTG86403UC |
| Internal article number | WTG86403UC |
| EAN code | 4242005226177 |
| Construction type | Freestanding |
| Type of control | Electronic |
| Type of control | LCD;push-button |
| Removable work top | No |
| Air fluff / no heat | No |
| Bull eye | Glass window |
| Loading type | Front loader |
| Door hinge | Right |
| Heater type | Electric |
| Watts (W) | 2800 |
| Current (A) | 10,5 |
| Volts (V) | 208-240 |
| Frequency (Hz) | 60 |
| Power cord length (cm) | 145.0 |
| Capacity | 4.0 |
| Plug type | 240V-3 prong |
| Buttons | white |
| Adjustable feet | Yes - all |
| Dial | white |
| Maximum adjustability feet (mm) | 15 |
| Door ring | White |
| Depth with open door 90 degree (mm) | 1105 |
| Height of the packed product (mm) | 880 |
| Width of the packed product (mm) | 620 |
| Power cord included | Yes |
| Depth of the packed product (mm) | 675 |
| Net weight (kg) | 42.6 |
| Power Cord Length | 63" |
| Gross weight (kg) | 43.4 |
| Delicates | Yes |
| Product packaging dimensions (HxWxD) | 34.64 x 24.40 x 26.57 |
| Overall appliance dimensions (HxWxD) | 33 1/4" x 23 1/2" x 25" |
| Capacity cotton (kg) - NEW (2010/30/EC) | 7.0 |
| Silence level (dBA) | 67 |
| Extended wrinkleblock | Yes |
| Highlights | autoDry |
| Capacity cotton (kg) | 7 |
| Automatic programmes | Yes |
| Moisture monitoring system | Autom thr electr damp detect |
| Drying time selector | No |
| Adjustable drying temperature | Yes |
| Reverse tumble action | No |
| Interior light | No |
| Vent hose | No |
| Vent hose length (cm) | 200.0 |
| Status indicator | LED-Display |
| Digital countdown indicator | Yes |
| Jeans | No |
| Start delay options | Continuous |
| Stop delay or a start delay option | Stop |
| Stop delay time max. | 24 |
| Blocked filter indicator | Yes |
| Full tank indicator | Yes |
| Length outlet hose | 78.74 |
| Exhaust water pipe | Yes |
| Quick dry | No |
| List of programmes | Additional programs, Drying program whites/colors, Numb. drying prog. easy-care |
| Cycle Options | 40min warm, Allergy Plus / Hygiene, Delicates, Heavy Load, Jeans, Super 40, Time program cold, Time program warm, towels, Woollens finish |
| Delicates cycle | Gentle |
| End of cycle sound | Acoustic, LED-display |
| Drum volume (l) | 112 |
| Tub Material | Stainless steel |
| Software update | No |
| Optional accessories | WMZ20600, WTZ11400UC, WTZ20410UC, WTZPA20UC, WTZPA30US, WTZPW20D, WTZSB30UC |
| Additional Image 1 | https://media3.bsh-group.com/Product_Shots/3000x3000/16895592_Bosch-RNA-Laundry-Measurement-Guide-300S-Pair-Stacked_def.jpg |
| Additional Image 2 | https://media3.bsh-group.com/Product_Shots/3000x3000/16895610_Bosch-RNA-Laundry-Measurement-Guide-300S-Pair-SBS_def.jpg |
| Signal | Yes |

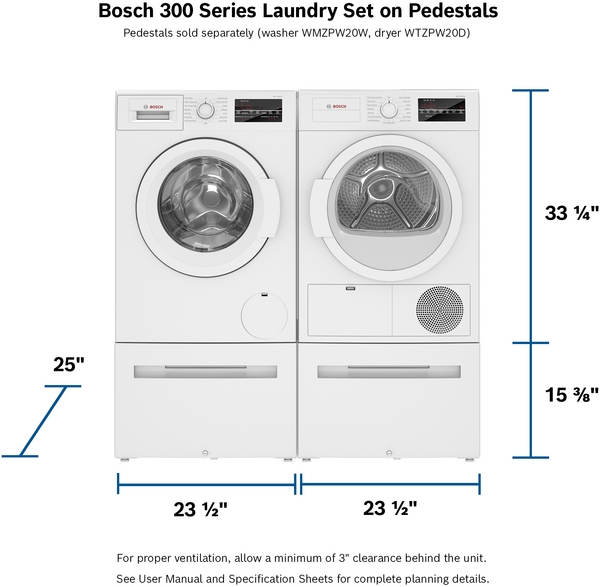

| Additional Image 3 | https://media3.bsh-group.com/Product_Shots/3000x3000/16895599_Bosch-RNA-Laundry-Measurement-Guide-300S-Pair-SBS-Pedestals_def.jpg |
| Stackability | Yes |
| Additional Image 4 | https://media3.bsh-group.com/Product_Shots/3000x3000/16366034_Bosch-RNA-Dryer-WTG86403UC-Control-Panel_PGA3_def.jpg |
| Additional Image 5 | https://media3.bsh-group.com/Product_Shots/3000x3000/16366720_Bosch-RNA-Dryer-WTG86403UC-Left-Facing_PGA2_def.jpg |

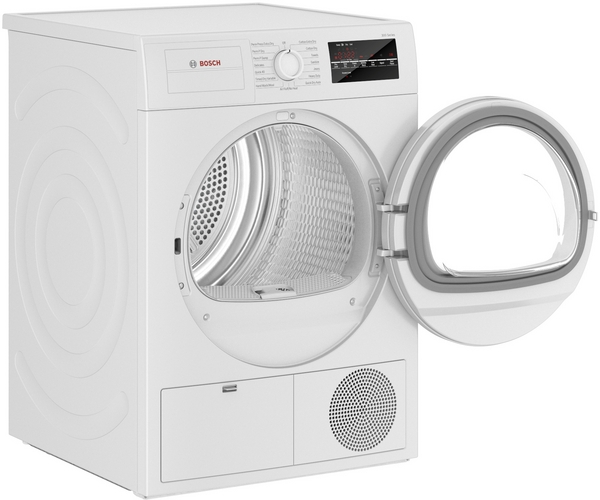

| Additional Image 6 | https://media3.bsh-group.com/Product_Shots/3000x3000/16449164_Bosch-RNA-WTG86403UC-Door-Open-Angled_PGA3_def.jpg |
| Additional Image 7 | https://media3.bsh-group.com/Product_Shots/3000x3000/16366721_Bosch-RNA-Dryer-WTG86403UC-Right-Facing_PGA4_def.jpg |
| Timed Dry | No |
| UPC code | 825225963042 |
| Gross weight | 96.000 |
| Net weight | 94.000 |
